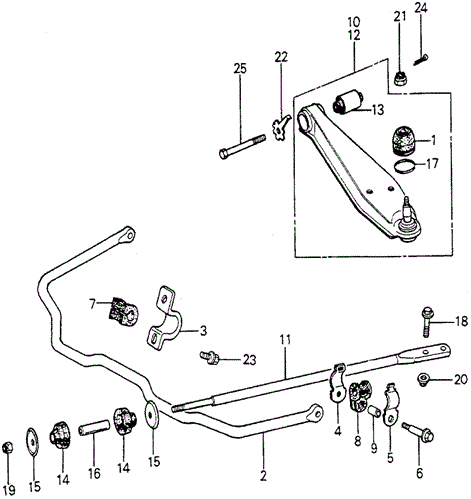

ARM, L. FR. (LOWER) in CHASSIS/FRONT LOWER ARM - STABILIZER for 1981 Honda ACCORD SEDAN

ARM, L. FR. (LOWER) in CHASSIS/FRONT LOWER ARM - STABILIZER for 1981 Honda ACCORD SEDAN #1
10
  • ARM, R. FR. (LOWER)
12
  • ARM, L. FR. (LOWER)
5
  • BAND C, STABILIZER HOLD
25
  • BOLT, HEX. (10X80)
11
  • ROD, FR. RADIUS
9
  • COLLAR, STABILIZER HOLD BUSH
3
  • BAND A, STABILIZER HOLD
15
  • WASHER, FR. RADIUS ROD
6
  • BOLT, STABILIZER HOLD
20
  • NUT, SELF-LOCK (10MM) - $0.34
8
  • BUSH B, STABILIZER HOLD
13
  • BUSH, ARM (LOWER) - $17.47
14
  • BUSH, FR. RADIUS ROD (HOKUSHIN) - $5.77
16
  • COLLAR, RADIUS ROD
18
  • BOLT, FR. RADIUS ROD
7
  • BUSH A, STABILIZER HOLD
1
  • BOOT, SUSPENSION BALL
21
  • NUT, CASTLE (12MM)
24
  • PIN, SPLIT (3.0X18) - $0.40
2
  • SPRING, STABILIZER (NIPPON HATSUJO)
  • SPRING, STABILIZER (CHUO HATSUJO)
17
  • CIRCLIP (CHUO HATSUJO)
22
  • WASHER, LOCK - $2.52
14
  • BUSH, FR. RADIUS ROD (HOKUSHIN) - $5.77
4
  • BAND B, STABILIZER HOLD
15
  • WASHER, FR. RADIUS ROD
19
  • NUT, SELF-LOCK (12MM)
23
  • BOLT-WASHER (8X16) - $0.76
No. Part # Part # / Description Qty Req. List Price Price
1 51225-671-003 51225-671-003 / BOOT, SUSPENSION BALL

2 - -
2 51300-671-003 51300-671-003 / SPRING, STABILIZER (NIPPON HATSUJO)

1 - -
2 51300-671-003 51300-671-003 / SPRING, STABILIZER (CHUO HATSUJO)

1 - -
3 51307-671-010 51307-671-010 / BAND A, STABILIZER HOLD

2 - -
4 51308-671-000 51308-671-000 / BAND B, STABILIZER HOLD

2 - -
5 51309-671-000 51309-671-000 / BAND C, STABILIZER HOLD

2 - -
6 51314-671-010 51314-671-010 / BOLT, STABILIZER HOLD

2 - -
7 51315-671-000 51315-671-000 / BUSH A, STABILIZER HOLD

2 - -
8 51316-671-000 51316-671-000 / BUSH B, STABILIZER HOLD

2 - -
9 51321-671-000 51321-671-000 / COLLAR, STABILIZER HOLD BUSH

2 - -
10 51350-671-405 51350-671-405 / ARM, R. FR. (LOWER)

1 - -
11 51352-671-000 51352-671-000 / ROD, FR. RADIUS

2 - -
12 51360-671-405 51360-671-405 / ARM, L. FR. (LOWER)

1 - -
13 51392-671-000 51392-671-000 / BUSH, ARM (LOWER)

2 $24.27 $17.47
14 51395-SH3-003 51395-SH3-003 / BUSH, FR. RADIUS ROD (HOKUSHIN)

4 $8.02 $5.77
15 90501-692-000 90501-692-000 / WASHER, FR. RADIUS ROD

4 - -
16 51398-671-000 51398-671-000 / COLLAR, RADIUS ROD

2 - -
17 53548-611-003 53548-611-003 / CIRCLIP (CHUO HATSUJO)

2 - -
18 90119-671-000 90119-671-000 / BOLT, FR. RADIUS ROD

4 - -
19 90006-SA7-505 90006-SA7-505 / NUT, SELF-LOCK (12MM)

2 - -
20 90212-671-005 90212-671-005 / NUT, SELF-LOCK (10MM)

4 $0.47 $0.34
21 90307-692-000 90307-692-000 / NUT, CASTLE (12MM)

2 - -
22 90403-671-000 90403-671-000 / WASHER, LOCK

2 $3.50 $2.52
23 93402-08016-08 93402-08016-08 / BOLT-WASHER (8X16)

4 $1.05 $0.76
24 94201-30180 94201-30180 / PIN, SPLIT (3.0X18)

2 $0.55 $0.40
25 95600-10080-08 95600-10080-08 / BOLT, HEX. (10X80)

2 - -
