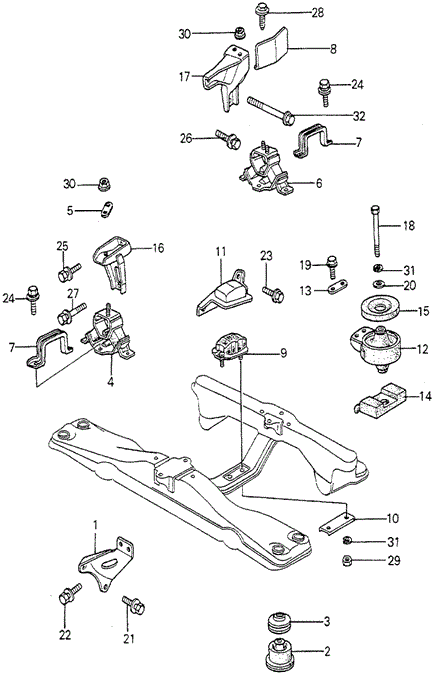

RUBBER, FR. ENGINE MOUNTING in BODY / AIR CONDITIONING/ENGINE MOUNT for 1981 Honda ACCORD SEDAN

RUBBER, FR. ENGINE MOUNTING in BODY / AIR CONDITIONING/ENGINE MOUNT for 1981 Honda ACCORD SEDAN #1
15
  • BUFFER, SIDE MOUNTING (UPPER)
29
  • NUT, HEX. (10MM) - $0.59
30
  • NUT-WASHER (8MM) - $0.31
24
  • BOLT-WASHER (8X20) - $0.76
32
  • BOLT, FLANGE (10X65) - $1.30
17
  • BRACKET, RR. ENGINE MOUNTING
3
  • INSULATOR B, SUB-FRAME MOUNTING
20
  • WASHER, EX. MANIFOLD - $2.23
16
  • BRACKET, FR. ENGINE MOUNTING
31
  • WASHER, SPRING (10MM) - $0.46
5
  • WASHER, FR. MOUNTING
10
  • PLATE, WIND STOPPER
11
  • BRACKET, WIND STOPPER
4
  • RUBBER, FR. ENGINE MOUNTING
28
  • BOLT-WASHER (8X20) - $0.82
8
  • INSULATOR, RR. HEAT SETTING
25
  • BOLT-WASHER (10X20) - $0.86
2
  • INSULATOR A, SUB-FRAME MOUNTING - $17.42
23
  • BOLT-WASHER (8X16) - $0.76
26
  • BOLT-WASHER (10X25) - $0.94
24
  • BOLT-WASHER (8X20) - $0.76
19
  • BOLT, HEX. (8X20)
7
  • STOPPER, ENGINE MOUNTING
13
  • WASHER B, MOUNTING RUBBER
31
  • WASHER, SPRING (10MM) - $0.46
27
  • BOLT-WASHER (10X32) - $0.96
6
  • RUBBER, RR. ENGINE MOUNTING
14
  • BUFFER, SIDE MOUNTING
18
  • BOLT B, SHACKLE (10X90)
30
  • NUT-WASHER (8MM) - $0.31
21
  • BOLT-WASHER (10X25) - $0.94
9
  • RUBBER, WIND STOPPER - $21.68
1
  • STIFFENER, ENGINE
12
  • RUBBER, ENGINE SIDE MOUNTING
  • RUBBER, ENGINE SIDE MOUNTING
22
  • BOLT-WASHER (10X32)
7
  • STOPPER, ENGINE MOUNTING
No. Part # Part # / Description Qty Req. List Price Price
1 11950-PB2-000 11950-PB2-000 / STIFFENER, ENGINE

1 - -
2 50230-689-000 50230-689-000 / INSULATOR A, SUB-FRAME MOUNTING

8 $24.20 $17.42
3 50231-689-000 50231-689-000 / INSULATOR B, SUB-FRAME MOUNTING

8 - -
4 50805-671-981 50805-671-981 / RUBBER, FR. ENGINE MOUNTING

1 - -
5 50806-671-000 50806-671-000 / WASHER, FR. MOUNTING

1 - -
6 50810-671-980 50810-671-980 / RUBBER, RR. ENGINE MOUNTING

1 - -
7 50811-671-000 50811-671-000 / STOPPER, ENGINE MOUNTING

2 - -
8 50812-671-000 50812-671-000 / INSULATOR, RR. HEAT SETTING

1 - -
9 50815-671-020 50815-671-020 / RUBBER, WIND STOPPER

1 $30.12 $21.68
10 50816-659-010 50816-659-010 / PLATE, WIND STOPPER

1 - -
11 50820-672-010 50820-672-010 / BRACKET, WIND STOPPER

1 - -
12 50821-671-010 50821-671-010 / RUBBER, ENGINE SIDE MOUNTING

1 - -
12 50821-671-010 50821-671-010 / RUBBER, ENGINE SIDE MOUNTING

0 - -
13 50822-634-940 50822-634-940 / WASHER B, MOUNTING RUBBER

1 - -
14 50823-671-010 50823-671-010 / BUFFER, SIDE MOUNTING

1 - -
15 50824-671-010 50824-671-010 / BUFFER, SIDE MOUNTING (UPPER)

1 - -
16 50825-671-010 50825-671-010 / BRACKET, FR. ENGINE MOUNTING

1 - -
17 50827-689-000 50827-689-000 / BRACKET, RR. ENGINE MOUNTING

1 - -
18 90104-567-010 90104-567-010 / BOLT B, SHACKLE (10X90)

1 - -
19 90116-634-940 90116-634-940 / BOLT, HEX. (8X20)

2 - -
20 90501-579-020 90501-579-020 / WASHER, EX. MANIFOLD

1 $3.10 $2.23
26 93402-10025-08 93402-10025-08 / BOLT-WASHER (10X25)

2 $1.30 $0.94
22 93482-10032-08 93482-10032-08 / BOLT-WASHER (10X32)

2 - -
23 93402-08016-08 93402-08016-08 / BOLT-WASHER (8X16)

3 $1.05 $0.76
24 93402-08020-08 93402-08020-08 / BOLT-WASHER (8X20)

8 $1.05 $0.76
25 93402-10020-08 93402-10020-08 / BOLT-WASHER (10X20)

2 $1.20 $0.86
27 93403-10032-08 93403-10032-08 / BOLT-WASHER (10X32)

1 $1.33 $0.96
28 93403-08020-08 93403-08020-08 / BOLT-WASHER (8X20)

1 $1.13 $0.82
29 94001-10080-0S 94001-10080-0S / NUT, HEX. (10MM)

2 $0.82 $0.59
30 94070-08080 94070-08080 / NUT-WASHER (8MM)

4 $0.43 $0.31
31 94111-10800 94111-10800 / WASHER, SPRING (10MM)

3 $0.63 $0.46
32 95701-10065-08 95701-10065-08 / BOLT, FLANGE (10X65)

1 $1.80 $1.30
