CARBURETOR ASSY. in ENGINE/CARBURETOR (3) for 1981 Honda ACCORD HATCHBACK

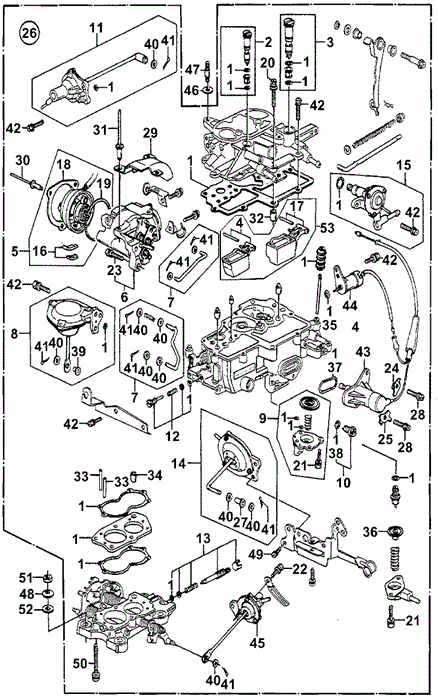

CARBURETOR ASSY. in ENGINE/CARBURETOR (3) for 1981 Honda ACCORD HATCHBACK #1
51
  • NUT, HEX. (8MM) - $0.50
1
  • GASKET SET, CARBURETOR
40
  • WASHER, PLAIN (4MM)
1
  • GASKET SET, CARBURETOR
10
  • PLUG SET, SUB-MAIN JET
15
  • DIAPHRAGM SET, CUT-OFF
40
  • WASHER, PLAIN (4MM)
9
  • DIAPHRAGM SET, PUMP - $27.26
24
  • WASHER, MAIN JET COVER
35
  • O-RING (5.8X1.9) - $2.24
40
  • WASHER, PLAIN (4MM)
13
  • SCREW SET A
38
  • O-RING (10.6X1.3) - $1.52
  • O-RING,1.3X10.6 - $1.52
41
  • PIN, SPLIT - $1.75
1
  • GASKET SET, CARBURETOR
41
  • PIN, SPLIT - $1.75
45
  • DIAPHRAGM ASSY.
29
  • COVER, CHOKE
14
  • OPENER SET, THROTTLE
42
  • BOLT-WASHER (5X20)
40
  • WASHER, PLAIN (4MM)
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
42
  • BOLT-WASHER (5X20)
7
  • ROD SET - $12.44
42
  • BOLT-WASHER (5X20)
16
  • GEAR SET, CHOKE CAP
1
  • GASKET SET, CARBURETOR
27
  • COLLAR
21
  • BOLT, WASHER (5X16)
50
  • SCREW-WASHER (6X40)
1
  • GASKET SET, CARBURETOR
41
  • PIN, SPLIT - $1.75
49
  • SCREW-WASHER (5X10) - $0.49
1
  • GASKET SET, CARBURETOR
11
  • DIAPHRAGM SET, CHOKE
17
  • FLOAT SET, B
  • FLOAT SET, B
  • FLOAT SET
23
  • BOLT-WASHER (5X25)
28
  • BOLT-WASHER (6X20)
52
  • WASHER, PLAIN (8MM) - $0.79
41
  • PIN, SPLIT - $1.75
40
  • WASHER, PLAIN (4MM)
26
  • CARBURETOR ASSY.
  • CARBURETOR ASSY. - $1,043.53
  • CARBURETOR ASSY.
43
  • VALVE ASSY., SOLENOID
1
  • GASKET SET, CARBURETOR
41
  • PIN, SPLIT - $1.75
40
  • WASHER, PLAIN (4MM)
32
  • PIN, DOWEL
1
  • GASKET SET, CARBURETOR
37
  • O-RING, MAIN JET COVER
40
  • WASHER, PLAIN (4MM)
31
  • RIVET
28
  • BOLT-WASHER (6X20)
20
  • BOLT-WASHER (5X25)
41
  • PIN, SPLIT - $1.75
40
  • WASHER, PLAIN (4MM)
25
  • WASHER, MAIN JET COVER
44
  • VALVE, FUEL MAGNETIC
5
  • CAP SET, CHOKE
1
  • GASKET SET, CARBURETOR
8
  • DIAPHRAGM SET
2
  • VALVE SET A, FLOAT
42
  • BOLT-WASHER (5X20)
1
  • GASKET SET, CARBURETOR
39
  • COLLAR - $1.49
6
  • CASE SET, BIMETAL
  • CASE SET, BIMETAL
  • CASE SET, BIMETAL
18
  • PLATE, SETTING
1
  • GASKET SET, CARBURETOR
12
  • SCREW SET B - $8.29
3
  • VALVE SET B, FLOAT
42
  • BOLT-WASHER (5X20)
42
  • BOLT-WASHER (5X20)
41
  • PIN, SPLIT - $1.75
7
  • ROD SET - $12.44
36
  • DIAPHRAGM
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
33
  • PIN, KNOCK
48
  • WASHER, SPRING (8MM)
21
  • BOLT, WASHER (5X16)
41
  • PIN, SPLIT - $1.75
19
  • GASKET, CHOKE CAP - $1.50
4
  • FLOAT SET
  • FLOAT SET, B
  • FLOAT SET, B
  • FLOAT SET, A
  • FLOAT SET, A
33
  • PIN, KNOCK
40
  • WASHER, PLAIN (4MM)
1
  • GASKET SET, CARBURETOR
30
  • RIVET
47
  • BOLT, AIR CLEANER HOUSING STUD
46
  • WASHER, SEAT MOUNTING - $1.52
53
  • FLOAT SET
22
  • BOLT-WASHER (5X10)
34
  • PIN, DOWEL
No. Part # Part # / Description Qty Req. List Price Price
1 16010-689-663 16010-689-663 / GASKET SET, CARBURETOR

1 - -
2 16011-PA0-005 16011-PA0-005 / VALVE SET A, FLOAT

1 - -
3 16012-PA5-005 16012-PA5-005 / VALVE SET B, FLOAT

1 - -
53 16000-PA0-015 16000-PA0-015 / FLOAT SET

1 - -
17 16000-PA0-015 16000-PA0-015 / FLOAT SET, B

1 - -
17 16000-PA0-015 16000-PA0-015 / FLOAT SET, B

1 - -
4 16000-PA0-015 16000-PA0-015 / FLOAT SET, A

1 - -
4 16000-PA0-015 16000-PA0-015 / FLOAT SET, A

1 - -
5 16014-PB2-692 16014-PB2-692 / CAP SET, CHOKE

1 - -
6 16015-PB2-661 16015-PB2-661 / CASE SET, BIMETAL

1 - -
6 16015-PB2-692 16015-PB2-692 / CASE SET, BIMETAL

1 - -
6 16015-PB2-841 16015-PB2-841 / CASE SET, BIMETAL

1 - -
7 16017-PA0-671 16017-PA0-671 / ROD SET

1 $17.28 $12.44
8 16020-PB2-691 16020-PB2-691 / DIAPHRAGM SET

1 - -
9 16021-PA0-005 16021-PA0-005 / DIAPHRAGM SET, PUMP

1 $37.87 $27.26
10 16024-657-015 16024-657-015 / PLUG SET, SUB-MAIN JET

1 - -
11 16026-PB2-691 16026-PB2-691 / DIAPHRAGM SET, CHOKE

1 - -
12 16028-PA6-661 16028-PA6-661 / SCREW SET B

1 $11.52 $8.29
13 16029-PB2-691 16029-PB2-691 / SCREW SET A

1 - -
14 16043-PA0-005 16043-PA0-005 / OPENER SET, THROTTLE

1 - -
15 16044-PA0-671 16044-PA0-671 / DIAPHRAGM SET, CUT-OFF

1 - -
16 16045-PA6-661 16045-PA6-661 / GEAR SET, CHOKE CAP

1 - -
18 16066-PA6-661 16066-PA6-661 / PLATE, SETTING

1 - -
19 16077-671-005 16077-671-005 / GASKET, CHOKE CAP

1 $2.08 $1.50
20 16080-657-005 16080-657-005 / BOLT-WASHER (5X25)

2 - -
21 16081-657-005 16081-657-005 / BOLT, WASHER (5X16)

5 - -
22 16082-PA0-005 16082-PA0-005 / BOLT-WASHER (5X10)

1 - -
23 16083-PA0-005 16083-PA0-005 / BOLT-WASHER (5X25)

2 - -
24 16090-695-005 16090-695-005 / WASHER, MAIN JET COVER

1 - -
25 16091-695-005 16091-695-005 / WASHER, MAIN JET COVER

1 - -
26 16100-PB2-672 16100-PB2-672 / CARBURETOR ASSY.

1 - -
26 16100-PB2-851 16100-PB2-851 / CARBURETOR ASSY.

1 $1,449.35 $1,043.53
26 16100-PB2-693 16100-PB2-693 / CARBURETOR ASSY.

1 - -
27 16131-657-300 16131-657-300 / COLLAR

1 - -
28 16132-657-300 16132-657-300 / BOLT-WASHER (6X20)

2 - -
29 16147-PB2-691 16147-PB2-691 / COVER, CHOKE

1 - -
30 16158-PB2-691 16158-PB2-691 / RIVET

3 - -
31 16159-PB2-691 16159-PB2-691 / RIVET

3 - -
32 16172-657-015 16172-657-015 / PIN, DOWEL

2 - -
33 16173-657-005 16173-657-005 / PIN, KNOCK

2 - -
34 16174-657-005 16174-657-005 / PIN, DOWEL

1 - -
35 16178-548-004 16178-548-004 / O-RING (5.8X1.9)

1 $3.12 $2.24
36 16191-PA6-661 16191-PA6-661 / DIAPHRAGM

1 - -
37 16192-695-005 16192-695-005 / O-RING, MAIN JET COVER

1 - -
38 16075-GHB-720 16075-GHB-720 / O-RING (10.6X1.3)

1 $2.12 $1.52
38 16075-GHB-720 16075-GHB-720 / O-RING,1.3X10.6

1 $2.12 $1.52
39 16202-657-300 16202-657-300 / COLLAR

1 $2.07 $1.49
40 16203-657-300 16203-657-300 / WASHER, PLAIN (4MM)

11 - -
41 16204-657-300 16204-657-300 / PIN, SPLIT

10 $2.43 $1.75
42 16084-PE0-921 16084-PE0-921 / BOLT-WASHER (5X20)

18 - -
43 16208-PC2-015 16208-PC2-015 / VALVE ASSY., SOLENOID

1 - -
44 16230-PA5-015 16230-PA5-015 / VALVE, FUEL MAGNETIC

1 - -
45 38781-PA0-300 38781-PA0-300 / DIAPHRAGM ASSY.

1 - -
46 77302-124-000 77302-124-000 / WASHER, SEAT MOUNTING

4 $2.12 $1.52
47 90034-PA0-000 90034-PA0-000 / BOLT, AIR CLEANER HOUSING STUD

2 - -
48 90409-657-000 90409-657-000 / WASHER, SPRING (8MM)

4 - -
49 93892-05010-08 93892-05010-08 / SCREW-WASHER (5X10)

2 $0.68 $0.49
50 93892-06040-08 93892-06040-08 / SCREW-WASHER (6X40)

5 - -
51 94002-08000-0S 94002-08000-0S / NUT, HEX. (8MM)

4 $0.70 $0.50
52 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

4 $1.10 $0.79
54 06161-PA6-003 06161-PA6-003 / GASKET KIT, CARBURETOR ON-CAR

1 - -
