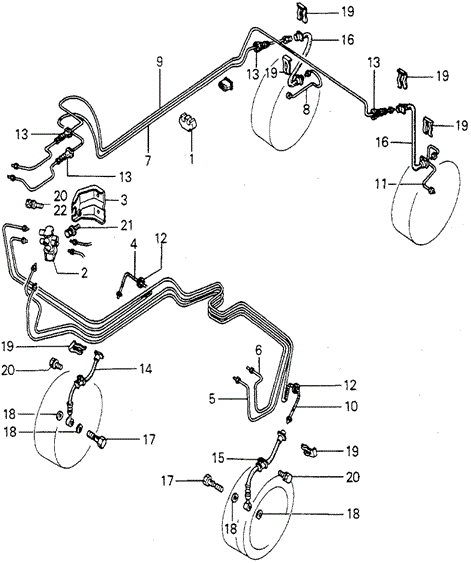

VALVE ASSY., PROPORTIONING in CHASSIS/BRAKE LINE for 1981 Honda ACCORD HATCHBACK

VALVE ASSY., PROPORTIONING in CHASSIS/BRAKE LINE for 1981 Honda ACCORD HATCHBACK #1
17
  • BOLT, OIL - $3.97
5
  • PIPE B, BRAKE
15
  • HOSE, L. FR. BRAKE (TOYODA)
  • HOSE, L. FR. BRAKE (NICHIRIN)
13
  • GROMMET, BRAKE PIPE
13
  • GROMMET, BRAKE PIPE
20
  • BOLT-WASHER (6X16) - $0.64
18
  • WASHER, OIL BOLT - $1.87
  • GASKET, OIL BOLT - $2.27
4
  • PIPE A, BRAKE
19
  • CLIP, BRAKE HOSE - $3.30
16
  • HOSE, RR. BRAKE (MEIJI)
  • HOSE, RR. BRAKE (TOYODA)
  • HOSE, RR. BRAKE (NICHIRIN)
  • HOSE, RR. BRAKE (MEIJI)
10
  • PIPE F, BRAKE
19
  • CLIP, BRAKE HOSE - $3.30
17
  • BOLT, OIL - $3.97
16
  • HOSE, RR. BRAKE (MEIJI)
  • HOSE, RR. BRAKE (TOYODA)
  • HOSE, RR. BRAKE (NICHIRIN)
  • HOSE, RR. BRAKE (MEIJI)
19
  • CLIP, BRAKE HOSE - $3.30
13
  • GROMMET, BRAKE PIPE
9
  • PIPE D, BRAKE
6
  • PIPE H, BRAKE
11
  • PIPE E, L. BRAKE
18
  • WASHER, OIL BOLT - $1.87
  • GASKET, OIL BOLT - $2.27
18
  • WASHER, OIL BOLT - $1.87
  • GASKET, OIL BOLT - $2.27
20
  • BOLT-WASHER (6X16) - $0.64
19
  • CLIP, BRAKE HOSE - $3.30
7
  • PIPE C, BRAKE
12
  • GROMMET A, BRAKE PIPE
22
  • BOLT-WASHER (8X45) - $0.62
12
  • GROMMET A, BRAKE PIPE
3
  • BRACKET, DUAL
1
  • RUBBER, PIPE PROTECTOR
14
  • HOSE, R. FR. BRAKE (NICHIRIN)
  • HOSE, R. FR. BRAKE (TOYODA)
18
  • WASHER, OIL BOLT - $1.87
  • GASKET, OIL BOLT - $2.27
8
  • PIPE E, R. BRAKE
20
  • BOLT-WASHER (6X16) - $0.64
19
  • CLIP, BRAKE HOSE - $3.30
2
  • VALVE ASSY., PROPORTIONING
19
  • CLIP, BRAKE HOSE - $3.30
13
  • GROMMET, BRAKE PIPE
No. Part # Part # / Description Qty Req. List Price Price
1 17705-671-010 17705-671-010 / RUBBER, PIPE PROTECTOR

4 - -
2 46210-692-003 46210-692-003 / VALVE ASSY., PROPORTIONING

1 - -
3 46215-689-000 46215-689-000 / BRACKET, DUAL

1 - -
4 46310-671-601 46310-671-601 / PIPE A, BRAKE

1 - -
5 46320-689-671 46320-689-671 / PIPE B, BRAKE

1 - -
6 46321-689-671 46321-689-671 / PIPE H, BRAKE

1 - -
7 46330-671-620 46330-671-620 / PIPE C, BRAKE

1 - -
8 46331-671-620 46331-671-620 / PIPE E, R. BRAKE

1 - -
9 46340-671-620 46340-671-620 / PIPE D, BRAKE

1 - -
10 46360-671-621 46360-671-621 / PIPE F, BRAKE

1 - -
11 46361-671-620 46361-671-620 / PIPE E, L. BRAKE

1 - -
12 46380-579-300 46380-579-300 / GROMMET A, BRAKE PIPE

2 - -
13 46381-594-300 46381-594-300 / GROMMET, BRAKE PIPE

4 - -
14 46410-671-023 46410-671-023 / HOSE, R. FR. BRAKE (NICHIRIN)

1 - -
14 46410-671-023 46410-671-023 / HOSE, R. FR. BRAKE (TOYODA)

1 - -
15 46414-671-023 46414-671-023 / HOSE, L. FR. BRAKE (TOYODA)

1 - -
15 46414-671-023 46414-671-023 / HOSE, L. FR. BRAKE (NICHIRIN)

1 - -
16 46430-671-003 46430-671-003 / HOSE, RR. BRAKE (MEIJI)

2 - -
16 46430-671-003 46430-671-003 / HOSE, RR. BRAKE (TOYODA)

2 - -
16 46430-671-003 46430-671-003 / HOSE, RR. BRAKE (NICHIRIN)

2 - -
16 46430-671-003 46430-671-003 / HOSE, RR. BRAKE (MEIJI)

2 - -
17 46462-SE0-000 46462-SE0-000 / BOLT, OIL

2 $5.52 $3.97
18 90545-300-000 90545-300-000 / WASHER, OIL BOLT

4 $2.60 $1.87
18 46472-568-000 46472-568-000 / GASKET, OIL BOLT

4 $3.15 $2.27
19 90651-538-000 90651-538-000 / CLIP, BRAKE HOSE

6 $4.58 $3.30
20 93402-06016-08 93402-06016-08 / BOLT-WASHER (6X16)

2 $0.88 $0.64
22 93402-08045-08 93402-08045-08 / BOLT-WASHER (8X45)

1 $0.87 $0.62
