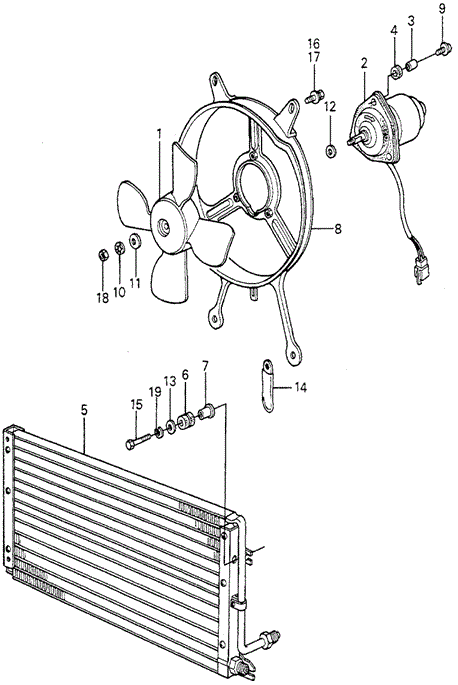

CONDENSER ASSY. in BODY / AIR CONDITIONING/A/C AIR CONDITIONER (CONDENSER) for 1981 Honda ACCORD HATCHBACK

CONDENSER ASSY. in BODY / AIR CONDITIONING/A/C AIR CONDITIONER (CONDENSER) for 1981 Honda ACCORD HATCHBACK #1
14
  • CLIP, WIRE - $3.86
10
  • WASHER, SPRING (5MM)
1
  • FAN, COOLING
  • FAN, COOLING
18
  • NUT, HEX. (5MM) - $0.42
3
  • COLLAR (DENSO)
  • BUSH (DENSO)
8
  • SHROUD
  • SHROUD
13
  • WASHER, SPECIAL (6MM) - $1.82
12
  • WASHER, SPECIAL - $1.88
7
  • COLLAR, DISTANCE
  • COLLAR, DISTANCE
19
  • WASHER, SPRING (6MM) - $0.41
9
  • SCREW-WASHER (4x18) (DENSO)
5
  • CONDENSER ASSY. - $168.38
  • CONDENSER ASSY. - $168.38
4
  • RUBBER, BUSHING - $18.77
16
  • BOLT-WASHER (6X12) - $0.67
6
  • RUBBER, MOUNTING
  • RUBBER, MOUNTING
11
  • WASHER, PLAIN (5MM) - $0.38
2
  • MOTOR, FAN - $153.62
  • MOTOR, FAN - $153.62
15
  • BOLT, HEX. (6X25)
17
  • BOLT-WASHER (6X20) - $0.73
No. Part # Part # / Description Qty Req. List Price Price
1 N022770-0050 N022770-0050 / FAN, COOLING

1 - -
1 N022770-0050 N022770-0050 / FAN, COOLING

1 - -
2 N062500-2520 N062500-2520 / MOTOR, FAN

1 $213.37 $153.62
2 N062500-2520 N062500-2520 / MOTOR, FAN

1 $213.37 $153.62
3 N949194-0040 N949194-0040 / COLLAR (DENSO)

3 - -
3 N949194-0040 N949194-0040 / BUSH (DENSO)

3 - -
4 19041-611-003 19041-611-003 / RUBBER, BUSHING

3 $26.07 $18.77
5 N0477-001-760 N0477-001-760 / CONDENSER ASSY.

1 $233.86 $168.38
5 N0477-001-760 N0477-001-760 / CONDENSER ASSY.

1 $233.86 $168.38
6 N949197-0580 N949197-0580 / RUBBER, MOUNTING

4 - -
6 N949197-0580 N949197-0580 / RUBBER, MOUNTING

4 - -
7 N949192-4370 N949192-4370 / COLLAR, DISTANCE

4 - -
7 N949192-4370 N949192-4370 / COLLAR, DISTANCE

4 - -
8 N146240-1260 N146240-1260 / SHROUD

1 - -
8 N146240-1260 N146240-1260 / SHROUD

1 - -
9 90041-679-003 90041-679-003 / SCREW-WASHER (4x18) (DENSO)

3 - -
10 90401-679-003 90401-679-003 / WASHER, SPRING (5MM)

1 - -
11 94103-05800 94103-05800 / WASHER, PLAIN (5MM)

1 $0.53 $0.38
12 90501-671-003 90501-671-003 / WASHER, SPECIAL

1 $2.62 $1.88
13 90438-671-000 90438-671-000 / WASHER, SPECIAL (6MM)

2 $2.53 $1.82
14 91405-671-000 91405-671-000 / CLIP, WIRE

2 $5.37 $3.86
15 92101-06025-0G 92101-06025-0G / BOLT, HEX. (6X25)

4 - -
16 93403-06012-08 93403-06012-08 / BOLT-WASHER (6X12)

3 $0.93 $0.67
17 93403-06020-08 93403-06020-08 / BOLT-WASHER (6X20)

1 $1.02 $0.73
18 94001-05080-0S 94001-05080-0S / NUT, HEX. (5MM)

1 $0.58 $0.42
19 94111-06700 94111-06700 / WASHER, SPRING (6MM)

2 $0.57 $0.41
