Find Auto Parts

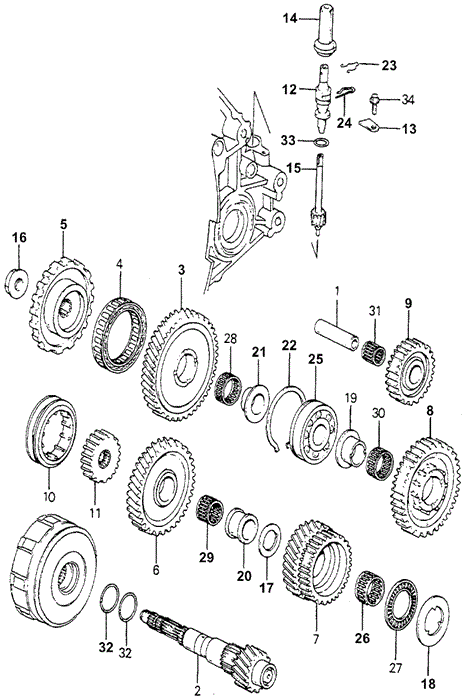

COUNTERSHAFT in TRANSMISSION - HONDAMATIC/HMT COUNTERSHAFT (2) for 1980 Honda ACCORD HATCHBACK

COUNTERSHAFT in TRANSMISSION - HONDAMATIC/HMT COUNTERSHAFT (2) for 1980 Honda ACCORD HATCHBACK #1
16
  • NUT, HEX. (20MM) - $7.38
26
  • BEARING, NEEDLE (32X38X20) (NTN) - $15.50
32
  • O-RING (31.2X1.9) (ARAI) - $1.93
29
  • BEARING, NEEDLE (28X33X20) (NTN) - $12.52
8
  • GEAR, COUNTERSHAFT REVERSE
10
  • GEAR, REVERSE SELECTOR
11
  • HUB, REVERSE GEAR - $21.68
22
  • RING, SNAP (62MM) - $4.33
30
  • BEARING, NEEDLE (30X36X14) (TOYO)
5
  • GEAR, PARKING - $33.32
31
  • BEARING, NEEDLE (14X18X15) (NTN) - $11.72
17
  • WASHER, THRUST (28X45X2.60)
  • WASHER, THRUST (28X45X2.50)
  • WASHER, THRUST (28X45X2.40)
21
  • COLLAR, LOW GEAR - $13.15
25
  • BEARING, BALL (6305) (NTN) - $23.15
2
  • COUNTERSHAFT
20
  • COLLAR, DISTANCE (28MM)
4
  • CLUTCH ASSY., ONE-WAY - $98.58
19
  • COLLAR, REVERSE GEAR
18
  • WASHER, SPLINE (35X50X3.10) - $8.38
  • WASHER, SPLINE (35X50X3.00) - $8.38
  • WASHER, SPLINE (35X50X3.20) - $8.83
  • WASHER, SPLINE (35X50X3.40) - $8.38
  • WASHER, SPLINE (35X50X3.30) - $8.38
7
  • GEAR, COUNTERSHAFT THIRD
1
  • PIN, PISTON
28
  • BEARING, NEEDLE (30X35X11) (TOYO)
27
  • BEARING, THRUST NEEDLE (35X52X2) (NTN) - $13.16
32
  • O-RING (31.2X1.9) (ARAI) - $1.93
3
  • GEAR, COUNTERSHAFT LOW - $35.54
9
  • GEAR, REVERSE IDLE - $46.46
6
  • GEAR, COUNTERSHAFT SECOND
No. Part # Part # / Description Qty Req. List Price Price
1 13111-444-000 13111-444-000 / PIN, PISTON

1 - -
2 23220-PA9-020 23220-PA9-020 / COUNTERSHAFT

1 - -
3 23421-PA9-000 23421-PA9-000 / GEAR, COUNTERSHAFT LOW

1 $49.37 $35.54
4 23423-PA9-003 23423-PA9-003 / CLUTCH ASSY., ONE-WAY

1 $136.92 $98.58
5 23427-PA9-010 23427-PA9-010 / GEAR, PARKING

1 $46.28 $33.32
6 23441-PA9-000 23441-PA9-000 / GEAR, COUNTERSHAFT SECOND

1 - -
7 23451-PA9-000 23451-PA9-000 / GEAR, COUNTERSHAFT THIRD

1 - -
8 23531-PA9-000 23531-PA9-000 / GEAR, COUNTERSHAFT REVERSE

1 - -
9 23541-PA9-010 23541-PA9-010 / GEAR, REVERSE IDLE

1 $64.53 $46.46
10 23565-639-000 23565-639-000 / GEAR, REVERSE SELECTOR

1 - -
11 23566-PA9-000 23566-PA9-000 / HUB, REVERSE GEAR

1 $30.12 $21.68
16 90201-689-900 90201-689-900 / NUT, HEX. (20MM)

1 $10.25 $7.38
17 90409-PA9-000 90409-PA9-000 / WASHER, THRUST (28X45X2.60)

1 - -
17 90407-PA9-000 90407-PA9-000 / WASHER, THRUST (28X45X2.50)

1 - -
17 90403-PA9-010 90403-PA9-010 / WASHER, THRUST (28X45X2.40)

1 - -
18 90413-PA9-010 90413-PA9-010 / WASHER, SPLINE (35X50X3.10)

1 $11.63 $8.38
18 90411-PA9-010 90411-PA9-010 / WASHER, SPLINE (35X50X3.00)

1 $11.63 $8.38
18 90415-PA9-010 90415-PA9-010 / WASHER, SPLINE (35X50X3.20)

1 $12.27 $8.83
18 90421-PA9-000 90421-PA9-000 / WASHER, SPLINE (35X50X3.40)

1 $11.63 $8.38
18 90419-PA9-000 90419-PA9-000 / WASHER, SPLINE (35X50X3.30)

1 $11.63 $8.38
19 90501-PA9-000 90501-PA9-000 / COLLAR, REVERSE GEAR

1 - -
20 90503-PA9-000 90503-PA9-000 / COLLAR, DISTANCE (28MM)

1 - -
21 90505-PA9-000 90505-PA9-000 / COLLAR, LOW GEAR

1 $18.27 $13.15
22 90603-689-000 90603-689-000 / RING, SNAP (62MM)

1 $6.02 $4.33
25 91004-PA9-003 91004-PA9-003 / BEARING, BALL (6305) (NTN)

1 $32.15 $23.15
26 91011-PG4-003 91011-PG4-003 / BEARING, NEEDLE (32X38X20) (NTN)

1 $21.53 $15.50
27 91014-PA9-003 91014-PA9-003 / BEARING, THRUST NEEDLE (35X52X2) (NTN)

1 $18.28 $13.16
28 91015-PA9-003 91015-PA9-003 / BEARING, NEEDLE (30X35X11) (TOYO)

1 - -
29 91016-PA9-003 91016-PA9-003 / BEARING, NEEDLE (28X33X20) (NTN)

1 $17.38 $12.52
30 91024-PA9-003 91024-PA9-003 / BEARING, NEEDLE (30X36X14) (TOYO)

1 - -
31 91025-PJ2-003 91025-PJ2-003 / BEARING, NEEDLE (14X18X15) (NTN)

1 $16.28 $11.72
32 91307-PA9-003 91307-PA9-003 / O-RING (31.2X1.9) (ARAI)

2 $2.68 $1.93
