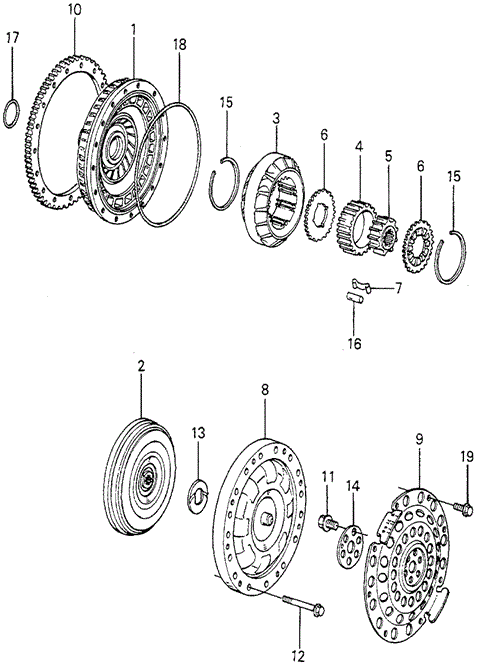

COVER, TORQUE CONVERTER in ENGINE/HMT TORQUE CONVERTER (2) for 1980 Honda ACCORD HATCHBACK

COVER, TORQUE CONVERTER in ENGINE/HMT TORQUE CONVERTER (2) for 1980 Honda ACCORD HATCHBACK #1
19
  • BOLT, FLANGE (6X12) - $0.64
  • BOLT, FLANGE (6X12) - $0.64
6
  • PLATE, STATOR SIDE
4
  • RING, STATOR - $30.52
18
  • O-RING (227x2.5) (ARAI)
3
  • STATOR
1
  • PUMP, TORQUE CONVERTER - $166.91
14
  • WASHER, SPECIAL (38X82X2)
  • WASHER, SPECIAL (40x80x2)
11
  • BOLT, HEX. (10MM)
  • BOLT, SPECIAL - $3.68
16
  • ROLLER (5X20.8)
15
  • RING, SNAP (66MM)
15
  • RING, SNAP (66MM)
17
  • O-RING (32X1.9) - $1.96
2
  • TURBINE, TORQUE CONVERTER (23 FANS)
10
  • GEAR, RING
13
  • WASHER, TORQUE CONVERTER COVER
12
  • BOLT, FLANGE (6X44.5)
  • BOLT, FLANGE (6X52.5)
6
  • PLATE, STATOR SIDE
8
  • COVER, TORQUE CONVERTER
  • COVER, TORQUE CONVERTER
5
  • CAM, TORQUE CONVERTER STATOR
9
  • PLATE, DRIVE
  • PLATE, DRIVE
7
  • SPRING, STATOR ROLLER
No. Part # Part # / Description Qty Req. List Price Price
1 26210-PA9-020 26210-PA9-020 / PUMP, TORQUE CONVERTER

1 $231.81 $166.91
2 26220-PA9-010 26220-PA9-010 / TURBINE, TORQUE CONVERTER (23 FANS)

1 - -
3 26230-PA9-900 26230-PA9-900 / STATOR

1 - -
4 26232-657-900 26232-657-900 / RING, STATOR

1 $42.38 $30.52
5 26233-657-901 26233-657-901 / CAM, TORQUE CONVERTER STATOR

1 - -
6 26234-689-901 26234-689-901 / PLATE, STATOR SIDE

2 - -
7 26237-657-901 26237-657-901 / SPRING, STATOR ROLLER

10 - -
8 26240-PA9-010 26240-PA9-010 / COVER, TORQUE CONVERTER

1 - -
8 26240-PA9-000 26240-PA9-000 / COVER, TORQUE CONVERTER

1 - -
9 26251-PA9-901 26251-PA9-901 / PLATE, DRIVE

1 - -
9 26251-PA9-000 26251-PA9-000 / PLATE, DRIVE

1 - -
10 31112-PA9-000 31112-PA9-000 / GEAR, RING

1 - -
11 90023-612-000 90023-612-000 / BOLT, HEX. (10MM)

6 - -
11 90023-PA9-000 90023-PA9-000 / BOLT, SPECIAL

6 $5.12 $3.68
12 90026-PA9-000 90026-PA9-000 / BOLT, FLANGE (6X44.5)

16 - -
12 90026-PA9-900 90026-PA9-900 / BOLT, FLANGE (6X52.5)

16 - -
13 90405-PA9-003 90405-PA9-003 / WASHER, TORQUE CONVERTER COVER

1 - -
14 90429-PA9-000 90429-PA9-000 / WASHER, SPECIAL (38X82X2)

1 - -
14 90429-657-900 90429-657-900 / WASHER, SPECIAL (40x80x2)

1 - -
15 90623-689-900 90623-689-900 / RING, SNAP (66MM)

2 - -
16 90701-657-900 90701-657-900 / ROLLER (5X20.8)

10 - -
17 91302-639-000 91302-639-000 / O-RING (32X1.9)

1 $2.72 $1.96
18 91306-PA9-003 91306-PA9-003 / O-RING (227x2.5) (ARAI)

1 - -
19 95701-06012-00 95701-06012-00 / BOLT, FLANGE (6X12)

8 $0.88 $0.64
19 95700-06012-00 95700-06012-00 / BOLT, FLANGE (6X12)

8 $0.88 $0.64
