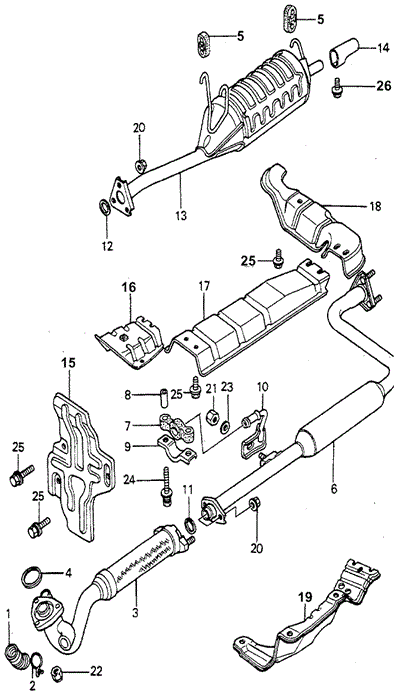

PIPE A, EX. in ELECTRICAL / EXHAUST / HEATER / FUEL/EXHAUST SYSTEM (1) for 1980 Honda ACCORD HATCHBACK

PIPE A, EX. in ELECTRICAL / EXHAUST / HEATER / FUEL/EXHAUST SYSTEM (1) for 1980 Honda ACCORD HATCHBACK #1
5
  • RUBBER, MUFFLER MOUNTING (74X53X22) - $7.31
6
  • PIPE B, EX.
7
  • RUBBER, EX. PIPE MOUNTING
12
  • GASKET, MUFFLER - $6.94
23
  • WASHER, PLAIN (10MM) - $0.88
2
  • CLIP, HOT AIR DUCT
9
  • STOPPER, EX. PIPE MOUNTING
20
  • NUT, SELF-LOCK (8MM) (CLINCH) - $0.30
21
  • NUT, SELF-LOCK (10MM) - $2.36
15
  • PLATE, DASHBOARD BAFFLE (LOWER)
13
  • MUFFLER, EX.
10
  • STAY, EX. PIPE MOUNTING
14
  • FINISHER, EX. PIPE
18
  • PLATE, TANK BAFFLE
24
  • BOLT-WASHER (8X40) - $0.91
20
  • NUT, SELF-LOCK (8MM) (CLINCH) - $0.30
26
  • BOLT, FLANGE (6X12) - $0.72
17
  • PLATE B, HEAT BAFFLE
16
  • PLATE A, HEAT BAFFLE
4
  • GASKET A, EX. PIPE
3
  • PIPE A, EX.
8
  • COLLAR B, PIPE MOUNTING
22
  • NUT, SELF-LOCK (10MM) - $2.36
11
  • GASKET, MUFFLER - $4.28
1
  • PIPE, HOT AIR IN.
5
  • RUBBER, MUFFLER MOUNTING (74X53X22) - $7.31
No. Part # Part # / Description Qty Req. List Price Price
1 17304-PA0-003 17304-PA0-003 / PIPE, HOT AIR IN.

1 - -
2 17308-634-000 17308-634-000 / CLIP, HOT AIR DUCT

1 - -
3 18210-689-030 18210-689-030 / PIPE A, EX.

1 - -
4 18212-689-003 18212-689-003 / GASKET A, EX. PIPE

1 - -
5 18215-671-000 18215-671-000 / RUBBER, MUFFLER MOUNTING (74X53X22)

3 $10.15 $7.31
6 18220-689-023 18220-689-023 / PIPE B, EX.

1 - -
7 18260-671-000 18260-671-000 / RUBBER, EX. PIPE MOUNTING

1 - -
8 18261-659-000 18261-659-000 / COLLAR B, PIPE MOUNTING

2 - -
9 18262-659-000 18262-659-000 / STOPPER, EX. PIPE MOUNTING

1 - -
10 18263-659-010 18263-659-010 / STAY, EX. PIPE MOUNTING

1 - -
11 18302-SB2-S00 18302-SB2-S00 / GASKET, MUFFLER

1 $5.95 $4.28
12 18303-SE1-S01 18303-SE1-S01 / GASKET, MUFFLER

1 $9.63 $6.94
13 18307-689-693 18307-689-693 / MUFFLER, EX.

1 - -
14 18310-671-600 18310-671-600 / FINISHER, EX. PIPE

1 - -
15 60697-671-010 60697-671-010 / PLATE, DASHBOARD BAFFLE (LOWER)

1 - -
16 72201-671-020 72201-671-020 / PLATE A, HEAT BAFFLE

1 - -
17 72202-671-010 72202-671-010 / PLATE B, HEAT BAFFLE

1 - -
18 72203-689-670 72203-689-670 / PLATE, TANK BAFFLE

1 - -
20 90115-659-003 90115-659-003 / NUT, SELF-LOCK (8MM) (CLINCH)

5 $0.42 $0.30
22 90303-692-003 90303-692-003 / NUT, SELF-LOCK (10MM)

3 $3.28 $2.36
23 90503-819-000 90503-819-000 / WASHER, PLAIN (10MM)

1 $1.22 $0.88
24 93402-08040-08 93402-08040-08 / BOLT-WASHER (8X40)

2 $1.27 $0.91
26 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.72
