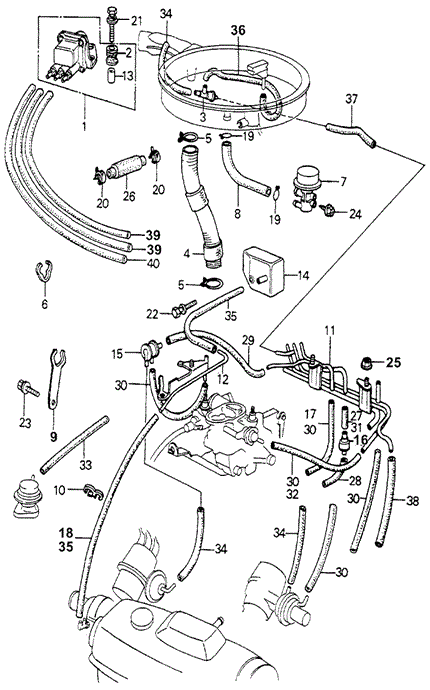

CONTROL ASSY., AIR JET in ELECTRICAL / EXHAUST / HEATER / FUEL/AIR CLEANER TUBING (2) for 1980 Honda ACCORD HATCHBACK

CONTROL ASSY., AIR JET in ELECTRICAL / EXHAUST / HEATER / FUEL/AIR CLEANER TUBING (2) for 1980 Honda ACCORD HATCHBACK #1
23
  • SCREW-WASHER (5X8) - $0.46
38
  • BULK HOSE, VACUUM (5.5X8000) - $66.74
30
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
1
  • CONTROL ASSY., AIR JET
5
  • CLIP, HOT AIR DUCT
10
  • CLAMP, TUBE
30
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
21
  • BOLT-WASHER (6X25) - $0.86
27
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
35
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
16
  • VALVE, CHECK - $21.37
20
  • CLAMP, TUBE (D17) - $3.86
6
  • CLAMP B, AIR JET CONTROL TUBE
30
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
30
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
3
  • VALVE, CHECK
26
  • BULK HOSE, VACUUM (12X1000) - $14.34
7
  • VALVE, SHOT AIR
22
  • BOLT-WASHER (6X35) - $0.86
5
  • CLIP, HOT AIR DUCT
19
  • CLIP, AIR HOSE (16MM) - $3.74
15
  • VALVE, SPARK DELAY
34
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
34
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
28
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
37
  • BULK HOSE, VACUUM (4.5X1000) - $8.27
25
  • NUT, FLANGE (6MM) - $0.17
36
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
9
  • CLAMP, AIR JET CONTROL TUBE
8
  • TUBE C, SHOT AIR
13
  • COLLAR, CONTROL VALVE - $2.47
29
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
30
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
35
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
12
  • PIPE B, INSTALL
  • PIPE B, INSTALL
24
  • SCREW, TAPPING (5X12) - $0.36
20
  • CLAMP, TUBE (D17) - $3.86
19
  • CLIP, AIR HOSE (16MM) - $3.74
14
  • FILTER ASSY., AIR
11
  • PIPE A, INSTALL
  • PIPE A, INSTALL
2
  • RUBBER, AIR JET CONTROL MOUNTING
34
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
4
  • PIPE, HOT AIR
No. Part # Part # / Description Qty Req. List Price Price
1 16800-689-781 16800-689-781 / CONTROL ASSY., AIR JET

1 - -
2 16807-PA6-000 16807-PA6-000 / RUBBER, AIR JET CONTROL MOUNTING

3 - -
3 17150-PA6-004 17150-PA6-004 / VALVE, CHECK

1 - -
4 17302-689-003 17302-689-003 / PIPE, HOT AIR

1 - -
5 17308-634-000 17308-634-000 / CLIP, HOT AIR DUCT

2 - -
6 17337-671-820 17337-671-820 / CLAMP B, AIR JET CONTROL TUBE

1 - -
7 17340-PA6-003 17340-PA6-003 / VALVE, SHOT AIR

1 - -
8 17349-689-000 17349-689-000 / TUBE C, SHOT AIR

1 - -
9 17353-689-820 17353-689-820 / CLAMP, AIR JET CONTROL TUBE

1 - -
10 17363-689-660 17363-689-660 / CLAMP, TUBE

1 - -
11 17400-689-660 17400-689-660 / PIPE A, INSTALL

1 - -
11 17400-689-780 17400-689-780 / PIPE A, INSTALL

1 - -
12 17410-689-660 17410-689-660 / PIPE B, INSTALL

1 - -
12 17410-689-000 17410-689-000 / PIPE B, INSTALL

1 - -
13 36052-657-300 36052-657-300 / COLLAR, CONTROL VALVE

3 $3.43 $2.47
14 36120-689-004 36120-689-004 / FILTER ASSY., AIR

1 - -
15 36140-689-014 36140-689-014 / VALVE, SPARK DELAY

1 - -
16 36145-PM4-004 36145-PM4-004 / VALVE, CHECK

1 $29.68 $21.37
19 90646-657-000 90646-657-000 / CLIP, AIR HOSE (16MM)

2 $5.20 $3.74
20 91405-PM5-004 91405-PM5-004 / CLAMP, TUBE (D17)

2 $5.37 $3.86
21 93403-06025-08 93403-06025-08 / BOLT-WASHER (6X25)

3 $1.20 $0.86
22 93403-06035-08 93403-06035-08 / BOLT-WASHER (6X35)

1 $1.20 $0.86
23 93892-05008-08 93892-05008-08 / SCREW-WASHER (5X8)

1 $0.63 $0.46
24 93904-35280 93904-35280 / SCREW, TAPPING (5X12)

1 $0.50 $0.36
25 94050-06080 94050-06080 / NUT, FLANGE (6MM)

3 $0.23 $0.17
26 95005-12001-20M 95005-12001-20M / BULK HOSE, VACUUM (12X1000)

1 $19.92 $14.34
36 95005-35008-10M 95005-35008-10M / BULK HOSE, VACUUM (3.5X8000)

2 $52.80 $38.02
37 95005-45001-10M 95005-45001-10M / BULK HOSE, VACUUM (4.5X1000)

1 $11.48 $8.27
38 95005-55008-10M 95005-55008-10M / BULK HOSE, VACUUM (5.5X8000)

1 $92.70 $66.74
