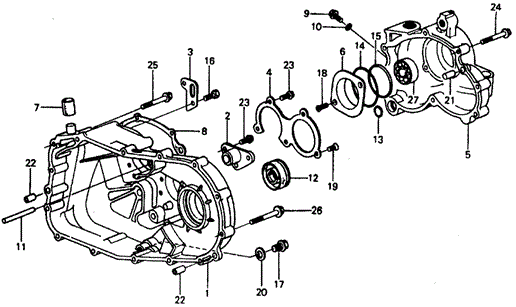

HOUSING, TRANSMISSION in TRANSMISSION - HONDAMATIC/HMT TRANSMISSION HOUSING for 1979 Honda CIVIC 1200 HATCHBACK

HOUSING, TRANSMISSION in TRANSMISSION - HONDAMATIC/HMT TRANSMISSION HOUSING for 1979 Honda CIVIC 1200 HATCHBACK #1
4
  • PLATE, BEARING RETAINING
22
  • PIN, DOWEL (14X20) - $0.98
10
  • GASKET (8MM) - $1.20
18
  • SCREW, FLAT (6X16) - $0.43
23
  • BOLT, FLANGE (6X18) - $0.64
17
  • BOLT, DRAIN PLUG (14MM) - $1.73
26
  • BOLT, FLANGE (8X50) - $0.98
13
  • O-RING (9.6X2.6) (ARAI) - $0.98
27
  • BEARING, RADIAL BALL (6001) - $7.97
1
  • HOUSING, TRANSMISSION
21
  • PIN, DOWEL (8X14) - $0.84
22
  • PIN, DOWEL (14X20) - $0.98
3
  • PLATE, HANGER
24
  • BOLT, FLANGE (6X40) - $0.74
12
  • OIL SEAL (35X56X9) (NOK) - $6.65
2
  • HOLDER, REVERSE IDLE SHAFT
5
  • COVER, R. TRANSMISSION SIDE
14
  • O-RING (64X2) - $3.84
23
  • BOLT, FLANGE (6X18) - $0.64
20
  • WASHER, DRAIN PLUG (14MM) - $0.28
15
  • O-RING (56.1X2)
25
  • BOLT, FLANGE (6X45) - $0.86
9
  • BOLT, SEALING (8MM) - $2.26
11
  • PIN, DOWEL (8X55) - $3.30
6
  • GUIDE, L-CLUTCH SEALING
7
  • CAP, BREATHER - $3.49
16
  • BOLT, HEX. (8X20) - $0.64
8
  • GASKET, R. COVER (OUTER)
19
  • SCREW, FLAT (6X16) - $0.43
No. Part # Part # / Description Qty Req. List Price Price
1 21210-689-900 21210-689-900 / HOUSING, TRANSMISSION

1 - -
2 21215-639-000 21215-639-000 / HOLDER, REVERSE IDLE SHAFT

1 - -
3 21232-639-010 21232-639-010 / PLATE, HANGER

1 - -
4 21236-639-000 21236-639-000 / PLATE, BEARING RETAINING

1 - -
5 21240-639-000 21240-639-000 / COVER, R. TRANSMISSION SIDE

1 - -
6 21242-639-000 21242-639-000 / GUIDE, L-CLUTCH SEALING

1 - -
7 21396-611-010 21396-611-010 / CAP, BREATHER

1 $4.85 $3.49
8 21813-639-S00 21813-639-S00 / GASKET, R. COVER (OUTER)

1 - -
9 90024-612-000 90024-612-000 / BOLT, SEALING (8MM)

1 $3.13 $2.26
10 90471-580-000 90471-580-000 / GASKET (8MM)

1 $1.67 $1.20
11 90701-639-000 90701-639-000 / PIN, DOWEL (8X55)

1 $4.58 $3.30
12 91205-611-005 91205-611-005 / OIL SEAL (35X56X9) (NOK)

1 $9.23 $6.65
13 91309-ML7-003 91309-ML7-003 / O-RING (9.6X2.6) (ARAI)

1 $1.37 $0.98
14 91307-639-000 91307-639-000 / O-RING (64X2)

1 $5.33 $3.84
15 91308-639-000 91308-639-000 / O-RING (56.1X2)

1 - -
16 92101-08020-0H 92101-08020-0H / BOLT, HEX. (8X20)

1 $0.88 $0.64
17 92800-14000 92800-14000 / BOLT, DRAIN PLUG (14MM)

1 $2.40 $1.73
19 93600-06016-0A 93600-06016-0A / SCREW, FLAT (6X16)

3 $0.60 $0.43
20 94109-14000 94109-14000 / WASHER, DRAIN PLUG (14MM)

1 $0.38 $0.28
21 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.84
22 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.98
23 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

5 $0.88 $0.64
24 95701-06040-08 95701-06040-08 / BOLT, FLANGE (6X40)

7 $1.03 $0.74
25 95701-06045-08 95701-06045-08 / BOLT, FLANGE (6X45)

1 $1.20 $0.86
26 95701-08050-08 95701-08050-08 / BOLT, FLANGE (8X50)

13 $1.37 $0.98
27 96100-60010-00 96100-60010-00 / BEARING, RADIAL BALL (6001)

1 $12.07 $7.97
