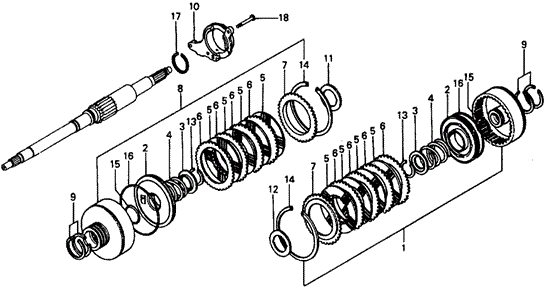

L-CLUTCH ASSY. in TRANSMISSION - HONDAMATIC/HMT CLUTCH for 1979 Honda CIVIC 1200 HATCHBACK

L-CLUTCH ASSY. in TRANSMISSION - HONDAMATIC/HMT CLUTCH for 1979 Honda CIVIC 1200 HATCHBACK #1
2
  • PISTON, CLUTCH
6
  • PLATE, CLUTCH - $9.94
13
  • CIRCLIP (OUTER) (36MM)
6
  • PLATE, CLUTCH - $9.94
2
  • PISTON, CLUTCH
5
  • DISK, CLUTCH
5
  • DISK, CLUTCH
3
  • SEAT, CLUTCH SPRING
15
  • O-RING (32X1.9) - $1.96
6
  • PLATE, CLUTCH - $9.94
15
  • O-RING (32X1.9) - $1.96
4
  • SPRING, CLUTCH RETURN
18
  • BOLT, FLANGE (6X55) - $0.86
9
  • RING, SEALING (52MM)
13
  • CIRCLIP (OUTER) (36MM)
9
  • RING, SEALING (52MM)
5
  • DISK, CLUTCH
6
  • PLATE, CLUTCH - $9.94
14
  • CIRCLIP (INNER) (103.5X1.5)
16
  • O-RING (88X2.2)
7
  • PLATE, CLUTCH END (3.0MM)
  • PLATE, CLUTCH END (1.8MM) - $19.15
  • PLATE, CLUTCH END (2.7MM)
  • PLATE, CLUTCH END (2.1MM)
  • PLATE, CLUTCH END (3.3MM) - $19.15
14
  • CIRCLIP (INNER) (103.5X1.5)
7
  • PLATE, CLUTCH END (3.0MM)
  • PLATE, CLUTCH END (1.8MM) - $19.15
  • PLATE, CLUTCH END (2.7MM)
  • PLATE, CLUTCH END (2.1MM)
  • PLATE, CLUTCH END (3.3MM) - $19.15
5
  • DISK, CLUTCH
10
  • GUIDE, SEALING RING
1
  • L-CLUTCH ASSY.
11
  • WASHER, THRUST (28x46.5x3)
6
  • PLATE, CLUTCH - $9.94
3
  • SEAT, CLUTCH SPRING
5
  • DISK, CLUTCH
4
  • SPRING, CLUTCH RETURN
8
  • D-CLUTCH ASSY.
5
  • DISK, CLUTCH
6
  • PLATE, CLUTCH - $9.94
6
  • PLATE, CLUTCH - $9.94
12
  • WASHER, THRUST (20x46.5x3)
6
  • PLATE, CLUTCH - $9.94
17
  • RING B, SNAP (31MM)
16
  • O-RING (88X2.2)
5
  • DISK, CLUTCH
5
  • DISK, CLUTCH
