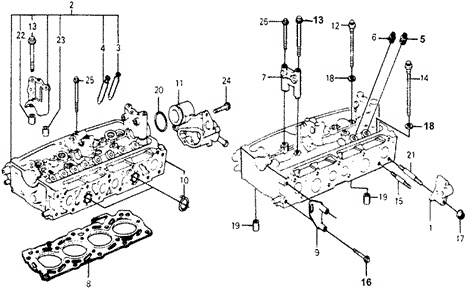

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD ('78) for 1978 Honda ACCORD HATCHBACK

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD ('78) for 1978 Honda ACCORD HATCHBACK #1
2
  • CYLINDER HEAD ASSY.
17
  • NUT, FLANGE (8MM) - $0.52
26
  • BOLT, FLANGE (6X65) - $0.83
14
  • BOLT, FLANGE (10X112)
8
  • GASKET, CYLINDER HEAD
15
  • BOLT, STUD (8X48)
10
  • WASHER, PORT LINER
18
  • WASHER, SPECIAL (23x11x2.3) - $2.66
6
  • SEAL B, VALVE STEM
11
  • HOLDER, DISTRIBUTOR
  • HOLDER, DISTRIBUTOR
12
  • BOLT, FLANGE (10X102)
5
  • SEAL A, VALVE STEM
23
  • PIN, DOWEL (10X16) - $0.96
24
  • BOLT, FLANGE (6X40) - $0.74
25
  • BOLT, FLANGE (6X70) - $0.94
20
  • O-RING (53.8X3.1) - $2.50
4
  • GUIDE, EX. VALVE
22
  • PIN, DOWEL (8X14) - $0.84
19
  • PIN, DOWEL (14X20) - $0.98
16
  • BOLT, FLANGE (10X45) - $1.08
19
  • PIN, DOWEL (14X20) - $0.98
1
  • BRACKET, TORQUE ROD
21
  • BOLT, STUD (8X60)
18
  • WASHER, SPECIAL (23x11x2.3) - $2.66
13
  • BOLT, FLANGE (8X77) - $3.40
13
  • BOLT, FLANGE (8X77) - $3.40
7
  • HOLDER, CAM
3
  • GUIDE, VALVE
9
  • BRACKET, SPACER
No. Part # Part # / Description Qty Req. List Price Price
1 11920-657-020 11920-657-020 / BRACKET, TORQUE ROD

1 - -
2 12010-657-810 12010-657-810 / CYLINDER HEAD ASSY.

1 - -
3 12204-634-920 12204-634-920 / GUIDE, VALVE

4 - -
4 12205-657-315 12205-657-315 / GUIDE, EX. VALVE

4 - -
5 12210-657-003 12210-657-003 / SEAL A, VALVE STEM

4 - -
6 12211-657-003 12211-657-003 / SEAL B, VALVE STEM

4 - -
7 12232-657-010 12232-657-010 / HOLDER, CAM

2 - -
8 12251-PA6-000 12251-PA6-000 / GASKET, CYLINDER HEAD

1 - -
9 17342-671-000 17342-671-000 / BRACKET, SPACER

1 - -
10 18015-657-000 18015-657-000 / WASHER, PORT LINER

2 - -
11 30150-673-010 30150-673-010 / HOLDER, DISTRIBUTOR

1 - -
11 30150-673-010 30150-673-010 / HOLDER, DISTRIBUTOR

1 - -
12 90004-671-003 90004-671-003 / BOLT, FLANGE (10X102)

1 - -
13 90005-634-003 90005-634-003 / BOLT, FLANGE (8X77)

7 $4.71 $3.40
14 90005-671-003 90005-671-003 / BOLT, FLANGE (10X112)

9 - -
15 90062-657-310 90062-657-310 / BOLT, STUD (8X48)

9 - -
16 95801-10045-08 95801-10045-08 / BOLT, FLANGE (10X45)

2 $1.50 $1.08
17 94050-08000 94050-08000 / NUT, FLANGE (8MM)

2 $0.72 $0.52
18 90438-611-010 90438-611-010 / WASHER, SPECIAL (23x11x2.3)

10 $3.69 $2.66
19 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.98
20 91302-657-000 91302-657-000 / O-RING (53.8X3.1)

1 $3.47 $2.50
21 92700-08060-0B 92700-08060-0B / BOLT, STUD (8X60)

2 - -
22 94301-08140 94301-08140 / PIN, DOWEL (8X14)

1 $1.17 $0.84
23 94301-10160 94301-10160 / PIN, DOWEL (10X16)

5 $1.33 $0.96
24 95701-06040-08 95701-06040-08 / BOLT, FLANGE (6X40)

1 $1.03 $0.74
25 95701-06070-08 95701-06070-08 / BOLT, FLANGE (6X70)

1 $1.30 $0.94
26 95722-06065 95722-06065 / BOLT, FLANGE (6X65)

2 $1.15 $0.83
