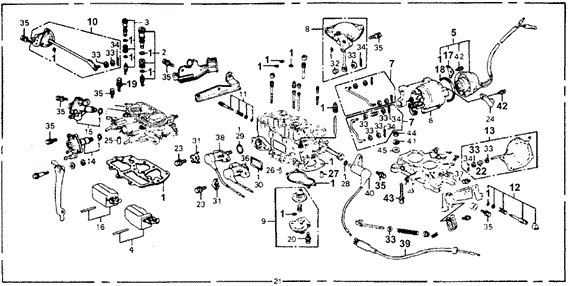

CARBURETOR ASSY. in ENGINE/CARBURETOR ('78) for 1978 Honda ACCORD HATCHBACK

CARBURETOR ASSY. in ENGINE/CARBURETOR ('78) for 1978 Honda ACCORD HATCHBACK #1
3
  • VALVE SET, SUB-FLOAT - $30.10
13
  • OPENER SET, THROTTLE
1
  • GASKET SET, CARBURETOR
31
  • WASHER, MAIN JET COVER
36
  • VALVE ASSY., SOLENOID
20
  • BOLT, WASHER (5X16)
39
  • WIRE HARNESS, JOINT - $5.92
33
  • WASHER, PLAIN (4MM)
18
  • GASKET, CHOKE CAP - $1.50
32
  • COLLAR - $1.49
1
  • GASKET SET, CARBURETOR
33
  • WASHER, PLAIN (4MM)
21
  • CARBURETOR ASSY.
  • CARBURETOR ASSY. - $624.11
33
  • WASHER, PLAIN (4MM)
44
  • NUT, HEX. (8MM) - $0.50
1
  • GASKET SET, CARBURETOR
35
  • BOLT-WASHER (5X20)
33
  • WASHER, PLAIN (4MM)
38
  • VALVE ASSY., SUB-SOLENOID
35
  • BOLT-WASHER (5X20)
35
  • BOLT-WASHER (5X20)
34
  • PIN, SPLIT - $1.75
34
  • PIN, SPLIT - $1.75
22
  • COLLAR
9
  • DIAPHRAGM SET, PUMP
42
  • SCREW-WASHER (4X10) - $0.49
1
  • GASKET SET, CARBURETOR
4
  • FLOAT SET, MAIN - $26.63
34
  • PIN, SPLIT - $1.75
40
  • VALVE, FUEL MAGNETIC
  • VALVE, FUEL MAGNETIC
29
  • O-RING (18x1.9)
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
14
  • DIAPHRAGM SET A, CUT-OFF
35
  • BOLT-WASHER (5X20)
27
  • PIN, DOWEL
1
  • GASKET SET, CARBURETOR
43
  • SCREW-WASHER (6X40)
35
  • BOLT-WASHER (5X20)
35
  • BOLT-WASHER (5X20)
5
  • CAP SET, CHOKE
35
  • BOLT-WASHER (5X20)
28
  • O-RING (5.8X1.9) - $2.24
34
  • PIN, SPLIT - $1.75
26
  • PIN, KNOCK
1
  • GASKET SET, CARBURETOR
12
  • SCREW SET A
37
  • SCREW-WASHER (5X10)
24
  • CLAMP, AUTO CHOKE
16
  • SUB-FLOAT SET - $17.28
31
  • WASHER, MAIN JET COVER
1
  • GASKET SET, CARBURETOR
2
  • VALVE SET, MAIN FLOAT
17
  • PLATE, SETTING
1
  • GASKET SET, CARBURETOR
23
  • BOLT-WASHER (6X20)
7
  • ROD SET
33
  • WASHER, PLAIN (4MM)
33
  • WASHER, PLAIN (4MM)
35
  • BOLT-WASHER (5X20)
33
  • WASHER, PLAIN (4MM)
33
  • WASHER, PLAIN (4MM)
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
34
  • PIN, SPLIT - $1.75
19
  • BOLT-WASHER (5X25)
41
  • WASHER, SPRING (8MM)
42
  • SCREW-WASHER (4X10) - $0.49
33
  • WASHER, PLAIN (4MM)
8
  • DIAPHRAGM ASSY., SET
30
  • O-RING, MAIN JET
33
  • WASHER, PLAIN (4MM)
7
  • ROD SET
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
23
  • BOLT-WASHER (6X20)
10
  • DIAPHRAGM SET, CHOKE
15
  • DIAPHRAGM SET B, CUT-OFF
6
  • CASE SET, BIMETAL
25
  • PIN, DOWEL
11
  • SCREW SET B
45
  • WASHER, PLAIN (8MM) - $0.79
1
  • GASKET SET, CARBURETOR
No. Part # Part # / Description Qty Req. List Price Price
1 16010-671-661 16010-671-661 / GASKET SET, CARBURETOR

1 - -
2 16011-657-015 16011-657-015 / VALVE SET, MAIN FLOAT

1 - -
3 16012-657-005 16012-657-005 / VALVE SET, SUB-FLOAT

1 $41.80 $30.10
4 16013-657-671 16013-657-671 / FLOAT SET, MAIN

1 $36.98 $26.63
5 16014-671-305 16014-671-305 / CAP SET, CHOKE

1 - -
6 16015-671-005 16015-671-005 / CASE SET, BIMETAL

1 - -
7 16017-671-005 16017-671-005 / ROD SET

1 - -
8 16020-671-005 16020-671-005 / DIAPHRAGM ASSY., SET

1 - -
9 16021-657-035 16021-657-035 / DIAPHRAGM SET, PUMP

1 - -
10 16026-671-005 16026-671-005 / DIAPHRAGM SET, CHOKE

1 - -
11 16028-657-672 16028-657-672 / SCREW SET B

1 - -
12 16029-657-672 16029-657-672 / SCREW SET A

1 - -
13 16043-671-005 16043-671-005 / OPENER SET, THROTTLE

1 - -
14 16044-657-671 16044-657-671 / DIAPHRAGM SET A, CUT-OFF

1 - -
15 16045-657-671 16045-657-671 / DIAPHRAGM SET B, CUT-OFF

1 - -
16 16049-657-671 16049-657-671 / SUB-FLOAT SET

1 $24.00 $17.28
17 16066-671-005 16066-671-005 / PLATE, SETTING

3 - -
18 16077-671-005 16077-671-005 / GASKET, CHOKE CAP

1 $2.08 $1.50
19 16080-657-005 16080-657-005 / BOLT-WASHER (5X25)

2 - -
20 16081-657-005 16081-657-005 / BOLT, WASHER (5X16)

3 - -
21 16100-671-775 16100-671-775 / CARBURETOR ASSY.

1 - -
21 16100-671-833 16100-671-833 / CARBURETOR ASSY.

1 $866.82 $624.11
22 16131-657-300 16131-657-300 / COLLAR

1 - -
23 16132-657-300 16132-657-300 / BOLT-WASHER (6X20)

4 - -
24 16134-671-005 16134-671-005 / CLAMP, AUTO CHOKE

1 - -
25 16172-657-015 16172-657-015 / PIN, DOWEL

2 - -
26 16173-657-005 16173-657-005 / PIN, KNOCK

2 - -
27 16174-657-005 16174-657-005 / PIN, DOWEL

1 - -
28 16178-548-004 16178-548-004 / O-RING (5.8X1.9)

1 $3.12 $2.24
29 16178-657-300 16178-657-300 / O-RING (18x1.9)

1 - -
30 16192-657-310 16192-657-310 / O-RING, MAIN JET

1 - -
31 16198-657-310 16198-657-310 / WASHER, MAIN JET COVER

4 - -
32 16202-657-300 16202-657-300 / COLLAR

2 $2.07 $1.49
33 16203-657-300 16203-657-300 / WASHER, PLAIN (4MM)

11 - -
34 16204-657-300 16204-657-300 / PIN, SPLIT

9 $2.43 $1.75
35 16084-PE0-921 16084-PE0-921 / BOLT-WASHER (5X20)

19 - -
36 16208-657-004 16208-657-004 / VALVE ASSY., SOLENOID

1 - -
37 16209-657-300 16209-657-300 / SCREW-WASHER (5X10)

2 - -
38 16220-657-003 16220-657-003 / VALVE ASSY., SUB-SOLENOID

1 - -
39 16225-657-003 16225-657-003 / WIRE HARNESS, JOINT

1 $8.22 $5.92
40 16230-PA5-015 16230-PA5-015 / VALVE, FUEL MAGNETIC

1 - -
40 16230-PA5-015 16230-PA5-015 / VALVE, FUEL MAGNETIC

1 - -
41 90409-657-000 90409-657-000 / WASHER, SPRING (8MM)

4 - -
42 93892-04010-08 93892-04010-08 / SCREW-WASHER (4X10)

3 $0.68 $0.49
43 93892-06040-08 93892-06040-08 / SCREW-WASHER (6X40)

5 - -
44 94002-08000-0S 94002-08000-0S / NUT, HEX. (8MM)

4 $0.70 $0.50
45 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

4 $1.10 $0.79
46 06160-671-003 06160-671-003 / OVERHAUL KIT, CARBURETOR

1 - -
47 06161-657-013 06161-657-013 / GASKET KIT, CARBURETOR ON-CAR

1 - -
