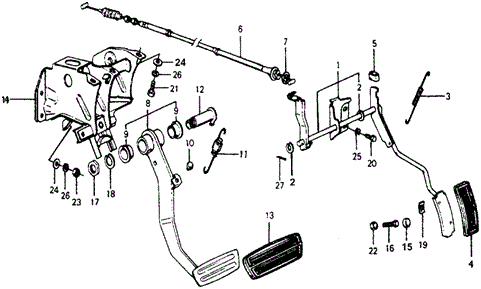

BRACKET, PEDAL in CHASSIS/HMT PEDAL for 1978 Honda ACCORD HATCHBACK

BRACKET, PEDAL in CHASSIS/HMT PEDAL for 1978 Honda ACCORD HATCHBACK #1
6
  • WIRE, THROTTLE
25
  • WASHER, SPRING (6MM) - $0.43
26
  • WASHER, SPRING (8MM) - $0.38
22
  • NUT, HEX. (6MM) - $0.49
17
  • NUT, LOCK (28MM)
24
  • WASHER, PLAIN (8MM) - $0.79
12
  • BOLT, BRAKE PEDAL
16
  • BOLT, ACCELERATOR PEDAL
11
  • SPRING ASSY., PEDAL RETURN - $5.63
13
  • COVER, BRAKE PEDAL - $4.26
1
  • PEDAL, ACCELERATOR
8
  • PEDAL, BRAKE
2
  • WASHER, ACCELERATOR PEDAL - $1.50
26
  • WASHER, SPRING (8MM) - $0.38
18
  • WASHER, BRAKE PEDAL
23
  • NUT, HEX. (8MM) - $0.43
7
  • SEAL, THROTTLE CABLE
3
  • SPRING, ACCELERATOR PEDAL
19
  • CLIP, ACCELERATOR PEDAL
21
  • BOLT, HEX. (8X12) - $0.47
20
  • BOLT, HEX. (6X12) - $0.54
27
  • PIN, SPLIT (2.0X35) - $0.54
14
  • BRACKET, PEDAL
2
  • WASHER, ACCELERATOR PEDAL - $1.50
9
  • BUSH, BRAKE PEDAL
9
  • BUSH, BRAKE PEDAL
10
  • PAD, PEDAL STOPPER - $1.75
  • PAD, PEDAL STOPPER - $1.75
4
  • COVER, ACCELERATOR PEDAL - $5.78
  • COVER, ACCELERATOR PEDAL
5
  • STOPPER, ACCELERATOR PEDAL
24
  • WASHER, PLAIN (8MM) - $0.79
15
  • PAD, ACCELERATOR PEDAL
No. Part # Part # / Description Qty Req. List Price Price
1 17810-671-671 17810-671-671 / PEDAL, ACCELERATOR

1 - -
2 17812-SA7-010 17812-SA7-010 / WASHER, ACCELERATOR PEDAL

3 $2.08 $1.50
3 17814-671-000 17814-671-000 / SPRING, ACCELERATOR PEDAL

1 - -
4 17816-SK7-000 17816-SK7-000 / COVER, ACCELERATOR PEDAL

1 $8.03 $5.78
4 17816-671-000 17816-671-000 / COVER, ACCELERATOR PEDAL

1 - -
5 17832-611-000 17832-611-000 / STOPPER, ACCELERATOR PEDAL

1 - -
6 17910-671-670 17910-671-670 / WIRE, THROTTLE

1 - -
7 17921-538-010 17921-538-010 / SEAL, THROTTLE CABLE

1 - -
8 46500-671-770 46500-671-770 / PEDAL, BRAKE

1 - -
9 46504-671-670 46504-671-670 / BUSH, BRAKE PEDAL

2 - -
10 46505-SA5-000 46505-SA5-000 / PAD, PEDAL STOPPER

1 $2.43 $1.75
10 46505-SA5-010 46505-SA5-010 / PAD, PEDAL STOPPER

1 $2.43 $1.75
11 46530-671-000 46530-671-000 / SPRING ASSY., PEDAL RETURN

1 $7.82 $5.63
12 46538-671-670 46538-671-670 / BOLT, BRAKE PEDAL

1 - -
13 46545-SA5-980 46545-SA5-980 / COVER, BRAKE PEDAL

1 $5.92 $4.26
14 46590-671-772 46590-671-772 / BRACKET, PEDAL

1 - -
15 17833-671-000 17833-671-000 / PAD, ACCELERATOR PEDAL

1 - -
16 90111-671-010 90111-671-010 / BOLT, ACCELERATOR PEDAL

1 - -
17 90201-848-790 90201-848-790 / NUT, LOCK (28MM)

1 - -
18 90511-671-670 90511-671-670 / WASHER, BRAKE PEDAL

1 - -
19 90660-671-000 90660-671-000 / CLIP, ACCELERATOR PEDAL

2 - -
20 92101-06012-0H 92101-06012-0H / BOLT, HEX. (6X12)

2 $0.75 $0.54
21 92101-08012-0H 92101-08012-0H / BOLT, HEX. (8X12)

3 $0.78 $0.47
22 94001-06080-0S 94001-06080-0S / NUT, HEX. (6MM)

1 $0.68 $0.49
23 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

8 $0.60 $0.43
24 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

5 $1.10 $0.79
25 94111-06800 94111-06800 / WASHER, SPRING (6MM)

1 $0.60 $0.43
26 94111-08800 94111-08800 / WASHER, SPRING (8MM)

8 $0.53 $0.38
27 94201-20350 94201-20350 / PIN, SPLIT (2.0X35)

1 $0.75 $0.54
