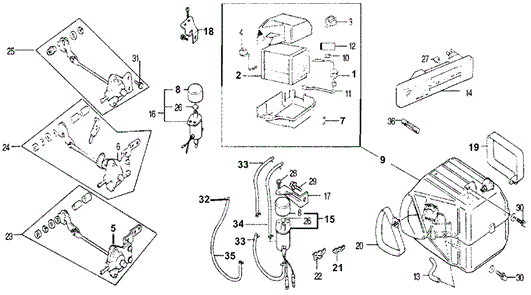

COOLING UNIT ASSY. in BODY / AIR CONDITIONING/A/C EVAPORATOR SOLENOID for 1978 Honda ACCORD HATCHBACK

COOLING UNIT ASSY. in BODY / AIR CONDITIONING/A/C EVAPORATOR SOLENOID for 1978 Honda ACCORD HATCHBACK #1
17
  • BRACKET, SOLENOID VALVE
26
  • IDLE CONTROL SET
9
  • COOLING UNIT ASSY. - $369.41
4
  • THERMOSTAT - $30.44
3
  • RELAY, CUT (056700-3870) (DENSO)
31
  • BOLT-WASHER (5X16) - $0.12
10
  • HOLDER, REMOTE BULB
20
  • BAND A, AIR CONDITIONER
8
  • CAP, AIR FILTER - $3.35
14
  • ILLUMINATION ASSY., AIR CONDITIONER
35
  • BULK HOSE, VACUUM (3.5X1000) - $4.46
33
  • CLIP, TUBE (B7) - $0.70
32
  • SCREW-WASHER (5X12) - $0.49
36
  • BULK HOSE, VACUUM (3.5X1000) - $4.46
2
  • EVAPORATOR
28
  • BULB & SOCKET
8
  • CAP, AIR FILTER - $3.35
15
  • VALVE ASSY., SOLENOID
30
  • BOLT-WASHER (6X12) - $0.64
1
  • VALVE, EXPANSION
30
  • BOLT-WASHER (6X12) - $0.64
25
  • DIAPHRAGM ASSY.
11
  • TUBE, LIQUID LINE - $15.05
21
  • CLAMP, VACUUM HOSE
29
  • SCREW-WASHER (5X8) - $1.02
26
  • IDLE CONTROL SET
7
  • CLAMP, CASE HOLD
19
  • BAND B, AIR CONDITIONER - $3.66
13
  • HOSE, DRAIN - $2.48
33
  • CLIP, TUBE (B7) - $0.70
6
  • DIAPHRAGM - $5.83
12
  • INSULATOR - $1.03
27
  • FILTER ASSY., SOLENOID VALVE - $11.17
No. Part # Part # / Description Qty Req. List Price Price
1 N047500-0240 N047500-0240 / VALVE, EXPANSION

1 - -
2 N047600-0751 N047600-0751 / EVAPORATOR

1 - -
3 N056700-3870 N056700-3870 / RELAY, CUT (056700-3870) (DENSO)

1 - -
4 N113550-0080 N113550-0080 / THERMOSTAT

1 $42.27 $30.44
6 N113752-0240 N113752-0240 / DIAPHRAGM

1 $8.11 $5.83
7 N116632-0120 N116632-0120 / CLAMP, CASE HOLD

5 - -
8 38776-671-000 38776-671-000 / CAP, AIR FILTER

1 $4.65 $3.35
9 N145400-1881 N145400-1881 / COOLING UNIT ASSY.

1 $473.60 $369.41
10 N145511-0040 N145511-0040 / HOLDER, REMOTE BULB

1 - -
11 N146190-5680 N146190-5680 / TUBE, LIQUID LINE

1 $20.90 $15.05
12 N146212-4000 N146212-4000 / INSULATOR

1 $1.43 $1.03
13 N146311-0400 N146311-0400 / HOSE, DRAIN

1 $3.45 $2.48
14 38750-671-672 38750-671-672 / ILLUMINATION ASSY., AIR CONDITIONER

1 - -
15 N146590-0300 N146590-0300 / VALVE ASSY., SOLENOID

1 - -
17 N146631-0880 N146631-0880 / BRACKET, SOLENOID VALVE

1 - -
19 N146690-0830 N146690-0830 / BAND B, AIR CONDITIONER

1 $5.08 $3.66
20 N146690-0840 N146690-0840 / BAND A, AIR CONDITIONER

1 - -
21 N146690-0950 N146690-0950 / CLAMP, VACUUM HOSE

1 - -
25 38780-671-025 38780-671-025 / DIAPHRAGM ASSY.

1 - -
26 38780-671-025 38780-671-025 / IDLE CONTROL SET

1 - -
27 36138-PM1-G01 36138-PM1-G01 / FILTER ASSY., SOLENOID VALVE

1 $15.52 $11.17
28 37553-634-003 37553-634-003 / BULB & SOCKET

1 - -
29 90092-657-000 90092-657-000 / SCREW-WASHER (5X8)

2 $1.42 $1.02
30 93402-06012-08 93402-06012-08 / BOLT-WASHER (6X12)

1 $0.88 $0.64
31 93492-05016-08 93492-05016-08 / BOLT-WASHER (5X16)

2 $0.17 $0.12
32 93892-05012-08 93892-05012-08 / SCREW-WASHER (5X12)

1 $0.68 $0.49
33 95002-02070 95002-02070 / CLIP, TUBE (B7)

4 $0.97 $0.70
36 95005-35001-20M 95005-35001-20M / BULK HOSE, VACUUM (3.5X1000)

1 $6.20 $4.46
37 98200-21000 98200-21000 / FUSE B (10A)

1 $0.57 $0.41
