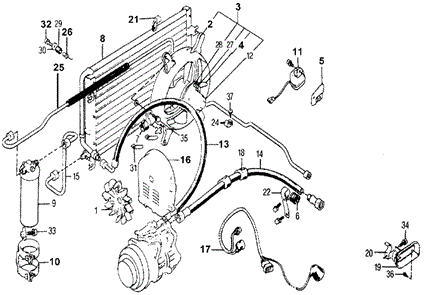

CONDENSER ASSY. in BODY / AIR CONDITIONING/A/C AIR CONDITIONER - FAN - RECEIVER HOSE for 1978 Honda ACCORD HATCHBACK

CONDENSER ASSY. in BODY / AIR CONDITIONING/A/C AIR CONDITIONER - FAN - RECEIVER HOSE for 1978 Honda ACCORD HATCHBACK #1
24
  • CLAMP, HOSE - $1.51
8
  • CONDENSER ASSY. - $168.38
27
  • COLLAR (DENSO)
23
  • CLAMP, HOSE - $0.46
17
  • WIRE HARNESS, ALTERNATOR - $7.96
10
  • HOLDER, RECEIVER
20
  • CLAMP, SUCTION PIPE - $1.63
3
  • FAN, CONDENSER
29
  • RUBBER, MOUNTING
14
  • HOSE, SUCTION - $69.52
13
  • HOSE, DISCHARGE - $45.13
15
  • TUBE, LIQUID LINE
21
  • CLAMP, TUBE
7
  • RUBBER, HOSE CLAMP - $0.24
9
  • RECEIVER
4
  • FAN, COOLING
31
  • CLIP, WIRE - $3.86
25
  • TUBE, LIQUID LINE - $23.23
16
  • COVER, TIME GEAR
22
  • CLAMP, HOSE
6
  • RUBBER, HOSE CLAMP
36
  • SCREW, TAPPING (5X12) - $0.31
32
  • BOLT, HEX. (6X25)
  • BOLT, HEX. (6X25)
35
  • BOLT-WASHER (6X20) - $0.73
1
  • FAN, ALTERNATOR
30
  • WASHER, SPECIAL (6MM) - $1.82
34
  • BOLT-WASHER (6X16) - $0.73
33
  • BOLT-WASHER (6X16) - $0.64
19
  • PROTECTOR, GROMMET - $2.11
18
  • RUBBER, CUSHION
37
  • SCREW, TAPPING (6X12)
12
  • MOTOR, FAN - $153.62
28
  • RUBBER, BUSHING - $18.77
2
  • SHROUD, FAN
26
  • COLLAR, DISTANCE
No. Part # Part # / Description Qty Req. List Price Price
1 N021051-0290 N021051-0290 / FAN, ALTERNATOR

1 - -
2 N022710-0390 N022710-0390 / SHROUD, FAN

1 - -
3 N022760-0100 N022760-0100 / FAN, CONDENSER

1 - -
4 N022770-0050 N022770-0050 / FAN, COOLING

1 - -
6 N046393-2540 N046393-2540 / RUBBER, HOSE CLAMP

1 - -
7 N046393-2550 N046393-2550 / RUBBER, HOSE CLAMP

1 $0.33 $0.24
8 N0477-001-760 N0477-001-760 / CONDENSER ASSY.

1 $233.86 $168.38
9 N047810-0250 N047810-0250 / RECEIVER

1 - -
10 N047890-1170 N047890-1170 / HOLDER, RECEIVER

1 - -
12 N062500-2520 N062500-2520 / MOTOR, FAN

1 $213.37 $153.62
13 N146120-2250 N146120-2250 / HOSE, DISCHARGE

1 $62.68 $45.13
14 N146140-2230 N146140-2230 / HOSE, SUCTION

1 $96.55 $69.52
15 N146190-5270 N146190-5270 / TUBE, LIQUID LINE

1 - -
16 N146370-0220 N146370-0220 / COVER, TIME GEAR

1 - -
17 N146410-3003 N146410-3003 / WIRE HARNESS, ALTERNATOR

1 $11.05 $7.96
18 N146625-0140 N146625-0140 / RUBBER, CUSHION

2 - -
19 N146640-1020 N146640-1020 / PROTECTOR, GROMMET

1 $2.94 $2.11
20 N146680-3240 N146680-3240 / CLAMP, SUCTION PIPE

1 $2.27 $1.63
21 N146680-3300 N146680-3300 / CLAMP, TUBE

1 - -
22 N146680-3310 N146680-3310 / CLAMP, HOSE

1 - -
23 N146680-3330 N146680-3330 / CLAMP, HOSE

1 $0.64 $0.46
24 N146680-3400 N146680-3400 / CLAMP, HOSE

1 $2.10 $1.51
25 N146190-5451 N146190-5451 / TUBE, LIQUID LINE

1 $32.27 $23.23
26 N949192-4370 N949192-4370 / COLLAR, DISTANCE

4 - -
27 N949194-0040 N949194-0040 / COLLAR (DENSO)

3 - -
28 19041-611-003 19041-611-003 / RUBBER, BUSHING

3 $26.07 $18.77
29 N949197-0580 N949197-0580 / RUBBER, MOUNTING

4 - -
30 90438-671-000 90438-671-000 / WASHER, SPECIAL (6MM)

1 $2.53 $1.82
31 91405-671-000 91405-671-000 / CLIP, WIRE

2 $5.37 $3.86
32 92101-06025-0G 92101-06025-0G / BOLT, HEX. (6X25)

1 - -
32 92101-06025-0G 92101-06025-0G / BOLT, HEX. (6X25)

1 - -
33 93402-06016-08 93402-06016-08 / BOLT-WASHER (6X16)

1 $0.88 $0.64
34 93403-06016-08 93403-06016-08 / BOLT-WASHER (6X16)

1 $1.02 $0.73
35 93403-06020-08 93403-06020-08 / BOLT-WASHER (6X20)

1 $1.02 $0.73
36 93901-15210 93901-15210 / SCREW, TAPPING (5X12)

1 $0.43 $0.31
37 93903-16110 93903-16110 / SCREW, TAPPING (6X12)

1 - -
