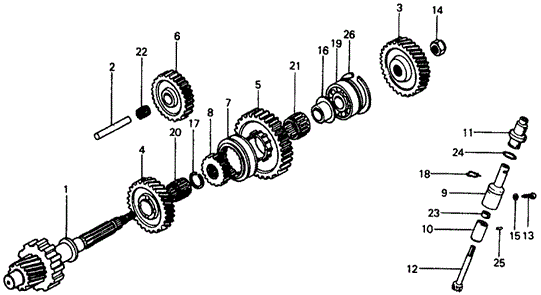

COUNTERSHAFT in TRANSMISSION - HONDAMATIC/HMT COUNTERSHAFT for 1977 Honda CIVIC HATCHBACK

COUNTERSHAFT in TRANSMISSION - HONDAMATIC/HMT COUNTERSHAFT for 1977 Honda CIVIC HATCHBACK #1
10
  • COLLAR, SPEEDOMETER GEAR
4
  • D-GEAR, COUNTERSHAFT
21
  • BEARING, NEEDLE (30x36x14) (TOYO)
15
  • WASHER (6MM)
19
  • BEARING, BALL (6305) (TOYO) - $22.92
1
  • COUNTERSHAFT
22
  • BEARING, NEEDLE (14X18X15) (NTN) - $11.72
8
  • HUB, REVERSE GEAR
17
  • CIRCLIP (OUTER) (26MM)
25
  • PIN, KNOCK (4X5)
5
  • GEAR, COUNTERSHAFT REVERSE
12
  • GEAR, SPEEDOMETER DRIVEN
  • GEAR, SPEEDOMETER DRIVEN (HAWAII)
2
  • SHAFT, REVERSE IDLE GEAR
9
  • HOLDER, SPEEDOMETER GEAR
24
  • O-RING (23.5X2) - $1.43
23
  • OIL SEAL (8X16X6) - $1.42
  • OIL SEAL (8X16X6) - $1.42
14
  • NUT, LOCK (20MM)
11
  • SEAL, GEAR HOLDER
7
  • GEAR, REVERSE SELECTOR
20
  • BEARING, NEEDLE (26x31x21) (TOYO)
16
  • COLLAR (INNER) (25x30x17)
6
  • GEAR, REVERSE IDLE
3
  • GEAR, COUNTERSHAFT
13
  • BOLT, SPECIAL (6MM) - $2.20
18
  • CLIP, SPEEDOMETER CABLE
  • CLIP, SPEEDOMETER CABLE
26
  • RING, SNAP (62MM) - $1.22
No. Part # Part # / Description Qty Req. List Price Price
1 23220-639-000 23220-639-000 / COUNTERSHAFT

1 - -
2 23261-639-000 23261-639-000 / SHAFT, REVERSE IDLE GEAR

1 - -
3 23431-639-020 23431-639-020 / GEAR, COUNTERSHAFT

1 - -
4 23441-671-900 23441-671-900 / D-GEAR, COUNTERSHAFT

1 - -
5 23451-639-000 23451-639-000 / GEAR, COUNTERSHAFT REVERSE

1 - -
6 23541-639-000 23541-639-000 / GEAR, REVERSE IDLE

1 - -
7 23565-639-000 23565-639-000 / GEAR, REVERSE SELECTOR

1 - -
8 23566-639-000 23566-639-000 / HUB, REVERSE GEAR

1 - -
9 23812-611-000 23812-611-000 / HOLDER, SPEEDOMETER GEAR

1 - -
10 23813-590-010 23813-590-010 / COLLAR, SPEEDOMETER GEAR

1 - -
11 23814-590-000 23814-590-000 / SEAL, GEAR HOLDER

1 - -
12 23820-639-000 23820-639-000 / GEAR, SPEEDOMETER DRIVEN

1 - -
12 23820-639-305 23820-639-305 / GEAR, SPEEDOMETER DRIVEN (HAWAII)

0 - -
13 90070-590-000 90070-590-000 / BOLT, SPECIAL (6MM)

1 $3.05 $2.20
14 90092-639-010 90092-639-010 / NUT, LOCK (20MM)

1 - -
15 90472-580-000 90472-580-000 / WASHER (6MM)

1 - -
16 90503-639-018 90503-639-018 / COLLAR (INNER) (25x30x17)

1 - -
17 90601-639-000 90601-639-000 / CIRCLIP (OUTER) (26MM)

1 - -
18 90633-671-000 90633-671-000 / CLIP, SPEEDOMETER CABLE

1 - -
18 90633-671-000 90633-671-000 / CLIP, SPEEDOMETER CABLE

1 - -
19 91004-657-008 91004-657-008 / BEARING, BALL (6305) (TOYO)

1 $31.83 $22.92
20 91023-639-008 91023-639-008 / BEARING, NEEDLE (26x31x21) (TOYO)

1 - -
21 91024-PA9-003 91024-PA9-003 / BEARING, NEEDLE (30x36x14) (TOYO)

1 - -
22 91025-PJ2-003 91025-PJ2-003 / BEARING, NEEDLE (14X18X15) (NTN)

1 $16.28 $11.72
23 91254-792-003 91254-792-003 / OIL SEAL (8X16X6)

1 $1.97 $1.42
23 91254-792-003 91254-792-003 / OIL SEAL (8X16X6)

1 $1.97 $1.42
24 91313-611-010 91313-611-010 / O-RING (23.5X2)

1 $1.98 $1.43
25 94302-04050 94302-04050 / PIN, KNOCK (4X5)

1 - -
26 94560-62100 94560-62100 / RING, SNAP (62MM)

1 $1.70 $1.22
