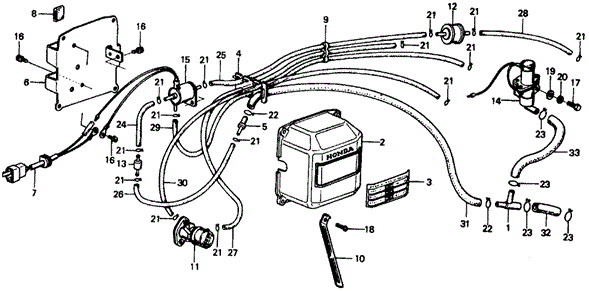

VALVE ASSY., IGNITION SOLENOID in ENGINE/CONTROL VALVE (KA) ('77) for 1977 Honda CIVIC HATCHBACK

VALVE ASSY., IGNITION SOLENOID in ENGINE/CONTROL VALVE (KA) ('77) for 1977 Honda CIVIC HATCHBACK #1
21
  • CLIP, TUBE (B7) - $0.70
1
  • JOINT (THREE-WAY) - $7.69
3
  • LABEL, CONTROL BOX
23
  • CLIP, TUBE (B12) - $0.73
28
  • BULK HOSE, VACUUM (3.5X1000) - $4.46
26
  • BULK HOSE, VACUUM (3.5X1000) - $4.46
21
  • CLIP, TUBE (B7) - $0.70
11
  • VALVE, DASHPOT CHECK
9
  • CLAMP B, TUBE
25
  • BULK HOSE, VACUUM (3.5X1000) - $4.46
16
  • SCREW-WASHER (5X8) - $1.02
22
  • CLIP, TUBE (B10) - $0.73
21
  • CLIP, TUBE (B7) - $0.70
15
  • VALVE ASSY., IGNITION SOLENOID
21
  • CLIP, TUBE (B7) - $0.70
23
  • CLIP, TUBE (B12) - $0.73
14
  • VALVE, STARTER CONTROL
2
  • COVER, CONTROL BOX
21
  • CLIP, TUBE (B7) - $0.70
21
  • CLIP, TUBE (B7) - $0.70
17
  • BOLT, HEX. (6X16) - $0.56
19
  • WASHER, PLAIN (6MM) - $0.25
4
  • HOLDER, TUBE
30
  • BULK HOSE, VACUUM (3.5X1000) - $4.46
33
  • BULK HOSE, VACUUM (7.3X1000) - $9.13
21
  • CLIP, TUBE (B7) - $0.70
5
  • JOINT (TWO-WAY)
21
  • CLIP, TUBE (B7) - $0.70
7
  • WIRE HARNESS, CONTROL BOX
8
  • RUBBER, CUSHION
16
  • SCREW-WASHER (5X8) - $1.02
21
  • CLIP, TUBE (B7) - $0.70
29
  • BULK HOSE, VACUUM (3.5X1000) - $4.46
21
  • CLIP, TUBE (B7) - $0.70
21
  • CLIP, TUBE (B7) - $0.70
24
  • BULK HOSE, VACUUM (3.5X1000) - $4.46
21
  • CLIP, TUBE (B7) - $0.70
20
  • WASHER, SPRING (6MM) - $0.43
16
  • SCREW-WASHER (5X8) - $1.02
27
  • BULK HOSE, VACUUM (3.5X1000) - $4.46
10
  • CLIP C, WIRE
23
  • CLIP, TUBE (B12) - $0.73
21
  • CLIP, TUBE (B7) - $0.70
18
  • SCREW, PAN (5X12) - $0.40
12
  • VALVE, SPARK DELAY
13
  • VALVE, CHECK
22
  • CLIP, TUBE (B10) - $0.73
21
  • CLIP, TUBE (B7) - $0.70
31
  • BULK HOSE, VACUUM (5.5X3000) - $15.10
32
  • BULK HOSE, VACUUM (7.3X1000) - $9.13
23
  • CLIP, TUBE (B12) - $0.73
6
  • BASE, CONTROL BOX
No. Part # Part # / Description Qty Req. List Price Price
1 17208-657-670 17208-657-670 / JOINT (THREE-WAY)

1 $10.68 $7.69
2 36020-657-672 36020-657-672 / COVER, CONTROL BOX

1 - -
3 36022-657-670 36022-657-670 / LABEL, CONTROL BOX

1 - -
4 36024-657-672 36024-657-672 / HOLDER, TUBE

1 - -
5 36025-657-671 36025-657-671 / JOINT (TWO-WAY)

1 - -
6 36030-657-671 36030-657-671 / BASE, CONTROL BOX

1 - -
7 36041-657-672 36041-657-672 / WIRE HARNESS, CONTROL BOX

1 - -
8 36058-657-003 36058-657-003 / RUBBER, CUSHION

3 - -
9 36062-657-003 36062-657-003 / CLAMP B, TUBE

1 - -
10 36070-671-010 36070-671-010 / CLIP C, WIRE

1 - -
11 36135-657-023 36135-657-023 / VALVE, DASHPOT CHECK

1 - -
12 36140-663-671 36140-663-671 / VALVE, SPARK DELAY

1 - -
13 36145-657-670 36145-657-670 / VALVE, CHECK

1 - -
14 36150-657-672 36150-657-672 / VALVE, STARTER CONTROL

1 - -
15 36160-657-014 36160-657-014 / VALVE ASSY., IGNITION SOLENOID

1 - -
16 90092-657-000 90092-657-000 / SCREW-WASHER (5X8)

3 $1.42 $1.02
17 92101-06016-0H 92101-06016-0H / BOLT, HEX. (6X16)

1 $0.78 $0.56
18 93500-05012-0H 93500-05012-0H / SCREW, PAN (5X12)

4 $0.55 $0.40
19 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

1 $0.35 $0.25
20 94111-06800 94111-06800 / WASHER, SPRING (6MM)

1 $0.60 $0.43
21 95002-02070 95002-02070 / CLIP, TUBE (B7)

14 $0.97 $0.70
22 95002-02100 95002-02100 / CLIP, TUBE (B10)

2 $1.02 $0.73
23 95002-02120 95002-02120 / CLIP, TUBE (B12)

4 $1.02 $0.73
30 95005-35001-20M 95005-35001-20M / BULK HOSE, VACUUM (3.5X1000)

1 $6.20 $4.46
31 95005-55003-20M 95005-55003-20M / BULK HOSE, VACUUM (5.5X3000)

1 $20.97 $15.10
33 95005-75001-20M 95005-75001-20M / BULK HOSE, VACUUM (7.3X1000)

1 $12.68 $9.13
