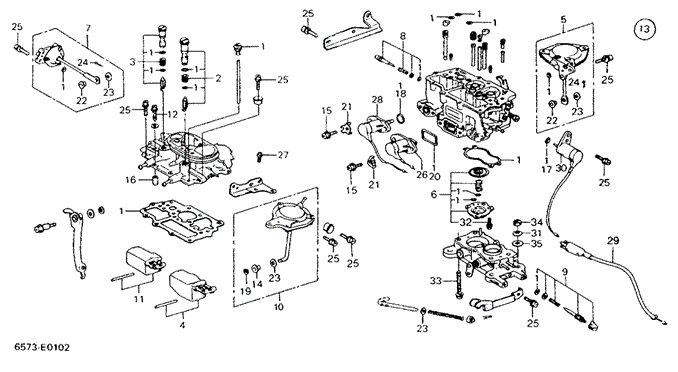

CARBURETOR ASSY. in ENGINE/CARBURETOR ('77) for 1977 Honda CIVIC HATCHBACK

CARBURETOR ASSY. in ENGINE/CARBURETOR ('77) for 1977 Honda CIVIC HATCHBACK #1
4
  • FLOAT SET, MAIN - $26.63
23
  • WASHER, PLAIN (4MM)
13
  • CARBURETOR ASSY.
  • CARBURETOR ASSY.
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
23
  • WASHER, PLAIN (4MM)
1
  • GASKET SET, CARBURETOR
32
  • SCREW-WASHER (4X14) - $0.47
1
  • GASKET SET, CARBURETOR
24
  • PIN, SPLIT - $1.75
25
  • BOLT-WASHER (5X20)
1
  • GASKET SET, CARBURETOR
7
  • DIAPHRAGM SET, CHOKE
1
  • GASKET SET, CARBURETOR
25
  • BOLT-WASHER (5X20)
15
  • BOLT-WASHER (6X20)
10
  • OPENER SET, THROTTLE
23
  • WASHER, PLAIN (4MM)
16
  • PIN, KNOCK
33
  • SCREW-WASHER (6X40)
25
  • BOLT-WASHER (5X20)
6
  • DIAPHRAGM SET, PUMP
8
  • SCREW SET B
21
  • WASHER, MAIN JET COVER
2
  • VALVE SET, MAIN FLOAT
1
  • GASKET SET, CARBURETOR
5
  • DIAPHRAGM ASSY., SET
1
  • GASKET SET, CARBURETOR
18
  • O-RING (18x1.9)
1
  • GASKET SET, CARBURETOR
23
  • WASHER, PLAIN (4MM)
24
  • PIN, SPLIT - $1.75
25
  • BOLT-WASHER (5X20)
25
  • BOLT-WASHER (5X20)
25
  • BOLT-WASHER (5X20)
21
  • WASHER, MAIN JET COVER
1
  • GASKET SET, CARBURETOR
12
  • BOLT-WASHER (5X25)
30
  • VALVE, FUEL MAGNETIC
  • VALVE, FUEL MAGNETIC
11
  • SUB-FLOAT SET - $17.28
26
  • VALVE ASSY., SOLENOID
29
  • WIRE HARNESS, JOINT - $5.92
20
  • O-RING, MAIN JET
3
  • VALVE SET, SUB-FLOAT - $30.10
35
  • WASHER, PLAIN (8MM) - $0.79
25
  • BOLT-WASHER (5X20)
15
  • BOLT-WASHER (6X20)
22
  • COLLAR - $1.49
34
  • NUT, HEX. (8MM) - $0.50
  • NUT, HEX. (8MM)
1
  • GASKET SET, CARBURETOR
25
  • BOLT-WASHER (5X20)
19
  • E-CLIP
1
  • GASKET SET, CARBURETOR
17
  • O-RING (5.8X1.9) - $2.24
1
  • GASKET SET, CARBURETOR
22
  • COLLAR - $1.49
31
  • WASHER, SPRING (8MM)
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
1
  • GASKET SET, CARBURETOR
9
  • SCREW SET A
  • SCREW SET A
27
  • SCREW-WASHER (5X10)
25
  • BOLT-WASHER (5X20)
28
  • VALVE ASSY., SUB-SOLENOID
14
  • COLLAR
No. Part # Part # / Description Qty Req. List Price Price
1 16010-657-671 16010-657-671 / GASKET SET, CARBURETOR

1 - -
2 16011-657-015 16011-657-015 / VALVE SET, MAIN FLOAT

1 - -
3 16012-657-005 16012-657-005 / VALVE SET, SUB-FLOAT

1 $41.80 $30.10
4 16013-657-671 16013-657-671 / FLOAT SET, MAIN

1 $36.98 $26.63
5 16020-671-005 16020-671-005 / DIAPHRAGM ASSY., SET

1 - -
6 16021-657-015 16021-657-015 / DIAPHRAGM SET, PUMP

1 - -
7 16025-671-005 16025-671-005 / DIAPHRAGM SET, CHOKE

1 - -
8 16028-657-671 16028-657-671 / SCREW SET B

1 - -
9 16029-657-671 16029-657-671 / SCREW SET A

1 - -
9 16029-657-821 16029-657-821 / SCREW SET A

1 - -
10 16043-676-005 16043-676-005 / OPENER SET, THROTTLE

1 - -
11 16049-657-671 16049-657-671 / SUB-FLOAT SET

1 $24.00 $17.28
12 16080-657-005 16080-657-005 / BOLT-WASHER (5X25)

2 - -
13 16100-657-672 16100-657-672 / CARBURETOR ASSY.

1 - -
13 16100-657-821 16100-657-821 / CARBURETOR ASSY.

1 - -
14 16131-657-300 16131-657-300 / COLLAR

1 - -
15 16132-657-300 16132-657-300 / BOLT-WASHER (6X20)

4 - -
16 16172-657-005 16172-657-005 / PIN, KNOCK

2 - -
17 16178-548-004 16178-548-004 / O-RING (5.8X1.9)

1 $3.12 $2.24
18 16178-657-300 16178-657-300 / O-RING (18x1.9)

1 - -
19 16179-676-005 16179-676-005 / E-CLIP

1 - -
20 16192-657-310 16192-657-310 / O-RING, MAIN JET

1 - -
21 16198-657-310 16198-657-310 / WASHER, MAIN JET COVER

4 - -
22 16202-657-300 16202-657-300 / COLLAR

2 $2.07 $1.49
23 16203-657-300 16203-657-300 / WASHER, PLAIN (4MM)

6 - -
24 16204-657-300 16204-657-300 / PIN, SPLIT

5 $2.43 $1.75
25 16084-PE0-921 16084-PE0-921 / BOLT-WASHER (5X20)

18 - -
26 16208-657-004 16208-657-004 / VALVE ASSY., SOLENOID

1 - -
27 16209-657-300 16209-657-300 / SCREW-WASHER (5X10)

2 - -
28 16220-657-003 16220-657-003 / VALVE ASSY., SUB-SOLENOID

1 - -
29 16225-657-003 16225-657-003 / WIRE HARNESS, JOINT

1 $8.22 $5.92
30 16230-PA5-015 16230-PA5-015 / VALVE, FUEL MAGNETIC

1 - -
30 16230-PA5-015 16230-PA5-015 / VALVE, FUEL MAGNETIC

1 - -
31 90409-657-000 90409-657-000 / WASHER, SPRING (8MM)

4 - -
32 93892-04014-08 93892-04014-08 / SCREW-WASHER (4X14)

5 $0.65 $0.47
33 93892-06040-08 93892-06040-08 / SCREW-WASHER (6X40)

5 - -
34 94002-08000-0S 94002-08000-0S / NUT, HEX. (8MM)

4 $0.70 $0.50
34 94002-08280-0S 94002-08280-0S / NUT, HEX. (8MM)

4 - -
35 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

4 $1.10 $0.79
36 06160-657-023 06160-657-023 / OVERHAUL KIT, CARBURETOR

1 - -
37 06161-657-013 06161-657-013 / GASKET KIT, CARBURETOR ON-CAR

1 - -
