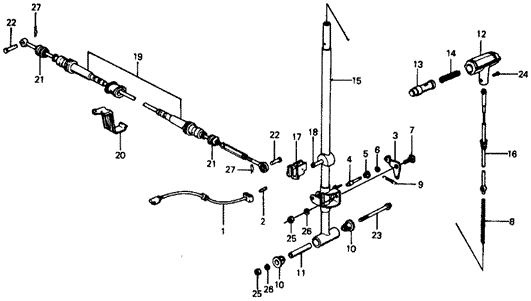

WIRE, CONTROL in CHASSIS/HMT SELECT LEVER for 1977 Honda CIVIC HATCHBACK

WIRE, CONTROL in CHASSIS/HMT SELECT LEVER for 1977 Honda CIVIC HATCHBACK #1
23
  • BOLT, HEX. (6x55)
  • BOLT, HEX. (6X55) - $0.77
6
  • CLIP, LOCK PIN
21
  • PIN, CONTROL ROD
  • BOOT, CONTROL CABLE
26
  • WASHER, SPRING (6MM) - $0.43
22
  • PIN, CONTROL ROD
20
  • HOLDER, CONTROL CABLE
12
  • KNOB, SELECT LEVER
  • KNOB, SELECTOR LEVER
15
  • LEVER, SELECTOR
16
  • ROD, LOCK PIN
4
  • PIN, LOCK
10
  • BUSH, SELECTOR LEVER
26
  • WASHER, SPRING (6MM) - $0.43
18
  • GUIDE, SELECTOR LEVER COVER
1
  • LEAD ASSY., INDICATOR LAMP
  • LEAD ASSY., INDICATOR LAMP
3
  • STOPPER, SELECTOR LEVER
5
  • COLLAR, LOCK PIN
27
  • PIN, LOCK (8MM) - $0.50
22
  • PIN, CONTROL ROD
11
  • COLLAR, SELECT LEVER
25
  • NUT, HEX. (6MM) - $0.49
17
  • CASE, INDICATOR LAMP
19
  • WIRE, CONTROL
14
  • SPRING, PUSH KNOB
13
  • KNOB, PUSH
9
  • SPRING, SELECTOR STOP
8
  • SPRING, LOCK PIN
21
  • PIN, CONTROL ROD
  • BOOT, CONTROL CABLE
2
  • BULB, INDICATOR LIGHT
24
  • SCREW, OVAL (4X6) - $0.40
27
  • PIN, LOCK (8MM) - $0.50
10
  • BUSH, SELECTOR LEVER
7
  • BOLT, SELECTOR LEVER STOP
25
  • NUT, HEX. (6MM) - $0.49
No. Part # Part # / Description Qty Req. List Price Price
1 37700-647-770 37700-647-770 / LEAD ASSY., INDICATOR LAMP

1 - -
1 37700-634-981 37700-634-981 / LEAD ASSY., INDICATOR LAMP

1 - -
2 37710-580-000 37710-580-000 / BULB, INDICATOR LIGHT

1 - -
3 54110-634-770 54110-634-770 / STOPPER, SELECTOR LEVER

1 - -
4 54112-609-000 54112-609-000 / PIN, LOCK

1 - -
5 54113-609-000 54113-609-000 / COLLAR, LOCK PIN

1 - -
6 54114-609-000 54114-609-000 / CLIP, LOCK PIN

1 - -
7 54115-634-980 54115-634-980 / BOLT, SELECTOR LEVER STOP

1 - -
8 54117-609-000 54117-609-000 / SPRING, LOCK PIN

1 - -
9 54118-634-981 54118-634-981 / SPRING, SELECTOR STOP

1 - -
10 54121-609-300 54121-609-300 / BUSH, SELECTOR LEVER

2 - -
11 54123-634-980 54123-634-980 / COLLAR, SELECT LEVER

1 - -
12 54131-657-405 54131-657-405 / KNOB, SELECT LEVER

1 - -
12 54131-657-405 54131-657-405 / KNOB, SELECTOR LEVER

1 - -
13 54132-657-980 54132-657-980 / KNOB, PUSH

1 - -
14 54133-609-000 54133-609-000 / SPRING, PUSH KNOB

1 - -
15 54135-634-770 54135-634-770 / LEVER, SELECTOR

1 - -
16 54136-634-980 54136-634-980 / ROD, LOCK PIN

1 - -
17 54211-634-981 54211-634-981 / CASE, INDICATOR LAMP

1 - -
18 54215-591-030 54215-591-030 / GUIDE, SELECTOR LEVER COVER

1 - -
19 54315-659-982 54315-659-982 / WIRE, CONTROL

1 - -
20 54317-659-981 54317-659-981 / HOLDER, CONTROL CABLE

1 - -
21 54347-581-000 54347-581-000 / PIN, CONTROL ROD

1 - -
21 54341-581-300 54341-581-300 / BOOT, CONTROL CABLE

2 - -
22 54347-634-980 54347-634-980 / PIN, CONTROL ROD

1 - -
23 92200-06055 92200-06055 / BOLT, HEX. (6x55)

1 - -
23 92201-06055-0H 92201-06055-0H / BOLT, HEX. (6X55)

1 $1.07 $0.77
24 93700-04006-0G 93700-04006-0G / SCREW, OVAL (4X6)

2 $0.55 $0.40
25 94001-06080-0S 94001-06080-0S / NUT, HEX. (6MM)

2 $0.68 $0.49
26 94111-06800 94111-06800 / WASHER, SPRING (6MM)

2 $0.60 $0.43
27 94251-08000 94251-08000 / PIN, LOCK (8MM)

2 $0.70 $0.50
