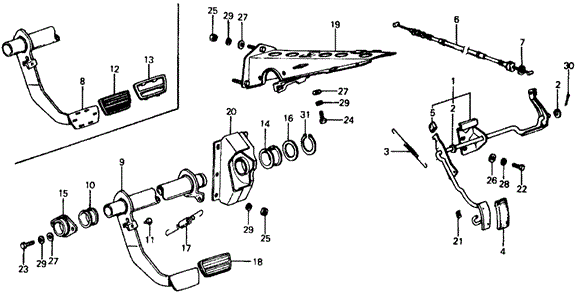

BRACKET, PEDAL in CHASSIS/HMT PEDAL for 1977 Honda CIVIC HATCHBACK

BRACKET, PEDAL in CHASSIS/HMT PEDAL for 1977 Honda CIVIC HATCHBACK #1
30
  • PIN, SPLIT (2.0X35) - $0.54
26
  • WASHER, PLAIN (6MM) - $0.25
29
  • WASHER, SPRING (8MM) - $0.38
2
  • WASHER, ACCELERATOR PEDAL - $1.50
25
  • NUT, HEX. (8MM) - $0.43
3
  • SPRING, ACCELERATOR PEDAL
4
  • COVER, ACCELERATOR PEDAL
10
  • BUSH, PEDAL
24
  • BOLT, HEX. (8X16) - $0.60
25
  • NUT, HEX. (8MM) - $0.43
27
  • WASHER, PLAIN (8MM) - $0.79
6
  • CABLE ASSY., THROTTLE
21
  • CLIP, ACCELERATOR PEDAL
31
  • CIRCLIP, OUTER (32MM) - $0.76
15
  • HOLDER, PEDAL SHAFT
20
  • BRACKET, MASTER CYLINDER
27
  • WASHER, PLAIN (8MM) - $0.79
7
  • SEAL, THROTTLE CABLE
28
  • WASHER, SPRING (6MM) - $0.43
23
  • BOLT, HEX. (8X12) - $0.47
22
  • BOLT, HEX. (6X16) - $0.56
16
  • WASHER, PEDAL
29
  • WASHER, SPRING (8MM) - $0.38
17
  • SPRING, PEDAL RETURN
14
  • BUSH, MASTER CYLINDER BRACKET
11
  • PAD, PEDAL STOPPER - $1.75
  • PAD, PEDAL STOPPER - $1.75
18
  • COVER, PEDAL
29
  • WASHER, SPRING (8MM) - $0.38
2
  • WASHER, ACCELERATOR PEDAL - $1.50
29
  • WASHER, SPRING (8MM) - $0.38
5
  • STOPPER, ACCELERATOR PEDAL
9
  • PEDAL, BRAKE
19
  • BRACKET, PEDAL
27
  • WASHER, PLAIN (8MM) - $0.79
1
  • PEDAL, ACCELERATOR
No. Part # Part # / Description Qty Req. List Price Price
1 17810-634-673 17810-634-673 / PEDAL, ACCELERATOR

1 - -
2 17812-SA7-010 17812-SA7-010 / WASHER, ACCELERATOR PEDAL

2 $2.08 $1.50
3 17814-659-000 17814-659-000 / SPRING, ACCELERATOR PEDAL

1 - -
4 17816-659-300 17816-659-300 / COVER, ACCELERATOR PEDAL

1 - -
5 17832-611-000 17832-611-000 / STOPPER, ACCELERATOR PEDAL

1 - -
6 17910-657-673 17910-657-673 / CABLE ASSY., THROTTLE

1 - -
7 17921-538-010 17921-538-010 / SEAL, THROTTLE CABLE

1 - -
9 46501-634-773 46501-634-773 / PEDAL, BRAKE

1 - -
10 46504-634-670 46504-634-670 / BUSH, PEDAL

1 - -
11 46505-SA5-010 46505-SA5-010 / PAD, PEDAL STOPPER

1 $2.43 $1.75
11 46505-SA5-000 46505-SA5-000 / PAD, PEDAL STOPPER

1 $2.43 $1.75
14 46509-634-670 46509-634-670 / BUSH, MASTER CYLINDER BRACKET

1 - -
15 46510-634-770 46510-634-770 / HOLDER, PEDAL SHAFT

1 - -
16 46513-634-670 46513-634-670 / WASHER, PEDAL

2 - -
17 46530-634-671 46530-634-671 / SPRING, PEDAL RETURN

1 - -
18 46545-634-980 46545-634-980 / COVER, PEDAL

1 - -
19 46590-657-671 46590-657-671 / BRACKET, PEDAL

1 - -
20 46595-634-671 46595-634-671 / BRACKET, MASTER CYLINDER

1 - -
21 90660-671-000 90660-671-000 / CLIP, ACCELERATOR PEDAL

2 - -
22 92101-06016-0H 92101-06016-0H / BOLT, HEX. (6X16)

2 $0.78 $0.56
23 92101-08012-0H 92101-08012-0H / BOLT, HEX. (8X12)

2 $0.78 $0.47
24 92101-08016-0H 92101-08016-0H / BOLT, HEX. (8X16)

1 $0.83 $0.60
25 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

7 $0.60 $0.43
26 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

2 $0.35 $0.25
27 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

3 $1.10 $0.79
28 94111-06800 94111-06800 / WASHER, SPRING (6MM)

2 $0.60 $0.43
29 94111-08800 94111-08800 / WASHER, SPRING (8MM)

10 $0.53 $0.38
30 94201-20350 94201-20350 / PIN, SPLIT (2.0X35)

1 $0.75 $0.54
31 94510-32000 94510-32000 / CIRCLIP, OUTER (32MM)

1 $1.05 $0.76
