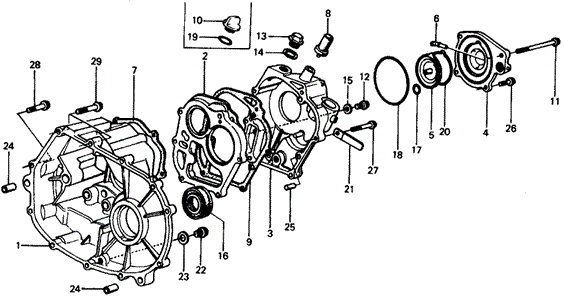

HOUSING, TRANSMISSION in TRANSMISSION - MANUAL/5MT TRANSMISSION HOUSING for 1977 Honda CIVIC HATCHBACK

HOUSING, TRANSMISSION in TRANSMISSION - MANUAL/5MT TRANSMISSION HOUSING for 1977 Honda CIVIC HATCHBACK #1
20
  • O-RING (42MM) - $1.52
25
  • PIN, DOWEL (8X14) - $0.84
  • PIN, DOWEL (8X14) - $0.80
2
  • SPACER, TRANSMISSION CASE
21
  • CLIP, WIRE HARNESS
29
  • BOLT, FLANGE (8X45) - $0.92
  • BOLT, FLANGE (8X45) - $0.92
17
  • O-RING (9.4X2.4) - $1.00
  • O-RING (9.4X2.4) - $1.00
22
  • BOLT, DRAIN PLUG (14MM) - $1.73
18
  • O-RING (64.5X3) (ARAI) - $4.07
19
  • O-RING (27X2.7)
23
  • WASHER, DRAIN PLUG (14MM) - $0.28
15
  • WASHER, SEALING (8MM) - $1.56
24
  • PIN, DOWEL (14X20) - $0.98
11
  • BOLT, FLANGE (6x85)
12
  • BOLT, OIL CHECK
8
  • CAP, BREATHER
9
  • GASKET, TRANSMISSION CASE SPACER
16
  • OIL SEAL (35X56X9) (NOK) - $6.65
24
  • PIN, DOWEL (14X20) - $0.98
28
  • BOLT, FLANGE (8X40) - $0.92
10
  • CAP, LEVEL GAUGE
7
  • GASKET, TRANSMISSION CASE
3
  • COVER, TRANSMISSION
1
  • HOUSING, TRANSMISSION
  • HOUSING, TRANSMISSION
26
  • BOLT, FLANGE (6X20) - $0.16
27
  • BOLT, FLANGE (6X45) - $0.86
No. Part # Part # / Description Qty Req. List Price Price
1 21200-634-000 21200-634-000 / HOUSING, TRANSMISSION

1 - -
1 21200-634-305 21200-634-305 / HOUSING, TRANSMISSION

1 - -
2 21301-634-960 21301-634-960 / SPACER, TRANSMISSION CASE

1 - -
3 21310-634-961 21310-634-961 / COVER, TRANSMISSION

1 - -
7 21395-634-S60 21395-634-S60 / GASKET, TRANSMISSION CASE

1 - -
8 21397-634-000 21397-634-000 / CAP, BREATHER

1 - -
9 21399-634-S60 21399-634-S60 / GASKET, TRANSMISSION CASE SPACER

1 - -
10 25611-371-000 25611-371-000 / CAP, LEVEL GAUGE

1 - -
11 90035-634-960 90035-634-960 / BOLT, FLANGE (6x85)

2 - -
12 90065-634-960 90065-634-960 / BOLT, OIL CHECK

1 - -
15 90474-333-000 90474-333-000 / WASHER, SEALING (8MM)

1 $2.17 $1.56
16 91205-611-005 91205-611-005 / OIL SEAL (35X56X9) (NOK)

1 $9.23 $6.65
17 91304-KK3-830 91304-KK3-830 / O-RING (9.4X2.4)

1 $1.38 $1.00
17 91304-KK3-830 91304-KK3-830 / O-RING (9.4X2.4)

1 $1.38 $1.00
18 91310-MG7-003 91310-MG7-003 / O-RING (64.5X3) (ARAI)

1 $5.65 $4.07
19 91318-500-000 91318-500-000 / O-RING (27X2.7)

1 - -
20 91304-704-000 91304-704-000 / O-RING (42MM)

1 $2.12 $1.52
21 91401-611-000 91401-611-000 / CLIP, WIRE HARNESS

1 - -
22 92800-14000 92800-14000 / BOLT, DRAIN PLUG (14MM)

1 $2.40 $1.73
23 94109-14000 94109-14000 / WASHER, DRAIN PLUG (14MM)

1 $0.38 $0.28
24 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.98
25 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.84
25 94303-08140 94303-08140 / PIN, DOWEL (8X14)

2 $1.12 $0.80
26 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

2 $0.22 $0.16
27 95701-06045-08 95701-06045-08 / BOLT, FLANGE (6X45)

4 $1.20 $0.86
28 95701-08040-08 95701-08040-08 / BOLT, FLANGE (8X40)

9 $1.28 $0.92
29 95701-08045-08 95701-08045-08 / BOLT, FLANGE (8X45)

2 $1.28 $0.92
29 95700-08045-08 95700-08045-08 / BOLT, FLANGE (8X45)

2 $1.28 $0.92
