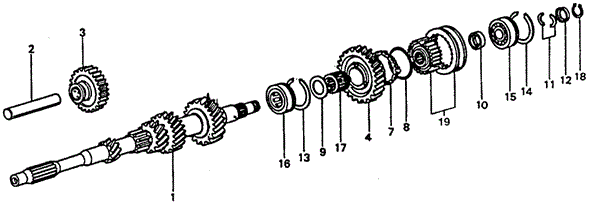

MAINSHAFT in TRANSMISSION - MANUAL/5MT MAINSHAFT - MAINSHAFT GEARS for 1977 Honda CIVIC HATCHBACK

MAINSHAFT in TRANSMISSION - MANUAL/5MT MAINSHAFT - MAINSHAFT GEARS for 1977 Honda CIVIC HATCHBACK #1
7
  • RING, SYNCHRONIZER BLOCKING
9
  • PLATE, THRUST (25MM)
12
  • WASHER, THRUST (17MM)
3
  • GEAR, REVERSE IDLE
17
  • BEARING, NEEDLE (25X30X20) (TOYO) - $12.68
  • BEARING, NEEDLE (25X30X20) (NTN CORP.) - $12.68
1
  • MAINSHAFT
15
  • BEARING, BALL (47MM) (TOYO)
11
  • COTTER (17MM)
2
  • SHAFT, REVERSE IDLE GEAR
19
  • SLEEVE, SYNCHRONIZER FIFTH
4
  • GEAR, MAINSHAFT FIFTH
  • GEAR, MAINSHAFT FIFTH
14
  • RING, SNAP (47MM)
18
  • CIRCLIP (OUTER) (17MM) - $0.53
10
  • COLLAR, DISTANCE
8
  • SPRING, SYNCHRONIZER
13
  • RING, SNAP (48MM)
16
  • BEARING, SPECIAL NEEDLE
