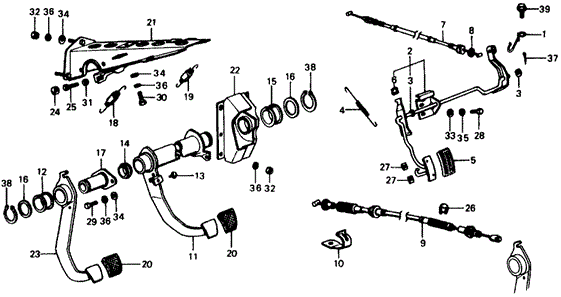

BRACKET, PEDAL in CHASSIS/MT PEDAL for 1977 Honda CIVIC HATCHBACK

BRACKET, PEDAL in CHASSIS/MT PEDAL for 1977 Honda CIVIC HATCHBACK #1
20
  • COVER, PEDAL
27
  • CLIP, ACCELERATOR PEDAL
34
  • WASHER, PLAIN (8MM) - $0.79
32
  • NUT, HEX. (8MM) - $0.43
33
  • WASHER, PLAIN (6MM) - $0.25
5
  • COVER, ACCELERATOR PEDAL
18
  • SPRING ASSY., PEDAL RETURN
26
  • CLIP, CLUTCH WIRE
4
  • SPRING, ACCELERATOR PEDAL
34
  • WASHER, PLAIN (8MM) - $0.79
36
  • WASHER, SPRING (8MM) - $0.38
21
  • BRACKET, PEDAL
37
  • PIN, SPLIT (2.0X35) - $0.54
34
  • WASHER, PLAIN (8MM) - $0.79
38
  • CIRCLIP (OUTER) (32MM) - $0.76
16
  • WASHER, PEDAL
30
  • BOLT, HEX. (8X16) - $0.60
12
  • BUSH B, PEDAL
3
  • WASHER, ACCELERATOR PEDAL - $1.50
35
  • WASHER, SPRING (6MM) - $0.43
24
  • PAD, CLUTCH PEDAL
13
  • PAD, PEDAL STOPPER - $1.75
  • PAD, PEDAL STOPPER - $1.75
20
  • COVER, PEDAL
16
  • WASHER, PEDAL
6
  • STOPPER, ACCELERATOR PEDAL
19
  • SPRING, PEDAL RETURN
7
  • CABLE ASSY., THROTTLE
15
  • BUSH, MASTER CYLINDER BRACKET
22
  • BRACKET, MASTER CYLINDER
32
  • NUT, HEX. (8MM) - $0.43
9
  • CABLE ASSY., CLUTCH
25
  • STOPPER, PEDAL
36
  • WASHER, SPRING (8MM) - $0.38
28
  • BOLT, HEX. (6X16) - $0.56
3
  • WASHER, ACCELERATOR PEDAL - $1.50
10
  • CLIP, CLUTCH CABLE
11
  • PEDAL, BRAKE
1
  • CLAMP, CLUTCH CABLE
2
  • PEDAL, ACCELERATOR
39
  • BOLT, FLANGE (10X12) - $0.90
17
  • HOLDER, CLUTCH PEDAL
23
  • PEDAL, CLUTCH
29
  • BOLT, HEX. (8X12) - $0.47
36
  • WASHER, SPRING (8MM) - $0.38
36
  • WASHER, SPRING (8MM) - $0.38
8
  • SEAL, THROTTLE CABLE
27
  • CLIP, ACCELERATOR PEDAL
38
  • CIRCLIP (OUTER) (32MM) - $0.76
14
  • BUSH, PEDAL HOLDER
31
  • NUT, HEX. (6MM) - $0.20
  • NUT, HEX. (6MM) - $0.20
No. Part # Part # / Description Qty Req. List Price Price
1 16220-657-671 16220-657-671 / CLAMP, CLUTCH CABLE

1 - -
2 17810-634-673 17810-634-673 / PEDAL, ACCELERATOR

1 - -
3 17812-SA7-010 17812-SA7-010 / WASHER, ACCELERATOR PEDAL

2 $2.08 $1.50
4 17814-659-000 17814-659-000 / SPRING, ACCELERATOR PEDAL

1 - -
5 17816-659-300 17816-659-300 / COVER, ACCELERATOR PEDAL

1 - -
6 17832-611-000 17832-611-000 / STOPPER, ACCELERATOR PEDAL

1 - -
7 17910-657-673 17910-657-673 / CABLE ASSY., THROTTLE

1 - -
8 17921-538-010 17921-538-010 / SEAL, THROTTLE CABLE

1 - -
9 22910-657-670 22910-657-670 / CABLE ASSY., CLUTCH

1 - -
10 22920-657-670 22920-657-670 / CLIP, CLUTCH CABLE

1 - -
11 46500-634-672 46500-634-672 / PEDAL, BRAKE

1 - -
12 46505-634-670 46505-634-670 / BUSH B, PEDAL

1 - -
13 46505-SA5-000 46505-SA5-000 / PAD, PEDAL STOPPER

1 $2.43 $1.75
13 46505-SA5-010 46505-SA5-010 / PAD, PEDAL STOPPER

1 $2.43 $1.75
14 46508-634-670 46508-634-670 / BUSH, PEDAL HOLDER

1 - -
15 46509-634-670 46509-634-670 / BUSH, MASTER CYLINDER BRACKET

1 - -
16 46513-634-670 46513-634-670 / WASHER, PEDAL

3 - -
17 46515-634-670 46515-634-670 / HOLDER, CLUTCH PEDAL

1 - -
18 46530-SA0-900 46530-SA0-900 / SPRING ASSY., PEDAL RETURN

1 - -
19 46530-634-671 46530-634-671 / SPRING, PEDAL RETURN

1 - -
20 46545-SA7-000 46545-SA7-000 / COVER, PEDAL

2 - -
21 46590-657-671 46590-657-671 / BRACKET, PEDAL

1 - -
22 46595-634-671 46595-634-671 / BRACKET, MASTER CYLINDER

1 - -
23 46900-634-670 46900-634-670 / PEDAL, CLUTCH

1 - -
24 46904-579-300 46904-579-300 / PAD, CLUTCH PEDAL

1 - -
25 46905-579-300 46905-579-300 / STOPPER, PEDAL

1 - -
26 90653-659-000 90653-659-000 / CLIP, CLUTCH WIRE

1 - -
27 90660-671-000 90660-671-000 / CLIP, ACCELERATOR PEDAL

2 - -
28 92101-06016-0H 92101-06016-0H / BOLT, HEX. (6X16)

2 $0.78 $0.56
29 92101-08012-0H 92101-08012-0H / BOLT, HEX. (8X12)

2 $0.78 $0.47
30 92101-08016-0H 92101-08016-0H / BOLT, HEX. (8X16)

1 $0.83 $0.60
31 94001-06200-0S 94001-06200-0S / NUT, HEX. (6MM)

1 $0.28 $0.20
31 94001-06200-0S 94001-06200-0S / NUT, HEX. (6MM)

1 $0.28 $0.20
32 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

7 $0.60 $0.43
33 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

2 $0.35 $0.25
34 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

6 $1.10 $0.79
35 94111-06800 94111-06800 / WASHER, SPRING (6MM)

2 $0.60 $0.43
36 94111-08800 94111-08800 / WASHER, SPRING (8MM)

10 $0.53 $0.38
37 94201-20350 94201-20350 / PIN, SPLIT (2.0X35)

1 $0.75 $0.54
38 94510-32000 94510-32000 / CIRCLIP (OUTER) (32MM)

2 $1.05 $0.76
39 95701-10012-08 95701-10012-08 / BOLT, FLANGE (10X12)

1 $1.25 $0.90
