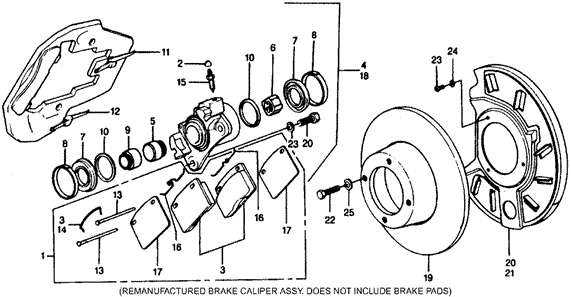

CHASSIS/DISK BRAKE for 1977 Honda CIVIC HATCHBACK

Select DISK BRAKE Part

1977 Honda CIVIC HATCHBACK

Change vehicle

No. Part # Part # / Description List Price Price
3 45022-659-317 45022-659-317 / BRAKE PAD KIT, DISK

- -
3 45022-659-317 45022-659-317 / BRAKE PAD KIT, DISK

- -
2 43353-548-003 43353-548-003 / CAP, BLEEDER SCREW

$2.90 $2.09
2 45225-579-013 45225-579-013 / CAP, BLEEDER SCREW (TOKIKO)

$3.15 $2.27
4 45210-657-672 45210-657-672 / CALIPER ASSY., R.

$326.13 $234.82
4 45210-657-672 45210-657-672 / CALIPER ASSY., R.

$326.13 $234.82
5 45212-579-003 45212-579-003 / PISTON A

- -
6 45213-579-013 45213-579-013 / RING, BIAS

- -
7 45214-579-003 45214-579-003 / BOOT, PISTON

- -
8 45215-579-003 45215-579-003 / RING, RETAINING

- -
9 45216-579-003 45216-579-003 / PISTON B

- -
10 45217-579-003 45217-579-003 / SEAL, PISTON

$19.78 $14.24
11 45218-659-003 45218-659-003 / SPRING A, YOKE

- -
11 45218-659-013 45218-659-013 / SPRING A, YOKE

- -
12 45219-659-003 45219-659-003 / SPRING B, YOKE

- -
12 45219-659-013 45219-659-013 / SPRING B, YOKE

- -
13 45220-657-671 45220-657-671 / PIN, PAD RETAINING

- -
14 45222-579-013 45222-579-013 / CLIP, PAD RETAINING

- -
15 45224-579-013 45224-579-013 / VALVE, BLEEDER (TOKIKO)

$11.96 $8.60
15 45224-533-004 45224-533-004 / SCREW, BLEEDER

- -
16 45227-659-003 45227-659-003 / SPRING, PAD

- -
17 45228-659-023 45228-659-023 / SHIM, BRAKE PAD

- -
18 45230-657-672 45230-657-672 / CALIPER ASSY., L.

$611.53 $440.30
19 45251-634-921 45251-634-921 / DISK, FR. BRAKE

- -
20 45255-657-672 45255-657-672 / SPLASH GUARD, R.

- -
21 45256-657-672 45256-657-672 / SPLASH GUARD, L.

- -
22 90107-579-000 90107-579-000 / BOLT, HEX. (10X26)

- -
23 93500-06012-0A 93500-06012-0A / SCREW, PAN (6X12)

$0.60 $0.43
24 94111-06000 94111-06000 / WASHER, SPRING (6MM)

$0.50 $0.36
25 94111-10800 94111-10800 / WASHER, SPRING (10MM)

$0.63 $0.46
