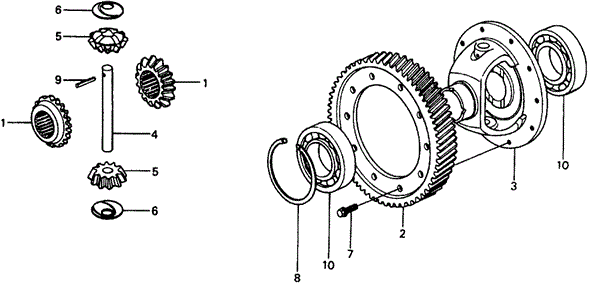

GEAR, FINAL DRIVEN in TRANSMISSION - MANUAL/MT DIFFERENTIAL GEAR for 1977 Honda CIVIC COUPE

GEAR, FINAL DRIVEN in TRANSMISSION - MANUAL/MT DIFFERENTIAL GEAR for 1977 Honda CIVIC COUPE #1
2
  • GEAR, FINAL DRIVEN
  • GEAR, FINAL DRIVEN
3
  • CASE, DIFFERENTIAL
8
  • RING, SNAP (72MM) (2.75MM)
  • RING, SNAP (72MM) (2.45MM)
  • RING, SNAP (72MM) (2.65MM)
  • RING, SNAP (72MM) (2.55MM)
  • RING, SNAP (72MM) (2.85MM)
  • RING, SNAP (72MM) (2.95MM)
6
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER A, DIFFERENTIAL PINION (0.7MM) - $4.28
  • WASHER B, DIFFERENTIAL PINION (0.8MM) - $4.28
5
  • PINION, DIFFERENTIAL
7
  • BOLT, FLANGE (10MM) - $3.73
1
  • GEAR, DIFFERENTIAL SIDE - $25.20
6
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER A, DIFFERENTIAL PINION (0.7MM) - $4.28
  • WASHER B, DIFFERENTIAL PINION (0.8MM) - $4.28
10
  • BEARING, RADIAL BALL (6207) - $19.18
  • BEARING, RADIAL BALL (6207) - $19.18
5
  • PINION, DIFFERENTIAL
1
  • GEAR, DIFFERENTIAL SIDE - $25.20
9
  • PIN, SPRING (4X28) - $0.86
10
  • BEARING, RADIAL BALL (6207) - $19.18
  • BEARING, RADIAL BALL (6207) - $19.18
4
  • SHAFT, PINION
