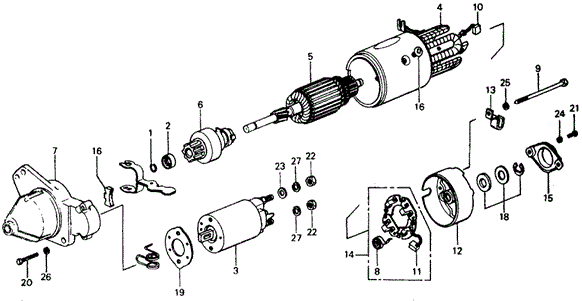

PINION in ENGINE/STARTER MOTOR COMPONENTS (HITACHI) ('77) (KL) for 1977 Honda CIVIC COUPE

PINION in ENGINE/STARTER MOTOR COMPONENTS (HITACHI) ('77) (KL) for 1977 Honda CIVIC COUPE #1
9
  • BOLT, THROUGH
11
  • BRUSH (NEGATIVE)
21
  • SCREW, PAN (4X12) - $0.40
22
  • NUT, HEX. (8MM) - $0.43
27
  • WASHER, SPRING (8MM) - $0.38
23
  • WASHER, PLAIN (8MM) - $0.79
27
  • WASHER, SPRING (8MM) - $0.38
12
  • COVER, RR.
10
  • BRUSH (POSITIVE)
24
  • WASHER, SPRING (4MM) - $0.38
22
  • NUT, HEX. (8MM) - $0.43
14
  • HOLDER COMP., BRUSH - $33.12
25
  • WASHER, SPRING (5MM) - $0.43
2
  • STOPPER, PINION
19
  • COVER SET, DUST
6
  • PINION
8
  • SPRING, BRUSH
26
  • WASHER, SPRING (6MM) - $0.43
18
  • WASHER KIT, THRUST (HITACHI)
7
  • CASE, GEAR
15
  • COVER D, DUST
16
  • COVER C, DUST
16
  • COVER C, DUST
1
  • CLIP, PINION STOPPER
20
  • BOLT, HEX. (6X32) - $0.66
13
  • CLIP, WIRE
  • CLIP, WIRE
No. Part # Part # / Description Qty Req. List Price Price
1 31201-634-005 31201-634-005 / CLIP, PINION STOPPER

1 - -
2 31202-634-005 31202-634-005 / STOPPER, PINION

1 - -
6 31207-634-005 31207-634-005 / PINION

1 - -
7 31208-679-005 31208-679-005 / CASE, GEAR

1 - -
8 31212-634-005 31212-634-005 / SPRING, BRUSH

4 - -
9 31214-634-811 31214-634-811 / BOLT, THROUGH

2 - -
10 31215-634-005 31215-634-005 / BRUSH (POSITIVE)

2 - -
11 31216-634-005 31216-634-005 / BRUSH (NEGATIVE)

2 - -
12 31219-634-015 31219-634-015 / COVER, RR.

1 - -
13 31229-657-005 31229-657-005 / CLIP, WIRE

1 - -
13 31229-634-005 31229-634-005 / CLIP, WIRE

1 - -
14 31231-679-305 31231-679-305 / HOLDER COMP., BRUSH

1 $46.00 $33.12
15 31232-634-015 31232-634-015 / COVER D, DUST

1 - -
16 31236-634-005 31236-634-005 / COVER C, DUST

1 - -
17 31237-634-005 31237-634-005 / SCREW, FIELD COIL SETTING

4 $4.00 $2.88
18 31271-634-005 31271-634-005 / WASHER KIT, THRUST (HITACHI)

1 - -
19 31281-634-005 31281-634-005 / COVER SET, DUST

1 - -
20 92101-06032-0A 92101-06032-0A / BOLT, HEX. (6X32)

2 $0.92 $0.66
21 93500-04012-0H 93500-04012-0H / SCREW, PAN (4X12)

2 $0.55 $0.40
22 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

2 $0.60 $0.43
23 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

1 $1.10 $0.79
24 94111-04800 94111-04800 / WASHER, SPRING (4MM)

2 $0.53 $0.38
25 94111-05800 94111-05800 / WASHER, SPRING (5MM)

1 $0.60 $0.43
26 94111-06800 94111-06800 / WASHER, SPRING (6MM)

2 $0.60 $0.43
27 94111-08800 94111-08800 / WASHER, SPRING (8MM)

2 $0.53 $0.38
