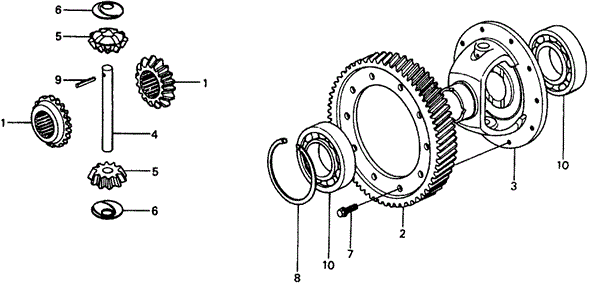

GEAR, FINAL DRIVEN in TRANSMISSION - MANUAL/MT DIFFERENTIAL GEAR for 1976 Honda CIVIC HATCHBACK

GEAR, FINAL DRIVEN in TRANSMISSION - MANUAL/MT DIFFERENTIAL GEAR for 1976 Honda CIVIC HATCHBACK #1
2
  • GEAR, FINAL DRIVEN
  • GEAR, FINAL DRIVEN
  • GEAR, FINAL DRIVEN
3
  • CASE, DIFFERENTIAL
  • CASE, DIFFERENTIAL
8
  • RING, SNAP (72MM) (2.75MM)
  • RING, SNAP (72MM) (2.45MM)
  • RING, SNAP (72MM) (2.65MM)
  • RING, SNAP (72MM) (2.55MM)
  • RING, SNAP (72MM) (2.85MM)
  • RING, SNAP (72MM) (2.95MM)
6
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER B, DIFFERENTIAL PINION (0.8MM) - $4.28
  • WASHER A, DIFFERENTIAL PINION (0.7MM) - $4.28
5
  • PINION, DIFFERENTIAL
7
  • BOLT, FLANGE (10MM) - $3.73
1
  • GEAR, DIFFERENTIAL SIDE - $25.20
6
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER C, DIFFERENTIAL PINION (0.9MM) - $4.28
  • WASHER B, DIFFERENTIAL PINION (0.8MM) - $4.28
  • WASHER A, DIFFERENTIAL PINION (0.7MM) - $4.28
10
  • BEARING, RADIAL BALL (6207) - $19.18
  • BEARING, RADIAL BALL (6207) - $19.18
5
  • PINION, DIFFERENTIAL
1
  • GEAR, DIFFERENTIAL SIDE - $25.20
9
  • PIN, SPRING (4X28) - $0.86
10
  • BEARING, RADIAL BALL (6207) - $19.18
  • BEARING, RADIAL BALL (6207) - $19.18
4
  • SHAFT, PINION
No. Part # Part # / Description Qty Req. List Price Price
1 41221-634-000 41221-634-000 / GEAR, DIFFERENTIAL SIDE

2 $34.99 $25.20
2 41233-657-670 41233-657-670 / GEAR, FINAL DRIVEN

1 - -
2 41233-642-000 41233-642-000 / GEAR, FINAL DRIVEN

1 - -
2 41233-657-780 41233-657-780 / GEAR, FINAL DRIVEN

1 - -
3 41311-634-010 41311-634-010 / CASE, DIFFERENTIAL

1 - -
3 41311-657-000 41311-657-000 / CASE, DIFFERENTIAL

1 - -
4 41321-634-010 41321-634-010 / SHAFT, PINION

1 - -
5 41341-634-020 41341-634-020 / PINION, DIFFERENTIAL

2 - -
6 41353-634-000 41353-634-000 / WASHER C, DIFFERENTIAL PINION (0.9MM)

2 $5.95 $4.28
6 41353-689-000 41353-689-000 / WASHER C, DIFFERENTIAL PINION (0.9MM)

2 $5.95 $4.28
6 41352-689-000 41352-689-000 / WASHER B, DIFFERENTIAL PINION (0.8MM)

2 $5.95 $4.28
6 41351-689-000 41351-689-000 / WASHER A, DIFFERENTIAL PINION (0.7MM)

2 $5.95 $4.28
7 90015-634-010 90015-634-010 / BOLT, FLANGE (10MM)

10 $5.18 $3.73
8 90417-634-000 90417-634-000 / RING, SNAP (72MM) (2.75MM)

1 - -
8 90414-634-000 90414-634-000 / RING, SNAP (72MM) (2.45MM)

1 - -
8 90416-634-000 90416-634-000 / RING, SNAP (72MM) (2.65MM)

1 - -
8 90415-634-000 90415-634-000 / RING, SNAP (72MM) (2.55MM)

1 - -
8 90418-634-000 90418-634-000 / RING, SNAP (72MM) (2.85MM)

1 - -
8 90419-634-000 90419-634-000 / RING, SNAP (72MM) (2.95MM)

1 - -
9 94305-40282 94305-40282 / PIN, SPRING (4X28)

1 $1.20 $0.86
10 96100-62070-00 96100-62070-00 / BEARING, RADIAL BALL (6207)

2 $26.63 $19.18
10 96100-62070-00 96100-62070-00 / BEARING, RADIAL BALL (6207)

2 $26.63 $19.18
