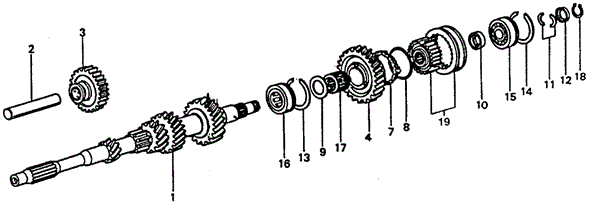

MAINSHAFT in TRANSMISSION - MANUAL/5MT MAINSHAFT - MAINSHAFT GEARS for 1976 Honda CIVIC HATCHBACK

MAINSHAFT in TRANSMISSION - MANUAL/5MT MAINSHAFT - MAINSHAFT GEARS for 1976 Honda CIVIC HATCHBACK #1
2
  • SHAFT, REVERSE IDLE GEAR
  • SHAFT, REVERSE IDLE GEAR
14
  • RING, SNAP (47MM)
7
  • RING, SYNCHRONIZER BLOCKING
1
  • MAINSHAFT
  • MAINSHAFT
12
  • WASHER, THRUST (17MM)
13
  • RING, SNAP (48MM)
8
  • SPRING, SYNCHRONIZER
4
  • GEAR, MAINSHAFT FIFTH
  • GEAR, MAINSHAFT FIFTH
  • GEAR, MAINSHAFT FIFTH
3
  • GEAR, REVERSE IDLE
  • GEAR, REVERSE IDLE
  • GEAR, REVERSE IDLE
  • GEAR, REVERSE IDLE
19
  • SLEEVE, SYNCHRONIZER FIFTH
18
  • CIRCLIP, OUTER (17MM) - $0.53
17
  • BEARING, NEEDLE (25X30X20) (TOYO) - $12.68
  • BEARING, NEEDLE (25X30X20) (NTN CORP.) - $12.68
16
  • BEARING, SPECIAL NEEDLE
11
  • COTTER (17MM)
15
  • BEARING, BALL (47MM) (TOYO)
9
  • PLATE, THRUST (25MM)
10
  • COLLAR, DISTANCE
No. Part # Part # / Description Qty Req. List Price Price
1 23211-657-660 23211-657-660 / MAINSHAFT

1 - -
1 23211-671-961 23211-671-961 / MAINSHAFT

1 - -
2 23261-634-000 23261-634-000 / SHAFT, REVERSE IDLE GEAR

1 - -
2 23261-PB7-000 23261-PB7-000 / SHAFT, REVERSE IDLE GEAR

1 - -
3 23540-634-961 23540-634-961 / GEAR, REVERSE IDLE

1 - -
3 23540-634-010 23540-634-010 / GEAR, REVERSE IDLE

1 - -
3 23540-634-960 23540-634-960 / GEAR, REVERSE IDLE

1 - -
3 23540-PB7-010 23540-PB7-010 / GEAR, REVERSE IDLE

1 - -
4 23581-657-660 23581-657-660 / GEAR, MAINSHAFT FIFTH

1 - -
4 23581-PB7-910 23581-PB7-910 / GEAR, MAINSHAFT FIFTH

1 - -
4 23581-PB7-910 23581-PB7-910 / GEAR, MAINSHAFT FIFTH

1 - -
7 23641-601-030 23641-601-030 / RING, SYNCHRONIZER BLOCKING

1 - -
8 23651-601-010 23651-601-010 / SPRING, SYNCHRONIZER

1 - -
9 23931-634-960 23931-634-960 / PLATE, THRUST (25MM)

1 - -
10 23934-634-961 23934-634-961 / COLLAR, DISTANCE

1 - -
11 90466-634-960 90466-634-960 / COTTER (17MM)

2 - -
12 90467-634-960 90467-634-960 / WASHER, THRUST (17MM)

1 - -
13 90602-634-000 90602-634-000 / RING, SNAP (48MM)

1 - -
14 90604-634-960 90604-634-960 / RING, SNAP (47MM)

1 - -
15 91003-657-962 91003-657-962 / BEARING, BALL (47MM) (TOYO)

1 - -
16 91102-634-961 91102-634-961 / BEARING, SPECIAL NEEDLE

1 - -
17 91106-ME5-008 91106-ME5-008 / BEARING, NEEDLE (25X30X20) (TOYO)

1 $17.62 $12.68
17 91108-634-961 91108-634-961 / BEARING, NEEDLE (25X30X20) (NTN CORP.)

1 $17.62 $12.68
18 94510-17000 94510-17000 / CIRCLIP, OUTER (17MM)

1 $0.73 $0.53
19 23626-634-960 23626-634-960 / SLEEVE, SYNCHRONIZER FIFTH

1 - -
