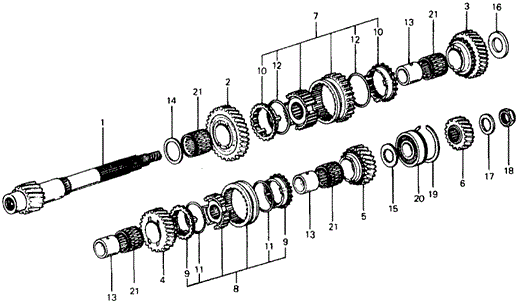

COUNTERSHAFT in TRANSMISSION - MANUAL/5MT COUNTERSHAFT - COUNTERSHAFTGEARS for 1976 Honda CIVIC HATCHBACK

COUNTERSHAFT in TRANSMISSION - MANUAL/5MT COUNTERSHAFT - COUNTERSHAFTGEARS for 1976 Honda CIVIC HATCHBACK #1
3
  • GEAR, COUNTERSHAFT SECOND
  • GEAR, COUNTERSHAFT SECOND
7
  • SLEEVE SET, SYNCHRONIZER (1-2)
  • SLEEVE SET, SYNCHRONIZER (1-2)
5
  • GEAR, COUNTERSHAFT TOP
  • GEAR, COUNTERSHAFT TOP
4
  • GEAR, COUNTERSHAFT THIRD
  • GEAR, COUNTERSHAFT THIRD
15
  • PLATE, SPECIAL THRUST
21
  • BEARING, NEEDLE (32X37X27) (NTN) - $13.64
12
  • SPRING SYNCHRONIZER - $0.78
  • SPRING SYNCHRONIZER - $0.78
2
  • GEAR, COUNTERSHAFT LOW
  • GEAR, COUNTERSHAFT LOW
10
  • RING, SYNCHRONIZER BLOCKING - $11.34
  • RING, SYNCHRONIZER BLOCKING - $11.34
  • RING, SYNCHRONIZER BLOCKING - $11.34
  • RING, SYNCHRONIZER BLOCKING - $11.34
6
  • GEAR, COUNTERSHAFT FIFTH
  • GEAR, COUNTERSHAFT FIFTH - $21.19
9
  • RING, SYNCHRONIZER BLOCKING - $11.59
  • RING, SYNCHRONIZER BLOCKING - $11.59
  • RING, SYNCHRONIZER BLOCKING - $11.59
11
  • SPRING, SYNCHRONIZER
12
  • SPRING SYNCHRONIZER - $0.78
  • SPRING SYNCHRONIZER - $0.78
17
  • WASHER, SPECIAL SPRING
21
  • BEARING, NEEDLE (32X37X27) (NTN) - $13.64
20
  • BEARING, BALL (6305)
  • BEARING, BALL (6305)
  • BEARING, BALL (6305)
16
  • WASHER, THRUST (26MM)
18
  • NUT, HEX. (21MM) - $10.78
13
  • SPACER (28MM) (+0.10/+0.13)
  • SPACER (28MM) (+0.04/+0.07) (TOYO)
  • SPACER (28MM) (+0.07/+0.09) (TOYO)
19
  • RING, SNAP (62MM)
10
  • RING, SYNCHRONIZER BLOCKING - $11.34
  • RING, SYNCHRONIZER BLOCKING - $11.34
  • RING, SYNCHRONIZER BLOCKING - $11.34
  • RING, SYNCHRONIZER BLOCKING - $11.34
14
  • WASHER C, THRUST (32MM) (-0.08/-0.11)
  • WASHER A, THRUST (32MM) (-0.02/-0.05)
  • WASHER B, THRUST (32MM) (-0.05/-0.08)
13
  • SPACER (28MM) (+0.10/+0.13)
  • SPACER (28MM) (+0.04/+0.07) (TOYO)
  • SPACER (28MM) (+0.07/+0.09) (TOYO)
11
  • SPRING, SYNCHRONIZER
8
  • SLEEVE SET, SYNCHRONIZER (3-4)
21
  • BEARING, NEEDLE (32X37X27) (NTN) - $13.64
13
  • SPACER (28MM) (+0.10/+0.13)
  • SPACER (28MM) (+0.04/+0.07) (TOYO)
  • SPACER (28MM) (+0.07/+0.09) (TOYO)
9
  • RING, SYNCHRONIZER BLOCKING - $11.59
  • RING, SYNCHRONIZER BLOCKING - $11.59
  • RING, SYNCHRONIZER BLOCKING - $11.59
21
  • BEARING, NEEDLE (32X37X27) (NTN) - $13.64
1
  • COUNTERSHAFT
  • COUNTERSHAFT
  • COUNTERSHAFT
No. Part # Part # / Description Qty Req. List Price Price
1 23220-657-661 23220-657-661 / COUNTERSHAFT

1 - -
1 23220-634-960 23220-634-960 / COUNTERSHAFT

1 - -
1 23220-657-780 23220-657-780 / COUNTERSHAFT

1 - -
2 23421-634-961 23421-634-961 / GEAR, COUNTERSHAFT LOW

1 - -
2 23421-657-020 23421-657-020 / GEAR, COUNTERSHAFT LOW

1 - -
3 23431-657-671 23431-657-671 / GEAR, COUNTERSHAFT SECOND

1 - -
3 23431-657-020 23431-657-020 / GEAR, COUNTERSHAFT SECOND

1 - -
4 23441-657-671 23441-657-671 / GEAR, COUNTERSHAFT THIRD

1 - -
4 23441-634-010 23441-634-010 / GEAR, COUNTERSHAFT THIRD

1 - -
5 23451-657-671 23451-657-671 / GEAR, COUNTERSHAFT TOP

1 - -
5 23451-634-010 23451-634-010 / GEAR, COUNTERSHAFT TOP

1 - -
6 23461-657-660 23461-657-660 / GEAR, COUNTERSHAFT FIFTH

1 - -
6 23461-PB7-910 23461-PB7-910 / GEAR, COUNTERSHAFT FIFTH

1 $29.43 $21.19
7 23521-634-335 23521-634-335 / SLEEVE SET, SYNCHRONIZER (1-2)

1 - -
7 23521-634-335 23521-634-335 / SLEEVE SET, SYNCHRONIZER (1-2)

1 - -
8 23623-634-315 23623-634-315 / SLEEVE SET, SYNCHRONIZER (3-4)

1 - -
9 23641-634-010 23641-634-010 / RING, SYNCHRONIZER BLOCKING

2 $17.55 $11.59
9 23641-634-010 23641-634-010 / RING, SYNCHRONIZER BLOCKING

2 $17.55 $11.59
9 23641-634-010 23641-634-010 / RING, SYNCHRONIZER BLOCKING

2 $17.55 $11.59
10 23642-634-030 23642-634-030 / RING, SYNCHRONIZER BLOCKING

2 $17.21 $11.34
10 23642-634-030 23642-634-030 / RING, SYNCHRONIZER BLOCKING

2 $17.21 $11.34
10 23642-634-030 23642-634-030 / RING, SYNCHRONIZER BLOCKING

2 $17.21 $11.34
10 23642-634-030 23642-634-030 / RING, SYNCHRONIZER BLOCKING

2 $17.21 $11.34
11 23651-611-000 23651-611-000 / SPRING, SYNCHRONIZER

2 - -
12 23652-634-010 23652-634-010 / SPRING SYNCHRONIZER

2 $1.31 $0.78
12 23652-634-010 23652-634-010 / SPRING SYNCHRONIZER

2 $1.31 $0.78
13 23914-657-000 23914-657-000 / SPACER (28MM) (+0.10/+0.13)

3 - -
13 23913-634-008 23913-634-008 / SPACER (28MM) (+0.04/+0.07) (TOYO)

3 - -
13 23912-634-008 23912-634-008 / SPACER (28MM) (+0.07/+0.09) (TOYO)

3 - -
14 23925-634-000 23925-634-000 / WASHER C, THRUST (32MM) (-0.08/-0.11)

1 - -
14 23921-634-000 23921-634-000 / WASHER A, THRUST (32MM) (-0.02/-0.05)

1 - -
14 23924-634-000 23924-634-000 / WASHER B, THRUST (32MM) (-0.05/-0.08)

1 - -
15 23922-634-960 23922-634-960 / PLATE, SPECIAL THRUST

1 - -
16 23923-634-010 23923-634-010 / WASHER, THRUST (26MM)

1 - -
17 23926-634-961 23926-634-961 / WASHER, SPECIAL SPRING

1 - -
18 90202-671-961 90202-671-961 / NUT, HEX. (21MM)

1 $14.97 $10.78
19 90603-634-960 90603-634-960 / RING, SNAP (62MM)

1 - -
20 91004-634-961 91004-634-961 / BEARING, BALL (6305)

1 - -
20 91004-PB7-961 91004-PB7-961 / BEARING, BALL (6305)

1 - -
20 91004-PB7-961 91004-PB7-961 / BEARING, BALL (6305)

1 - -
21 91104-634-008 91104-634-008 / BEARING, NEEDLE (32X37X27) (NTN)

4 $18.95 $13.64
