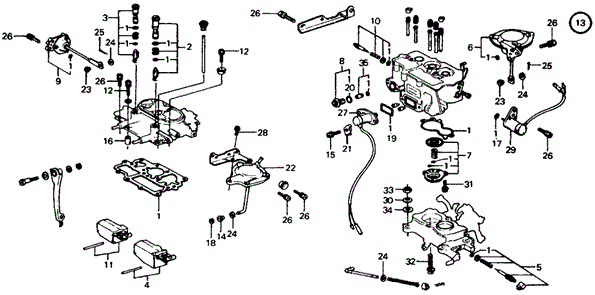

CARBURETOR ASSY. in ENGINE/CARBURETOR ('76) for 1976 Honda CIVIC HATCHBACK

Select CARBURETOR ASSY. Part

1976 Honda CIVIC HATCHBACK

Change vehicle

No. Part # Part # / Description List Price Price
1 16010-657-015 16010-657-015 / GASKET SET, CARBURETOR

- -
2 16011-657-015 16011-657-015 / VALVE SET, MAIN FLOAT

- -
3 16012-657-005 16012-657-005 / VALVE SET, SUB-FLOAT

$41.80 $30.10
4 16013-657-671 16013-657-671 / FLOAT SET, MAIN

$36.98 $26.63
5 16016-657-005 16016-657-005 / SCREW SET, IDLE ADJUSTING

- -
6 16020-657-015 16020-657-015 / DIAPHRAGM ASSY.

- -
7 16021-657-015 16021-657-015 / DIAPHRAGM SET, PUMP

- -
8 16024-657-015 16024-657-015 / PLUG SET, SUB-MAIN JET

- -
9 16025-657-671 16025-657-671 / DIAPHRAGM SET, CHOKE

- -
10 16028-657-005 16028-657-005 / SCREW SET B

- -
11 16049-657-671 16049-657-671 / SUB-FLOAT SET

$24.00 $17.28
12 16080-657-005 16080-657-005 / BOLT-WASHER (5X25)

- -
13 16100-657-671 16100-657-671 / CARBURETOR ASSY.

- -
14 16131-657-300 16131-657-300 / COLLAR

- -
15 16132-657-300 16132-657-300 / BOLT-WASHER (6X20)

- -
16 16172-657-005 16172-657-005 / PIN, KNOCK

- -
17 16178-548-004 16178-548-004 / O-RING (5.8X1.9)

$3.12 $2.24
18 16179-676-005 16179-676-005 / E-CLIP

- -
19 16192-657-310 16192-657-310 / O-RING, MAIN JET

- -
20 16075-GHB-720 16075-GHB-720 / O-RING,1.3X10.6

$2.12 $1.52
20 16075-GHB-720 16075-GHB-720 / O-RING (10.6X1.3)

$2.12 $1.52
21 16198-657-310 16198-657-310 / WASHER, MAIN JET COVER

- -
22 16199-657-310 16199-657-310 / DIAPHRAGM ASSY., OPENER

- -
23 16202-657-300 16202-657-300 / COLLAR

$2.07 $1.49
24 16203-657-300 16203-657-300 / WASHER, PLAIN (4MM)

- -
25 16204-657-300 16204-657-300 / PIN, SPLIT

$2.43 $1.75
26 16084-PE0-921 16084-PE0-921 / BOLT-WASHER (5X20)

- -
27 16208-657-300 16208-657-300 / VALVE ASSY., SOLENOID

- -
28 16209-657-300 16209-657-300 / SCREW-WASHER (5X10)

- -
29 16230-657-003 16230-657-003 / VALVE, FUEL MAGNETIC

- -
30 90409-657-000 90409-657-000 / WASHER, SPRING (8MM)

- -
31 93892-04014-08 93892-04014-08 / SCREW-WASHER (4X14)

$0.65 $0.47
32 93892-06040-08 93892-06040-08 / SCREW-WASHER (6X40)

- -
33 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

$0.60 $0.43
33 94002-08280-0S 94002-08280-0S / NUT, HEX. (8MM)

- -
34 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

$1.10 $0.79
35 99214-657-0700 99214-657-0700 / JET SET, SUB-MAIN

- -
36 06161-657-013 06161-657-013 / GASKET KIT, CARBURETOR ON-CAR

- -
