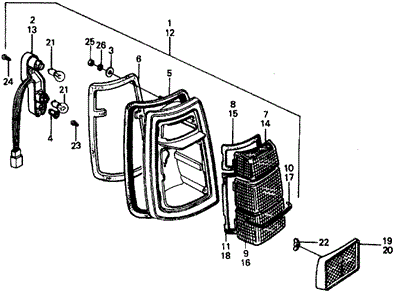

TAILLIGHT ASSY., R. in ELECTRICAL / EXHAUST / HEATER / FUEL/TAILLIGHT for 1976 Honda CIVIC HATCHBACK

TAILLIGHT ASSY., R. in ELECTRICAL / EXHAUST / HEATER / FUEL/TAILLIGHT for 1976 Honda CIVIC HATCHBACK #1
10
  • MOLDING, R. TAILLIGHT LENS
24
  • SCREW, TAPPING (4x16) - $0.31
21
  • BULB, STOP & TAILLIGHT (12V 27/7W) - $2.10
3
  • WASHER
  • WASHER
8
  • GASKET, R. TURN SIGNAL LENS
25
  • NUT, HEX. (6MM) - $0.20
  • NUT, HEX. (6MM) - $0.20
14
  • LENS, L. TURN SIGNAL
18
  • GASKET, L. STOP & TAILLIGHT LENS
11
  • GASKET, R. STOP & TAILLIGHT LENS
5
  • GASKET, TAILLIGHT LENS
22
  • WINGNUT (4MM)
12
  • TAILLIGHT ASSY., L.
21
  • BULB, STOP & TAILLIGHT (12V 27/7W) - $2.10
17
  • MOLDING, L. TAILLIGHT LENS
26
  • WASHER, SPRING (6MM) - $0.36
2
  • HOUSING, R. TAILLIGHT
23
  • SCREW, TAPPING (3X12) - $0.36
16
  • LENS, L. STOP & TAILLIGHT
9
  • LENS, R. STOP & TAILLIGHT
19
  • REFLECTOR ASSY., R. RR.
15
  • GASKET, L. TURN SIGNAL LENS
1
  • TAILLIGHT ASSY., R.
20
  • REFLECTOR ASSY., L. RR.
13
  • HOUSING, L. TAILLIGHT
6
  • GASKET, TAILLIGHT HOUSING
7
  • LENS, R. TURN SIGNAL
No. Part # Part # / Description Qty Req. List Price Price
1 33500-634-673 33500-634-673 / TAILLIGHT ASSY., R.

1 - -
2 33501-634-672 33501-634-672 / HOUSING, R. TAILLIGHT

1 - -
3 33511-634-003 33511-634-003 / WASHER

2 - -
3 33512-634-003 33512-634-003 / WASHER

2 - -
5 33515-634-671 33515-634-671 / GASKET, TAILLIGHT LENS

2 - -
6 33516-634-672 33516-634-672 / GASKET, TAILLIGHT HOUSING

2 - -
7 33520-634-671 33520-634-671 / LENS, R. TURN SIGNAL

1 - -
8 33525-634-003 33525-634-003 / GASKET, R. TURN SIGNAL LENS

1 - -
9 33530-634-003 33530-634-003 / LENS, R. STOP & TAILLIGHT

1 - -
10 33531-634-003 33531-634-003 / MOLDING, R. TAILLIGHT LENS

1 - -
11 33535-634-003 33535-634-003 / GASKET, R. STOP & TAILLIGHT LENS

1 - -
12 33550-634-673 33550-634-673 / TAILLIGHT ASSY., L.

1 - -
13 33551-634-672 33551-634-672 / HOUSING, L. TAILLIGHT

1 - -
14 33570-634-671 33570-634-671 / LENS, L. TURN SIGNAL

1 - -
15 33575-634-003 33575-634-003 / GASKET, L. TURN SIGNAL LENS

1 - -
16 33580-634-003 33580-634-003 / LENS, L. STOP & TAILLIGHT

1 - -
17 33581-634-003 33581-634-003 / MOLDING, L. TAILLIGHT LENS

1 - -
18 33585-634-003 33585-634-003 / GASKET, L. STOP & TAILLIGHT LENS

1 - -
19 33800-634-922 33800-634-922 / REFLECTOR ASSY., R. RR.

1 - -
20 33850-634-922 33850-634-922 / REFLECTOR ASSY., L. RR.

1 - -
21 34906-MG9-771 34906-MG9-771 / BULB, STOP & TAILLIGHT (12V 27/7W)

4 $2.92 $2.10
22 90371-611-910 90371-611-910 / WINGNUT (4MM)

2 - -
23 93901-32380 93901-32380 / SCREW, TAPPING (3X12)

6 $0.50 $0.36
24 93902-34410 93902-34410 / SCREW, TAPPING (4x16)

4 $0.43 $0.31
25 94001-06200-0S 94001-06200-0S / NUT, HEX. (6MM)

4 $0.28 $0.20
25 94001-06200-0S 94001-06200-0S / NUT, HEX. (6MM)

4 $0.28 $0.20
26 94111-06000 94111-06000 / WASHER, SPRING (6MM)

4 $0.50 $0.36
