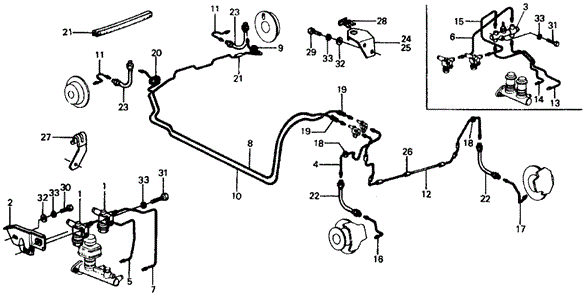

VALVE, PROPORTIONING in CHASSIS/BRAKE HOSE - BRAKE PIPE for 1976 Honda CIVIC HATCHBACK

VALVE, PROPORTIONING in CHASSIS/BRAKE HOSE - BRAKE PIPE for 1976 Honda CIVIC HATCHBACK #1
11
  • PIPE E, BRAKE
16
  • PIPE G, R. BRAKE
1
  • VALVE, PROPORTIONING
20
  • GROMMET A, BRAKE PIPE
25
  • BRACKET, L. RR. BRAKE HOSE
17
  • PIPE G, L. BRAKE
4
  • PIPE A, BRAKE
28
  • CLIP, BRAKE HOSE - $3.30
1
  • VALVE, PROPORTIONING
33
  • WASHER, SPRING (6MM) - $0.43
3
  • SWITCH, BRAKE WARNING
18
  • GROMMET A, BRAKE PIPE
32
  • WASHER, PLAIN (6MM) - $0.25
8
  • PIPE C, BRAKE
9
  • GROMMET, BRAKE PIPE
10
  • PIPE D, BRAKE
31
  • BOLT, HEX. (6X35) - $0.67
33
  • WASHER, SPRING (6MM) - $0.43
26
  • TUBE B, PIPE PROTECTOR
22
  • HOSE, FR. BRAKE (NICHIRIN)
23
  • HOSE, RR. BRAKE (NICHIRIN)
13
  • PIPE O, BRAKE
29
  • BOLT, HEX. (6X12) - $0.54
18
  • GROMMET A, BRAKE PIPE
14
  • PIPE P, BRAKE
2
  • BRACKET, PROPORTIONING
19
  • GROMMET, BRAKE PIPE
23
  • HOSE, RR. BRAKE (NICHIRIN)
19
  • GROMMET, BRAKE PIPE
33
  • WASHER, SPRING (6MM) - $0.43
33
  • WASHER, SPRING (6MM) - $0.43
31
  • BOLT, HEX. (6X35) - $0.67
15
  • PIPE Q, BRAKE
12
  • PIPE F, BRAKE
30
  • BOLT, HEX. (6X16) - $0.56
11
  • PIPE E, BRAKE
27
  • CLAMP, SPARK PLUG WIRE
32
  • WASHER, PLAIN (6MM) - $0.25
24
  • BRACKET, R. RR. BRAKE HOSE
22
  • HOSE, FR. BRAKE (NICHIRIN)
6
  • PIPE B, BRAKE
No. Part # Part # / Description Qty Req. List Price Price
1 46210-634-930 46210-634-930 / VALVE, PROPORTIONING

2 - -
2 46215-657-670 46215-657-670 / BRACKET, PROPORTIONING

1 - -
3 46220-657-671 46220-657-671 / SWITCH, BRAKE WARNING

1 - -
4 46310-657-670 46310-657-670 / PIPE A, BRAKE

1 - -
6 46320-657-670 46320-657-670 / PIPE B, BRAKE

1 - -
8 46330-657-670 46330-657-670 / PIPE C, BRAKE

1 - -
9 46332-634-000 46332-634-000 / GROMMET, BRAKE PIPE

1 - -
10 46340-657-670 46340-657-670 / PIPE D, BRAKE

1 - -
11 46350-634-010 46350-634-010 / PIPE E, BRAKE

2 - -
12 46360-657-670 46360-657-670 / PIPE F, BRAKE

1 - -
13 46366-657-670 46366-657-670 / PIPE O, BRAKE

1 - -
14 46367-657-670 46367-657-670 / PIPE P, BRAKE

1 - -
15 46368-657-670 46368-657-670 / PIPE Q, BRAKE

1 - -
16 46370-634-921 46370-634-921 / PIPE G, R. BRAKE

1 - -
17 46371-634-921 46371-634-921 / PIPE G, L. BRAKE

1 - -
18 46380-579-300 46380-579-300 / GROMMET A, BRAKE PIPE

2 - -
19 46381-594-300 46381-594-300 / GROMMET, BRAKE PIPE

2 - -
20 46381-611-000 46381-611-000 / GROMMET A, BRAKE PIPE

1 - -
22 46410-634-003P 46410-634-003P / HOSE, FR. BRAKE (NICHIRIN)

2 - -
23 46431-634-003P 46431-634-003P / HOSE, RR. BRAKE (NICHIRIN)

2 - -
24 46435-634-000 46435-634-000 / BRACKET, R. RR. BRAKE HOSE

1 - -
25 46436-634-000 46436-634-000 / BRACKET, L. RR. BRAKE HOSE

1 - -
26 46492-504-000 46492-504-000 / TUBE B, PIPE PROTECTOR

7 - -
27 60616-657-000 60616-657-000 / CLAMP, SPARK PLUG WIRE

1 - -
28 90651-538-000 90651-538-000 / CLIP, BRAKE HOSE

8 $4.58 $3.30
29 92101-06012-0H 92101-06012-0H / BOLT, HEX. (6X12)

4 $0.75 $0.54
30 92101-06016-0H 92101-06016-0H / BOLT, HEX. (6X16)

1 $0.78 $0.56
31 92101-06035-0H 92101-06035-0H / BOLT, HEX. (6X35)

3 $0.93 $0.67
32 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

5 $0.35 $0.25
33 94111-06800 94111-06800 / WASHER, SPRING (6MM)

8 $0.60 $0.43
