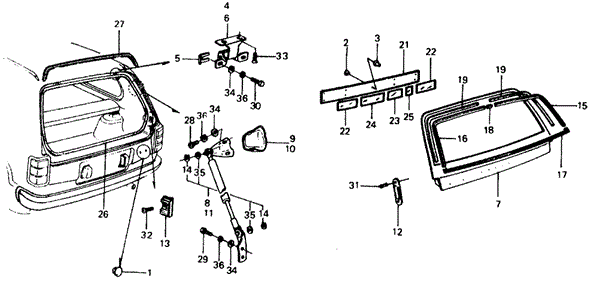

TAILGATE in BODY / AIR CONDITIONING/TAILGATE 3DR for 1976 Honda CIVIC HATCHBACK

TAILGATE in BODY / AIR CONDITIONING/TAILGATE 3DR for 1976 Honda CIVIC HATCHBACK #1
15
  • MOLDING, R. TAILGATE (UPPER)
28
  • SCREW, OPEN STAY BRACKET
24
  • SEAL C, TAILGATE
9
  • COVER, R. TAILGATE OPEN STAY BRACKET
22
  • SEAL A, TAILGATE
34
  • WASHER, PLAIN (6MM) - $0.25
17
  • MOLDING, TAILGATE (LOWER)
14
  • RING, RETAINING (C-TYPE)
35
  • WASHER, PLAIN (8MM) - $0.38
4
  • HINGE, R. GATE
32
  • SCREW, OVAL (6X12)
31
  • SCREW, PAN (5X10) - $0.40
5
  • SHIM, GATE HINGE
21
  • TRIM, TAILGATE
25
  • SEAL D, TAILGATE
36
  • WASHER, SPRING (6MM) - $0.36
34
  • WASHER, PLAIN (6MM) - $0.25
23
  • SEAL B, TAILGATE
27
  • LIP, TAILGATE SEAL
19
  • SEAL, TAILGATE MOLDING
19
  • SEAL, TAILGATE MOLDING
11
  • STAY ASSY., L. TAILGATE OPEN
29
  • BOLT, HEX. (6X12) - $0.56
  • BOLT, HEX. (6X12) - $0.56
16
  • MOLDING, L. TAILGATE (UPPER)
2
  • HOOK, SIDE LINING - $2.48
35
  • WASHER, PLAIN (8MM) - $0.38
33
  • SCREW, OVAL (6x14)
1
  • GROMMET, EMBLEM HOLE - $3.26
3
  • RETAINER, DOOR TRIM CLIP
13
  • CUSHION, TAILGATE
22
  • SEAL A, TAILGATE
7
  • TAILGATE
18
  • JOINT, TAILGATE MOLDING
36
  • WASHER, SPRING (6MM) - $0.36
34
  • WASHER, PLAIN (6MM) - $0.25
6
  • HINGE, L. GATE
8
  • STAY ASSY., R. TAILGATE OPEN
36
  • WASHER, SPRING (6MM) - $0.36
12
  • GUIDE, GATE CUSHION
30
  • BOLT, HEX. (6X18)
26
  • WEATHERSTRIP, TRUNK GATE
14
  • RING, RETAINING (C-TYPE)
10
  • COVER, L. SUPPORT BRACKET
No. Part # Part # / Description Qty Req. List Price Price
1 61901-611-000 61901-611-000 / GROMMET, EMBLEM HOLE

2 $4.53 $3.26
2 73839-594-000 73839-594-000 / HOOK, SIDE LINING

9 $3.45 $2.48
3 75852-538-010 75852-538-010 / RETAINER, DOOR TRIM CLIP

9 - -
4 85150-647-010Z 85150-647-010Z / HINGE, R. GATE

1 - -
5 85154-647-000 85154-647-000 / SHIM, GATE HINGE

4 - -
6 85160-647-010Z 85160-647-010Z / HINGE, L. GATE

1 - -
7 85210-647-010Z 85210-647-010Z / TAILGATE

1 - -
8 85270-647-023 85270-647-023 / STAY ASSY., R. TAILGATE OPEN

1 - -
9 85277-647-671 85277-647-671 / COVER, R. TAILGATE OPEN STAY BRACKET

1 - -
10 85278-647-671 85278-647-671 / COVER, L. SUPPORT BRACKET

1 - -
11 85280-647-023 85280-647-023 / STAY ASSY., L. TAILGATE OPEN

1 - -
12 85288-647-000 85288-647-000 / GUIDE, GATE CUSHION

2 - -
13 85289-647-000 85289-647-000 / CUSHION, TAILGATE

2 - -
14 85291-647-003 85291-647-003 / RING, RETAINING (C-TYPE)

4 - -
15 85802-647-000 85802-647-000 / MOLDING, R. TAILGATE (UPPER)

1 - -
16 85803-647-000 85803-647-000 / MOLDING, L. TAILGATE (UPPER)

1 - -
17 85804-647-000 85804-647-000 / MOLDING, TAILGATE (LOWER)

1 - -
18 85805-647-000 85805-647-000 / JOINT, TAILGATE MOLDING

1 - -
19 85806-647-000 85806-647-000 / SEAL, TAILGATE MOLDING

2 - -
21 85821-647-010 85821-647-010 / TRIM, TAILGATE

1 - -
22 85841-647-000 85841-647-000 / SEAL A, TAILGATE

2 - -
23 85842-647-000 85842-647-000 / SEAL B, TAILGATE

1 - -
24 85843-647-010 85843-647-010 / SEAL C, TAILGATE

1 - -
25 85844-647-000 85844-647-000 / SEAL D, TAILGATE

1 - -
26 85861-647-020 85861-647-020 / WEATHERSTRIP, TRUNK GATE

1 - -
27 85862-647-010 85862-647-010 / LIP, TAILGATE SEAL

1 - -
28 90200-647-000 90200-647-000 / SCREW, OPEN STAY BRACKET

6 - -
29 92101-06012 92101-06012 / BOLT, HEX. (6X12)

4 $0.78 $0.56
29 92101-06012-0A 92101-06012-0A / BOLT, HEX. (6X12)

4 $0.78 $0.56
30 92101-06018-0H 92101-06018-0H / BOLT, HEX. (6X18)

4 - -
31 93500-05010-0H 93500-05010-0H / SCREW, PAN (5X10)

4 $0.55 $0.40
32 93700-06012-07 93700-06012-07 / SCREW, OVAL (6X12)

2 - -
33 93700-06014 93700-06014 / SCREW, OVAL (6x14)

4 - -
34 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

14 $0.35 $0.25
35 94101-08700 94101-08700 / WASHER, PLAIN (8MM)

4 $0.53 $0.38
36 94111-06000 94111-06000 / WASHER, SPRING (6MM)

14 $0.50 $0.36
