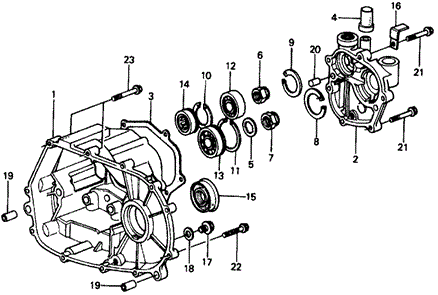

HOUSING, TRANSMISSION in TRANSMISSION - MANUAL/4MT TRANSMISSION HOUSING for 1976 Honda CIVIC COUPE

HOUSING, TRANSMISSION in TRANSMISSION - MANUAL/4MT TRANSMISSION HOUSING for 1976 Honda CIVIC COUPE #1
10
  • RING, SNAP (48MM)
14
  • BEARING, SPECIAL NEEDLE
  • BEARING, SPECIAL NEEDLE (TOYO)
3
  • GASKET, TRANSMISSION CASE
21
  • BOLT, FLANGE (6X32) - $0.74
8
  • RING, SNAP (65MM)
1
  • HOUSING, TRANSMISSION
12
  • BEARING, BALL (6304) (NACHI)
17
  • BOLT, DRAIN PLUG (14MM) - $1.73
22
  • BOLT, FLANGE (8X40) - $0.92
6
  • NUT, HEX. (20MM)
20
  • PIN, DOWEL (8X14) - $0.80
19
  • PIN, DOWEL (14X20) - $0.98
11
  • RING, SNAP (62MM)
9
  • RING, SNAP (55MM)
23
  • BOLT, FLANGE (8X45) - $0.92
  • BOLT, FLANGE (8X45) - $0.92
16
  • CLIP, WIRE HARNESS
18
  • WASHER, DRAIN PLUG (14MM) - $0.28
2
  • COVER, TRANSMISSION
21
  • BOLT, FLANGE (6X32) - $0.74
13
  • BEARING, BALL (6305) (TOYO) - $22.92
4
  • CAP, BREATHER
15
  • OIL SEAL (35X56X9) (NOK) - $6.65
19
  • PIN, DOWEL (14X20) - $0.98
7
  • NUT, HEX. (23MM)
5
  • WASHER, SPRING
No. Part # Part # / Description Qty Req. List Price Price
1 21200-634-000 21200-634-000 / HOUSING, TRANSMISSION

1 - -
2 21310-634-010 21310-634-010 / COVER, TRANSMISSION

1 - -
3 21395-634-S00 21395-634-S00 / GASKET, TRANSMISSION CASE

1 - -
4 21397-634-000 21397-634-000 / CAP, BREATHER

1 - -
5 23926-634-010 23926-634-010 / WASHER, SPRING

1 - -
6 90201-634-000 90201-634-000 / NUT, HEX. (20MM)

1 - -
7 90202-634-020 90202-634-020 / NUT, HEX. (23MM)

1 - -
8 90501-634-000 90501-634-000 / RING, SNAP (65MM)

1 - -
9 90502-634-000 90502-634-000 / RING, SNAP (55MM)

1 - -
10 90602-634-000 90602-634-000 / RING, SNAP (48MM)

1 - -
11 90603-634-000 90603-634-000 / RING, SNAP (62MM)

1 - -
12 91003-657-003 91003-657-003 / BEARING, BALL (6304) (NACHI)

1 - -
13 91004-657-008 91004-657-008 / BEARING, BALL (6305) (TOYO)

1 $31.83 $22.92
14 91102-634-961 91102-634-961 / BEARING, SPECIAL NEEDLE

1 - -
14 91102-634-008 91102-634-008 / BEARING, SPECIAL NEEDLE (TOYO)

1 - -
15 91205-611-005 91205-611-005 / OIL SEAL (35X56X9) (NOK)

1 $9.23 $6.65
16 91401-611-000 91401-611-000 / CLIP, WIRE HARNESS

1 - -
17 92800-14000 92800-14000 / BOLT, DRAIN PLUG (14MM)

1 $2.40 $1.73
18 94109-14000 94109-14000 / WASHER, DRAIN PLUG (14MM)

1 $0.38 $0.28
19 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.98
20 94303-08140 94303-08140 / PIN, DOWEL (8X14)

2 $1.12 $0.80
21 95701-06032-08 95701-06032-08 / BOLT, FLANGE (6X32)

6 $1.03 $0.74
22 95701-08040-08 95701-08040-08 / BOLT, FLANGE (8X40)

9 $1.28 $0.92
23 95701-08045-08 95701-08045-08 / BOLT, FLANGE (8X45)

2 $1.28 $0.92
23 95700-08045-08 95700-08045-08 / BOLT, FLANGE (8X45)

2 $1.28 $0.92
