MANIFOLD ASSY., EX. in ENGINE/CARBURETOR INSULATOR - MANIFOLD ('76) for 1976 Honda CIVIC COUPE

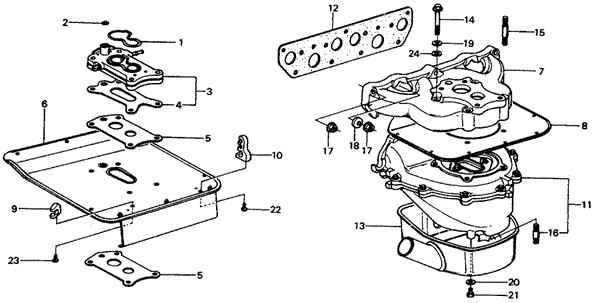

MANIFOLD ASSY., EX. in ENGINE/CARBURETOR INSULATOR - MANIFOLD ('76) for 1976 Honda CIVIC COUPE #1
10
  • CLAMP B, TUBE
14
  • BOLT, HEX. (8x60)
7
  • MANIFOLD, IN.
17
  • NUT, SPECIAL (8MM) - $2.28
5
  • GASKET, INSULATOR (LOWER)
11
  • MANIFOLD ASSY., EX.
19
  • WASHER, SPRING (8MM)
2
  • O-RING C
15
  • BOLT, STUD (8x66)
12
  • GASKET, MANIFOLD
22
  • SCREW, TAPPING (5X10)
24
  • WASHER, PLAIN (8MM) - $0.32
9
  • CLAMP, TUBE
3
  • INSULATOR, CARBURETOR
16
  • BOLT, STUD (10x38)
4
  • GASKET, HEAT INSULATOR
8
  • GASKET, MANIFOLD RISER
17
  • NUT, SPECIAL (8MM) - $2.28
21
  • BOLT, FLANGE (6X10) - $0.62
  • BOLT, HEX. (6X10) - $0.55
5
  • GASKET, INSULATOR (LOWER)
6
  • PLATE, MANIFOLD INSULATOR
20
  • WASHER (6MM) - $0.82
1
  • O-RING A - $4.80
18
  • WASHER, SPECIAL (8x18)
13
  • COVER, HOT AIR
23
  • SCREW, TAPPING (5X12)
No. Part # Part # / Description Qty Req. List Price Price
1 16105-657-000 16105-657-000 / O-RING A

1 $6.67 $4.80
2 16106-657-000 16106-657-000 / O-RING C

1 - -
3 16210-657-307 16210-657-307 / INSULATOR, CARBURETOR

1 - -
4 16213-657-320 16213-657-320 / GASKET, HEAT INSULATOR

1 - -
5 16215-657-S00 16215-657-S00 / GASKET, INSULATOR (LOWER)

2 - -
6 16217-657-922 16217-657-922 / PLATE, MANIFOLD INSULATOR

1 - -
7 17101-657-010 17101-657-010 / MANIFOLD, IN.

1 - -
8 17106-657-306 17106-657-306 / GASKET, MANIFOLD RISER

1 - -
9 17206-657-020 17206-657-020 / CLAMP, TUBE

1 - -
10 17207-657-000 17207-657-000 / CLAMP B, TUBE

1 - -
11 18000-657-040 18000-657-040 / MANIFOLD ASSY., EX.

1 - -
12 18115-657-004 18115-657-004 / GASKET, MANIFOLD

1 - -
13 18120-657-010 18120-657-010 / COVER, HOT AIR

1 - -
14 90019-PD1-000 90019-PD1-000 / BOLT, HEX. (8x60)

4 - -
15 90064-657-320 90064-657-320 / BOLT, STUD (8x66)

4 - -
16 90065-657-330 90065-657-330 / BOLT, STUD (10x38)

2 - -
17 90217-657-000 90217-657-000 / NUT, SPECIAL (8MM)

9 $3.17 $2.28
18 90402-657-000 90402-657-000 / WASHER, SPECIAL (8x18)

6 - -
19 90409-657-000 90409-657-000 / WASHER, SPRING (8MM)

4 - -
20 90485-286-000 90485-286-000 / WASHER (6MM)

2 $1.24 $0.82
21 95701-06010-08 95701-06010-08 / BOLT, FLANGE (6X10)

2 $0.87 $0.62
21 92101-06010-0A 92101-06010-0A / BOLT, HEX. (6X10)

2 $0.77 $0.55
22 93901-35110 93901-35110 / SCREW, TAPPING (5X10)

1 - -
23 93903-15210 93903-15210 / SCREW, TAPPING (5X12)

1 - -
24 94101-08000 94101-08000 / WASHER, PLAIN (8MM)

4 $0.45 $0.32
