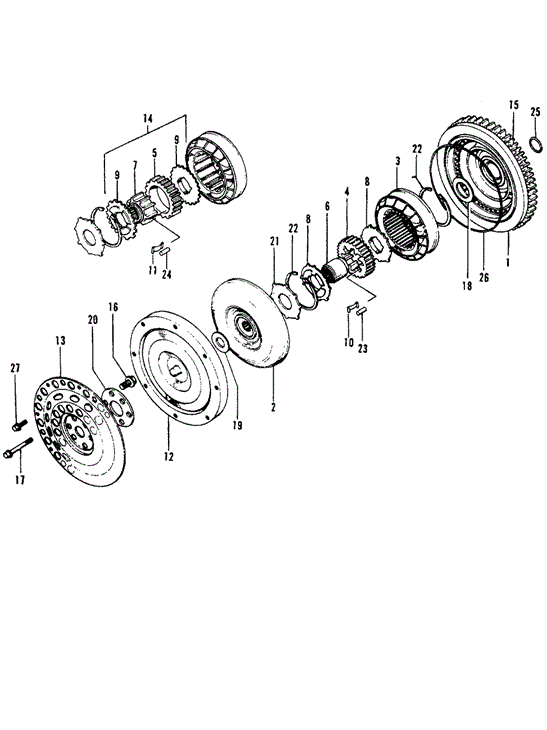

COVER, TORQUE CONVERTER in TRANSMISSION - HONDAMATIC/HMT TORQUE CONVERTER for 1975 Honda CIVIC 1200 HATCHBACK

COVER, TORQUE CONVERTER in TRANSMISSION - HONDAMATIC/HMT TORQUE CONVERTER for 1975 Honda CIVIC 1200 HATCHBACK #1
26
  • O-RING
8
  • PLATE, STATOR SIDE - $6.61
9
  • PLATE, STATOR SIDE - $18.22
14
  • CAM SET, STATOR
12
  • COVER, TORQUE CONVERTER
  • COVER, TORQUE CONVERTER
24
  • ROLLER (5X20.8)
22
  • RING, SNAP (66MM)
4
  • CAM, STATOR - $12.77
25
  • O-RING (32X1.9) - $1.96
6
  • HUB, STATOR - $13.17
16
  • BOLT, HEX. (10MM)
19
  • WASHER, THRUST (17x45x2.5)
21
  • WASHER, THRUST (38X66X2) - $13.62
5
  • RING, STATOR - $30.52
17
  • BOLT, FLANGE (6X43)
13
  • PLATE, DRIVE
20
  • WASHER, SPECIAL (40x80x2)
  • WASHER (40x80x2)
23
  • ROLLER (6X20.8)
22
  • RING, SNAP (66MM)
15
  • GEAR, RING
2
  • TURBINE, TORQUE CONVERTER
7
  • CAM, TORQUE CONVERTER STATOR
11
  • SPRING, STATOR ROLLER
10
  • SPRING, STATOR ROLLER
9
  • PLATE, STATOR SIDE - $18.22
27
  • BOLT, FLANGE (6X12) - $0.72
8
  • PLATE, STATOR SIDE - $6.61
1
  • PUMP, TORQUE CONVERTER
3
  • STATOR, TORQUE CONVERTER
No. Part # Part # / Description Qty Req. List Price Price
1 26210-639-010 26210-639-010 / PUMP, TORQUE CONVERTER

1 - -
2 26220-639-000 26220-639-000 / TURBINE, TORQUE CONVERTER

1 - -
3 26230-639-000 26230-639-000 / STATOR, TORQUE CONVERTER

1 - -
4 26232-639-000 26232-639-000 / CAM, STATOR

1 $19.39 $12.77
5 26232-657-900 26232-657-900 / RING, STATOR

1 $42.38 $30.52
6 26233-639-000 26233-639-000 / HUB, STATOR

1 $13.17 $13.17
7 26233-657-901 26233-657-901 / CAM, TORQUE CONVERTER STATOR

1 - -
8 26234-639-000 26234-639-000 / PLATE, STATOR SIDE

2 $11.02 $6.61
9 26234-657-900 26234-657-900 / PLATE, STATOR SIDE

2 $25.30 $18.22
10 26237-639-000 26237-639-000 / SPRING, STATOR ROLLER

8 - -
11 26237-657-901 26237-657-901 / SPRING, STATOR ROLLER

10 - -
12 26240-639-010 26240-639-010 / COVER, TORQUE CONVERTER

1 - -
12 26240-639-000 26240-639-000 / COVER, TORQUE CONVERTER

1 - -
13 26251-639-010 26251-639-010 / PLATE, DRIVE

1 - -
14 26310-639-305 26310-639-305 / CAM SET, STATOR

1 - -
15 31112-639-010 31112-639-010 / GEAR, RING

1 - -
16 90023-612-000 90023-612-000 / BOLT, HEX. (10MM)

6 - -
17 90026-639-000 90026-639-000 / BOLT, FLANGE (6X43)

16 - -
18 90402-639-000 90402-639-000 / WASHER, THRUST (38x54x2)

1 - -
19 90403-639-000 90403-639-000 / WASHER, THRUST (17x45x2.5)

1 - -
20 90429-657-900 90429-657-900 / WASHER, SPECIAL (40x80x2)

1 - -
20 90429-639-000 90429-639-000 / WASHER (40x80x2)

1 - -
21 90463-639-010 90463-639-010 / WASHER, THRUST (38X66X2)

1 $18.91 $13.62
22 90623-689-900 90623-689-900 / RING, SNAP (66MM)

2 - -
23 90701-591-000 90701-591-000 / ROLLER (6X20.8)

8 - -
24 90701-657-900 90701-657-900 / ROLLER (5X20.8)

10 - -
25 91302-639-000 91302-639-000 / O-RING (32X1.9)

1 $2.72 $1.96
26 91303-639-013 91303-639-013 / O-RING

1 - -
27 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

8 $1.00 $0.72
