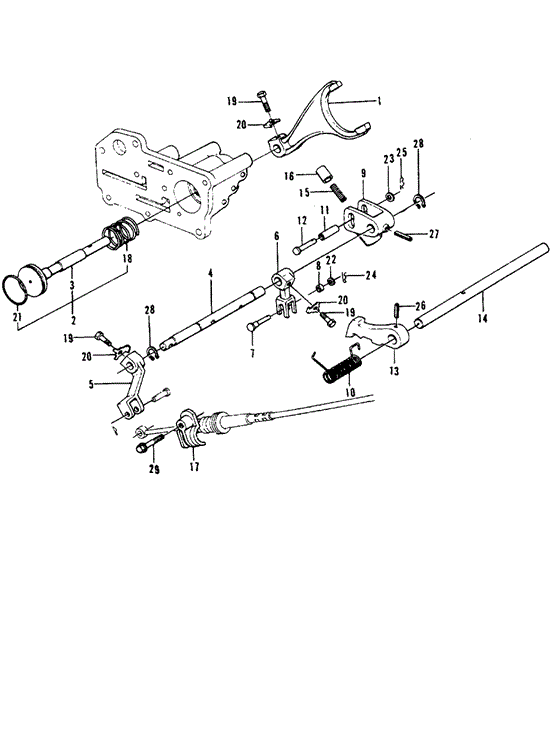

LEVER, PARKING BRAKE in TRANSMISSION - HONDAMATIC/HMT SHIFT LEVER SHAFT for 1975 Honda CIVIC 1200 HATCHBACK

LEVER, PARKING BRAKE in TRANSMISSION - HONDAMATIC/HMT SHIFT LEVER SHAFT for 1975 Honda CIVIC 1200 HATCHBACK #1
10
  • SPRING, PAWL RELEASE
15
  • SPRING, PARKING BRAKE
11
  • ROLLER, PARKING BRAKE
29
  • BOLT, FLANGE (6X32) - $0.74
20
  • WASHER, LOCK (6MM) - $1.88
4
  • SHAFT, SHIFT ARM
5
  • ARM, LINK
20
  • WASHER, LOCK (6MM) - $1.88
1
  • FORK, REVERSE SHIFT
22
  • WASHER, PLAIN (5MM) - $0.38
25
  • PIN, LOCK (6MM) - $0.40
24
  • PIN, LOCK (5MM) - $0.40
12
  • PIN, ROLLER (6MM)
17
  • HOLDER, CONTROL CABLE
23
  • WASHER, PLAIN (6MM) - $0.25
3
  • SHAFT, GEARSHIFT FORK
28
  • CIRCLIP (OUTER) (12MM) - $0.79
18
  • SPRING, SERVO RETURN
7
  • PIN, MANUAL VALVE
20
  • WASHER, LOCK (6MM) - $1.88
26
  • PIN, SPRING (3X22) - $0.79
27
  • PIN, SPRING (5X18) - $0.80
19
  • SCREW (6x18) - $0.20
9
  • LEVER, PARKING BRAKE
8
  • ROLLER, MANUAL VALVE
16
  • RETAINER, SPRING
21
  • O-RING (31X2.7) (ARAI) - $1.94
14
  • SHAFT, PARKING BRAKE
6
  • LEVER, MANUAL VALVE
2
  • SHAFT SET, GEARSHIFT FORK
28
  • CIRCLIP (OUTER) (12MM) - $0.79
19
  • SCREW (6x18) - $0.20
13
  • PAWL, PARKING BRAKE
19
  • SCREW (6x18) - $0.20
No. Part # Part # / Description Qty Req. List Price Price
1 24111-639-000 24111-639-000 / FORK, REVERSE SHIFT

1 - -
2 24270-639-305 24270-639-305 / SHAFT SET, GEARSHIFT FORK

1 - -
3 24271-639-030 24271-639-030 / SHAFT, GEARSHIFT FORK

1 - -
4 24411-639-000 24411-639-000 / SHAFT, SHIFT ARM

1 - -
5 24412-639-000 24412-639-000 / ARM, LINK

1 - -
6 24421-639-000 24421-639-000 / LEVER, MANUAL VALVE

1 - -
7 24423-639-000 24423-639-000 / PIN, MANUAL VALVE

1 - -
8 24425-639-000 24425-639-000 / ROLLER, MANUAL VALVE

2 - -
9 24531-639-010 24531-639-010 / LEVER, PARKING BRAKE

1 - -
10 24552-639-010 24552-639-010 / SPRING, PAWL RELEASE

1 - -
11 24553-612-000 24553-612-000 / ROLLER, PARKING BRAKE

1 - -
12 24555-612-000 24555-612-000 / PIN, ROLLER (6MM)

1 - -
13 24561-639-010 24561-639-010 / PAWL, PARKING BRAKE

1 - -
14 24562-639-010 24562-639-010 / SHAFT, PARKING BRAKE

1 - -
15 24567-612-000 24567-612-000 / SPRING, PARKING BRAKE

1 - -
16 24568-612-000 24568-612-000 / RETAINER, SPRING

1 - -
17 24901-639-000 24901-639-000 / HOLDER, CONTROL CABLE

1 - -
18 27861-639-000 27861-639-000 / SPRING, SERVO RETURN

1 - -
19 90022-639-000 90022-639-000 / SCREW (6x18)

3 $0.34 $0.20
20 90433-639-000 90433-639-000 / WASHER, LOCK (6MM)

3 $2.62 $1.88
21 91344-580-000 91344-580-000 / O-RING (31X2.7) (ARAI)

1 $2.70 $1.94
22 94101-05000 94101-05000 / WASHER, PLAIN (5MM)

1 $0.53 $0.38
23 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

1 $0.35 $0.25
24 94251-05000 94251-05000 / PIN, LOCK (5MM)

1 $0.55 $0.40
25 94251-06000 94251-06000 / PIN, LOCK (6MM)

1 $0.55 $0.40
26 94305-30222 94305-30222 / PIN, SPRING (3X22)

1 $1.10 $0.79
27 94305-50182 94305-50182 / PIN, SPRING (5X18)

1 $1.12 $0.80
28 94510-12000 94510-12000 / CIRCLIP (OUTER) (12MM)

2 $1.10 $0.79
29 95701-06032-08 95701-06032-08 / BOLT, FLANGE (6X32)

1 $1.03 $0.74
