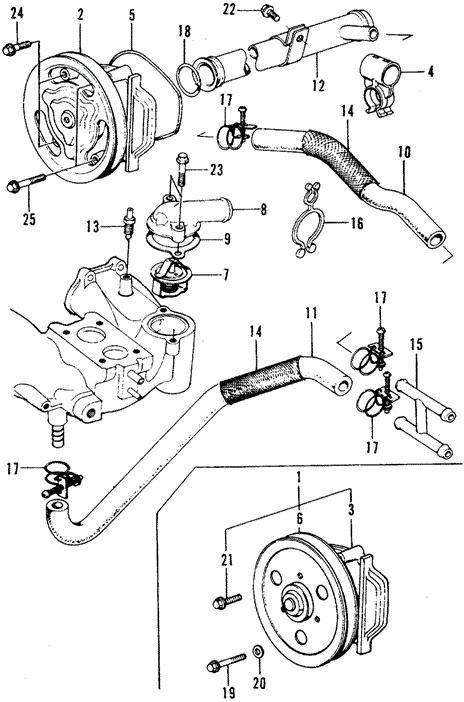

WATER PUMP in ENGINE/WATER PUMP for 1975 Honda CIVIC 1200 HATCHBACK

WATER PUMP in ENGINE/WATER PUMP for 1975 Honda CIVIC 1200 HATCHBACK #1
12
  • PIPE, CONNECTING
5
  • GASKET, WATER PUMP
24
  • BOLT, FLANGE (6X22) - $0.71
23
  • BOLT, FLANGE (6X28) - $0.86
17
  • CLAMP, WATER HOSE
  • CLAMP, WATER HOSE
20
  • WASHER, SPRING (6MM) - $0.43
10
  • HOSE, OUTLET BYPASS
21
  • BOLT, FLANGE (6X12) - $0.72
2
  • WATER PUMP KIT
  • WATER PUMP
17
  • CLAMP, WATER HOSE
  • CLAMP, WATER HOSE
14
  • GUARD, BYPASS HOSE
13
  • BOLT, BREATHING WATER - $8.32
7
  • THERMOSTAT UNIT - $20.29
25
  • BOLT, FLANGE (6X35) - $0.74
22
  • BOLT, FLANGE (6X14) - $0.64
15
  • JOINT (H-TYPE)
17
  • CLAMP, WATER HOSE
  • CLAMP, WATER HOSE
6
  • PULLEY, WATER PUMP
8
  • COVER, THERMOSTAT
17
  • CLAMP, WATER HOSE
  • CLAMP, WATER HOSE
14
  • GUARD, BYPASS HOSE
9
  • GASKET, THERMOSTAT COVER
11
  • HOSE, BYPASS INLET
19
  • BOLT, HEX. (6x40) - $0.54
  • BOLT, HEX. (6X42)
18
  • O-RING (27.6X4.1) - $1.96
No. Part # Part # / Description Qty Req. List Price Price
2 19110-634-405 19110-634-405 / WATER PUMP KIT

1 - -
2 19110-634-405 19110-634-405 / WATER PUMP

1 - -
5 19222-634-000 19222-634-000 / GASKET, WATER PUMP

1 - -
6 19224-634-010 19224-634-010 / PULLEY, WATER PUMP

1 - -
7 19300-611-005 19300-611-005 / THERMOSTAT UNIT

1 $28.18 $20.29
8 19311-634-010 19311-634-010 / COVER, THERMOSTAT

1 - -
9 19313-634-S00 19313-634-S00 / GASKET, THERMOSTAT COVER

1 - -
10 19503-634-030 19503-634-030 / HOSE, OUTLET BYPASS

1 - -
11 19504-634-030 19504-634-030 / HOSE, BYPASS INLET

1 - -
12 19505-634-000 19505-634-000 / PIPE, CONNECTING

1 - -
13 19516-PC1-000 19516-PC1-000 / BOLT, BREATHING WATER

1 $11.55 $8.32
14 19518-634-000 19518-634-000 / GUARD, BYPASS HOSE

2 - -
15 39211-634-010 39211-634-010 / JOINT (H-TYPE)

1 - -
17 39223-671-000 39223-671-000 / CLAMP, WATER HOSE

4 - -
17 39223-611-000 39223-611-000 / CLAMP, WATER HOSE

4 - -
18 91314-634-000 91314-634-000 / O-RING (27.6X4.1)

1 $2.72 $1.96
19 92200-06040-0H 92200-06040-0H / BOLT, HEX. (6x40)

3 $0.75 $0.54
19 90012-634-670 90012-634-670 / BOLT, HEX. (6X42)

3 - -
20 94111-06800 94111-06800 / WASHER, SPRING (6MM)

3 $0.60 $0.43
21 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

3 $1.00 $0.72
22 95701-06014-08 95701-06014-08 / BOLT, FLANGE (6X14)

1 $0.88 $0.64
23 95701-06028-08 95701-06028-08 / BOLT, FLANGE (6X28)

2 $1.20 $0.86
24 95701-06022-08 95701-06022-08 / BOLT, FLANGE (6X22)

2 $0.98 $0.71
25 95801-06035-08 95801-06035-08 / BOLT, FLANGE (6X35)

1 $1.03 $0.74
