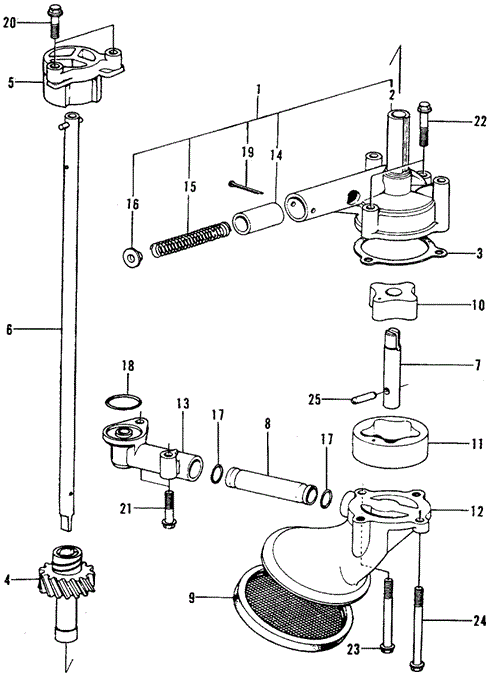

GEAR, OIL PUMP DRIVE in ENGINE/OIL PUMP for 1975 Honda CIVIC 1200 HATCHBACK

GEAR, OIL PUMP DRIVE in ENGINE/OIL PUMP for 1975 Honda CIVIC 1200 HATCHBACK #1
8
  • PIPE, OIL PASSAGE
4
  • GEAR, OIL PUMP DRIVE
23
  • BOLT, FLANGE (6X70) - $0.94
5
  • HOLDER, OIL PUMP DRIVE GEAR
11
  • ROTOR, PUMP (OUTER) - $18.74
21
  • BOLT, FLANGE (6X32) - $0.74
14
  • VALVE, RELIEF - $6.29
12
  • BODY, OIL STRAINER
18
  • O-RING (17X3.5) - $1.49
  • O-RING (17X3.5MM) - $1.49
7
  • SHAFT, OIL PUMP
13
  • BLOCK, OIL PASSAGE
19
  • PIN, SPLIT (3.0X45) - $0.40
22
  • BOLT, FLANGE (6X40) - $0.74
6
  • SHAFT, OIL PUMP DRIVE GEAR
16
  • SEAT, RELIEF VALVE SPRING
9
  • SCREEN, OIL PUMP FILTER
3
  • GASKET, OIL PUMP BODY
15
  • SPRING, RELIEF VALVE
25
  • ROLLER (5X17.8) - $0.36
17
  • O-RING (12.5X2.2) - $2.74
20
  • BOLT, FLANGE (6X28) - $0.86
17
  • O-RING (12.5X2.2) - $2.74
10
  • ROTOR, PUMP (INNER)
24
  • BOLT, FLANGE (6X80) - $1.01
2
  • BODY, OIL PUMP
No. Part # Part # / Description Qty Req. List Price Price
2 15101-634-020 15101-634-020 / BODY, OIL PUMP

1 - -
3 15105-634-000 15105-634-000 / GASKET, OIL PUMP BODY

1 - -
4 15109-634-000 15109-634-000 / GEAR, OIL PUMP DRIVE

1 - -
5 15117-634-000 15117-634-000 / HOLDER, OIL PUMP DRIVE GEAR

1 - -
6 15120-634-000 15120-634-000 / SHAFT, OIL PUMP DRIVE GEAR

1 - -
7 15125-634-000 15125-634-000 / SHAFT, OIL PUMP

1 - -
8 15128-611-000 15128-611-000 / PIPE, OIL PASSAGE

1 - -
9 15129-611-000 15129-611-000 / SCREEN, OIL PUMP FILTER

1 - -
10 15131-634-000 15131-634-000 / ROTOR, PUMP (INNER)

1 - -
11 15132-634-000 15132-634-000 / ROTOR, PUMP (OUTER)

1 $26.03 $18.74
12 15221-PA1-000 15221-PA1-000 / BODY, OIL STRAINER

1 - -
13 15225-634-000 15225-634-000 / BLOCK, OIL PASSAGE

1 - -
14 15231-PE0-000 15231-PE0-000 / VALVE, RELIEF

1 $8.73 $6.29
15 15232-PB2-000 15232-PB2-000 / SPRING, RELIEF VALVE

1 - -
16 15233-634-000 15233-634-000 / SEAT, RELIEF VALVE SPRING

1 - -
17 91303-634-010 91303-634-010 / O-RING (12.5X2.2)

2 $3.80 $2.74
18 91361-752-000 91361-752-000 / O-RING (17X3.5)

1 $2.07 $1.49
18 91306-634-000 91306-634-000 / O-RING (17X3.5MM)

1 $2.07 $1.49
19 94201-30450 94201-30450 / PIN, SPLIT (3.0X45)

1 $0.55 $0.40
20 95701-06028-08 95701-06028-08 / BOLT, FLANGE (6X28)

2 $1.20 $0.86
21 95701-06032-08 95701-06032-08 / BOLT, FLANGE (6X32)

2 $1.03 $0.74
22 95701-06040-00 95701-06040-00 / BOLT, FLANGE (6X40)

2 $1.03 $0.74
23 95701-06070-00 95701-06070-00 / BOLT, FLANGE (6X70)

1 $1.30 $0.94
24 95701-06080-00 95701-06080-00 / BOLT, FLANGE (6X80)

1 $1.40 $1.01
25 96220-50178 96220-50178 / ROLLER (5X17.8)

1 $0.50 $0.36
