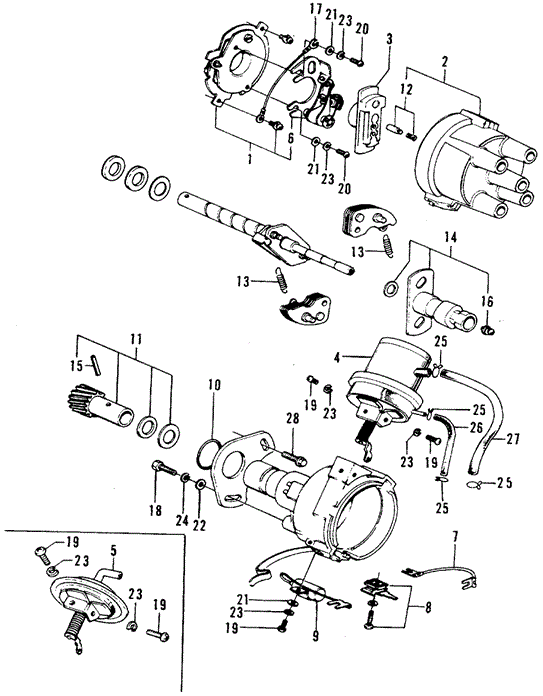

ADVANCER ASSY., VACUUM in ENGINE/DISTRIBUTOR COMPONENTS for 1975 Honda CIVIC 1200 HATCHBACK

ADVANCER ASSY., VACUUM in ENGINE/DISTRIBUTOR COMPONENTS for 1975 Honda CIVIC 1200 HATCHBACK #1
25
  • CLIP, TUBE (B7) - $0.70
23
  • WASHER, SPRING (4MM) - $0.38
23
  • WASHER, SPRING (4MM) - $0.38
3
  • HEAD, ROTOR - $5.93
23
  • WASHER, SPRING (4MM) - $0.38
13
  • SPRING SET, GOVERNOR
23
  • WASHER, SPRING (4MM) - $0.38
28
  • BOLT, FLANGE (6X14) - $0.64
22
  • WASHER, PLAIN (5MM) - $0.38
24
  • WASHER, SPRING (5MM) - $0.43
19
  • SCREW, PAN (4X8) - $0.40
21
  • WASHER, PLAIN (4MM) - $0.38
14
  • CAM SET
13
  • SPRING SET, GOVERNOR
26
  • BULK HOSE, VACUUM (3.5X1000) - $4.46
17
  • WIRE, GROUND
9
  • CONDENSER
6
  • CONTACT SET
20
  • SCREW, PAN (4X10) - $0.40
15
  • PIN, ROLLER
21
  • WASHER, PLAIN (4MM) - $0.38
21
  • WASHER, PLAIN (4MM) - $0.38
18
  • BOLT, HEX. (5X16)
25
  • CLIP, TUBE (B7) - $0.70
11
  • PINION SET
8
  • TERMINAL
  • TERMINAL
2
  • CAP ASSY., DISTRIBUTOR - $13.15
23
  • WASHER, SPRING (4MM) - $0.38
12
  • POINT ASSY., CARBON
19
  • SCREW, PAN (4X8) - $0.40
19
  • SCREW, PAN (4X8) - $0.40
5
  • ADVANCER ASSY., VACUUM
19
  • SCREW, PAN (4X8) - $0.40
25
  • CLIP, TUBE (B7) - $0.70
27
  • BULK HOSE, VACUUM (3.5X1000) - $4.46
1
  • POINTS ASSY., POINT
10
  • O-RING (26.4X3.1) (TEC) - $1.52
16
  • SCREW-WASHER (4x8)
19
  • SCREW, PAN (4X8) - $0.40
23
  • WASHER, SPRING (4MM) - $0.38
25
  • CLIP, TUBE (B7) - $0.70
7
  • WIRE, CONDENSER LEAD - $2.56
23
  • WASHER, SPRING (4MM) - $0.38
20
  • SCREW, PAN (4X10) - $0.40
No. Part # Part # / Description Qty Req. List Price Price
1 30101-639-672 30101-639-672 / POINTS ASSY., POINT

1 - -
2 30102-PA0-005 30102-PA0-005 / CAP ASSY., DISTRIBUTOR

1 $18.27 $13.15
3 30103-PA5-005 30103-PA5-005 / HEAD, ROTOR

1 $8.23 $5.93
5 30104-639-672 30104-639-672 / ADVANCER ASSY., VACUUM

1 - -
6 30105-679-015 30105-679-015 / CONTACT SET

1 - -
7 30106-634-005 30106-634-005 / WIRE, CONDENSER LEAD

1 $3.55 $2.56
8 30107-634-015 30107-634-015 / TERMINAL

1 - -
8 30107-634-015 30107-634-015 / TERMINAL

1 - -
9 30108-PA1-005 30108-PA1-005 / CONDENSER

1 - -
10 30110-PA1-732 30110-PA1-732 / O-RING (26.4X3.1) (TEC)

1 $2.12 $1.52
11 30113-634-005 30113-634-005 / PINION SET

1 - -
12 30115-634-005 30115-634-005 / POINT ASSY., CARBON

1 - -
13 30116-634-672 30116-634-672 / SPRING SET, GOVERNOR

1 - -
14 30117-639-671 30117-639-671 / CAM SET

1 - -
15 30118-634-005 30118-634-005 / PIN, ROLLER

1 - -
16 30119-634-005 30119-634-005 / SCREW-WASHER (4x8)

1 - -
17 30122-634-005 30122-634-005 / WIRE, GROUND

1 - -
18 92101-05016-0H 92101-05016-0H / BOLT, HEX. (5X16)

1 - -
19 93500-04008-0H 93500-04008-0H / SCREW, PAN (4X8)

3 $0.55 $0.40
20 93500-04010-0H 93500-04010-0H / SCREW, PAN (4X10)

2 $0.55 $0.40
21 94101-04800 94101-04800 / WASHER, PLAIN (4MM)

3 $0.53 $0.38
22 94101-05800 94101-05800 / WASHER, PLAIN (5MM)

1 $0.53 $0.38
23 94111-04800 94111-04800 / WASHER, SPRING (4MM)

5 $0.53 $0.38
24 94111-05800 94111-05800 / WASHER, SPRING (5MM)

1 $0.60 $0.43
25 95002-02070 95002-02070 / CLIP, TUBE (B7)

4 $0.97 $0.70
27 95005-35001-20M 95005-35001-20M / BULK HOSE, VACUUM (3.5X1000)

1 $6.20 $4.46
28 95701-06014-08 95701-06014-08 / BOLT, FLANGE (6X14)

1 $0.88 $0.64
