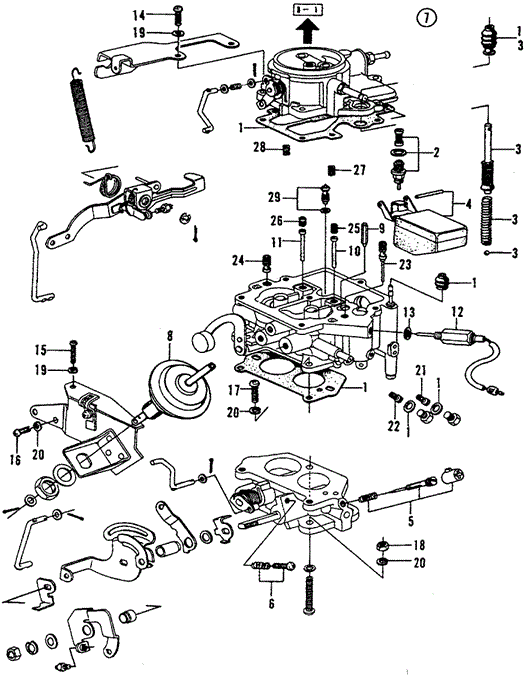

CARBURETOR ASSY. in ENGINE/CARBURETOR ('75-'76) for 1975 Honda CIVIC 1200 HATCHBACK

CARBURETOR ASSY. in ENGINE/CARBURETOR ('75-'76) for 1975 Honda CIVIC 1200 HATCHBACK #1
25
  • JET, MAIN AIR (70) (45A, 45B)
8
  • DIAPHRAGM, CARBURETOR
22
  • JET, MAIN (150) (45A, 45B)
18
  • NUT, HEX. (6MM) - $0.20
  • NUT, HEX. (6MM) - $0.20
17
  • SCREW, PAN (6X16) - $0.41
29
  • JET, POWER (45) (45, 46)
14
  • SCREW, PAN (5X14) - $0.36
10
  • TUBE, EMULSION (P)
3
  • PISTON SET (45A, 46A, 45B, 46B)
11
  • TUBE, EMULSION (S)
26
  • JET, MAIN AIR (50) (45A)(45B)(46B)
20
  • WASHER, SPRING (6MM) - $0.43
3
  • PISTON SET (45A, 46A, 45B, 46B)
6
  • SCREW SET, THROTTLE ADJUSTING
19
  • WASHER, SPRING (5MM) - $0.43
3
  • PISTON SET (45A, 46A, 45B, 46B)
1
  • GASKET SET, CARBURETOR (45A, 46A, 45B, 46B) - $17.42
21
  • JET, MAIN (97) (45A, 45B)
23
  • JET, SLOW (43)
7
  • CARBURETOR ASSY.
12
  • VALVE ASSY., SOLENOID
1
  • GASKET SET, CARBURETOR (45A, 46A, 45B, 46B) - $17.42
4
  • FLOAT SET
20
  • WASHER, SPRING (6MM) - $0.43
2
  • VALVE SET, NEEDLE (45B, 46B) - $20.14
5
  • SCREW SET, IDLE ADJUSTING
20
  • WASHER, SPRING (6MM) - $0.43
24
  • JET, SLOW (70)
1
  • GASKET SET, CARBURETOR (45A, 46A, 45B, 46B) - $17.42
1
  • GASKET SET, CARBURETOR (45A, 46A, 45B, 46B) - $17.42
28
  • JET, SLOW AIR (160)
3
  • PISTON SET (45A, 46A, 45B, 46B)
1
  • GASKET SET, CARBURETOR (45A, 46A, 45B, 46B) - $17.42
15
  • SCREW, PAN (5X20) - $0.40
19
  • WASHER, SPRING (5MM) - $0.43
27
  • JET, SLOW AIR (130) (45B, 46B)
1
  • GASKET SET, CARBURETOR (45A, 46A, 45B, 46B) - $17.42
9
  • WEIGHT, INJECTOR
16
  • SCREW, PAN (6X12) - $0.41
13
  • GASKET, SOLENOID VALVE
No. Part # Part # / Description Qty Req. List Price Price
1 16010-634-670 16010-634-670 / GASKET SET, CARBURETOR (45A, 46A, 45B, 46B)

1 $24.20 $17.42
2 16011-634-003 16011-634-003 / VALVE SET, NEEDLE (45B, 46B)

1 $27.97 $20.14
3 16012-634-670 16012-634-670 / PISTON SET (45A, 46A, 45B, 46B)

1 - -
4 16013-634-003 16013-634-003 / FLOAT SET

1 - -
5 16016-634-670 16016-634-670 / SCREW SET, IDLE ADJUSTING

1 - -
6 16017-634-003 16017-634-003 / SCREW SET, THROTTLE ADJUSTING

1 - -
7 16100-639-672 16100-639-672 / CARBURETOR ASSY.

1 - -
8 16105-634-672 16105-634-672 / DIAPHRAGM, CARBURETOR

1 - -
9 16145-634-003 16145-634-003 / WEIGHT, INJECTOR

1 - -
10 16191-634-003 16191-634-003 / TUBE, EMULSION (P)

1 - -
11 16192-634-003 16192-634-003 / TUBE, EMULSION (S)

1 - -
12 16230-634-003 16230-634-003 / VALVE ASSY., SOLENOID

1 - -
13 16231-634-003 16231-634-003 / GASKET, SOLENOID VALVE

1 - -
14 93500-05014-0H 93500-05014-0H / SCREW, PAN (5X14)

5 $0.50 $0.36
15 93500-05020-0H 93500-05020-0H / SCREW, PAN (5X20)

2 $0.55 $0.40
16 93500-06012-0H 93500-06012-0H / SCREW, PAN (6X12)

2 $0.57 $0.41
17 93500-06016-0H 93500-06016-0H / SCREW, PAN (6X16)

2 $0.57 $0.41
18 94001-06200-0S 94001-06200-0S / NUT, HEX. (6MM)

4 $0.28 $0.20
18 94001-06200-0S 94001-06200-0S / NUT, HEX. (6MM)

4 $0.28 $0.20
19 94111-05800 94111-05800 / WASHER, SPRING (5MM)

7 $0.60 $0.43
20 94111-06800 94111-06800 / WASHER, SPRING (6MM)

8 $0.60 $0.43
21 99101-634-0970 99101-634-0970 / JET, MAIN (97) (45A, 45B)

1 - -
22 99102-634-1500 99102-634-1500 / JET, MAIN (150) (45A, 45B)

1 - -
23 99103-664-0430 99103-664-0430 / JET, SLOW (43)

1 - -
24 99104-634-0700 99104-634-0700 / JET, SLOW (70)

1 - -
25 99105-634-0700 99105-634-0700 / JET, MAIN AIR (70) (45A, 45B)

1 - -
26 99106-634-0500 99106-634-0500 / JET, MAIN AIR (50) (45A)(45B)(46B)

1 - -
27 99108-634-1300 99108-634-1300 / JET, SLOW AIR (130) (45B, 46B)

1 - -
28 99108-664-1600 99108-664-1600 / JET, SLOW AIR (160)

1 - -
29 99112-634-0450 99112-634-0450 / JET, POWER (45) (45, 46)

1 - -
