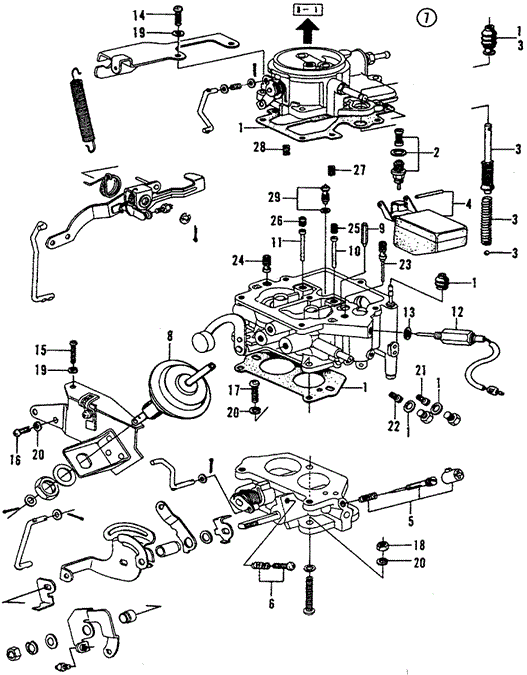

CARBURETOR ASSY. in ENGINE/CARBURETOR ('75-'76) for 1975 Honda CIVIC 1200 HATCHBACK

Select CARBURETOR ASSY. Part

1975 Honda CIVIC 1200 HATCHBACK

Change vehicle

No. Part # Part # / Description List Price Price
1 16010-634-670 16010-634-670 / GASKET SET, CARBURETOR (45A, 46A, 45B, 46B)

$24.20 $17.42
2 16011-634-003 16011-634-003 / VALVE SET, NEEDLE (45B, 46B)

$27.97 $20.14
3 16012-634-670 16012-634-670 / PISTON SET (45A, 46A, 45B, 46B)

- -
4 16013-634-003 16013-634-003 / FLOAT SET

- -
5 16016-634-670 16016-634-670 / SCREW SET, IDLE ADJUSTING

- -
6 16017-634-003 16017-634-003 / SCREW SET, THROTTLE ADJUSTING

- -
7 16100-634-673 16100-634-673 / CARBURETOR ASSY.

- -
8 16105-634-672 16105-634-672 / DIAPHRAGM, CARBURETOR

- -
9 16145-634-003 16145-634-003 / WEIGHT, INJECTOR

- -
10 16191-634-003 16191-634-003 / TUBE, EMULSION (P)

- -
11 16192-634-003 16192-634-003 / TUBE, EMULSION (S)

- -
12 16230-634-003 16230-634-003 / VALVE ASSY., SOLENOID

- -
13 16231-634-003 16231-634-003 / GASKET, SOLENOID VALVE

- -
14 93500-05014-0H 93500-05014-0H / SCREW, PAN (5X14)

$0.50 $0.36
15 93500-05020-0H 93500-05020-0H / SCREW, PAN (5X20)

$0.55 $0.40
16 93500-06012-0H 93500-06012-0H / SCREW, PAN (6X12)

$0.57 $0.41
17 93500-06016-0H 93500-06016-0H / SCREW, PAN (6X16)

$0.57 $0.41
18 94001-06200-0S 94001-06200-0S / NUT, HEX. (6MM)

$0.28 $0.20
18 94001-06200-0S 94001-06200-0S / NUT, HEX. (6MM)

$0.28 $0.20
19 94111-05800 94111-05800 / WASHER, SPRING (5MM)

$0.60 $0.43
20 94111-06800 94111-06800 / WASHER, SPRING (6MM)

$0.60 $0.43
21 99101-634-0970 99101-634-0970 / JET, MAIN (97) (45A, 45B)

- -
22 99102-634-1500 99102-634-1500 / JET, MAIN (150) (45A, 45B)

- -
23 99103-664-0430 99103-664-0430 / JET, SLOW (43)

- -
24 99104-634-0700 99104-634-0700 / JET, SLOW (70)

- -
25 99105-634-0700 99105-634-0700 / JET, MAIN AIR (70) (45A, 45B)

- -
26 99106-634-0500 99106-634-0500 / JET, MAIN AIR (50) (45A)(45B)(46B)

- -
27 99108-634-1300 99108-634-1300 / JET, SLOW AIR (130) (45B, 46B)

- -
28 99108-664-1600 99108-664-1600 / JET, SLOW AIR (160)

- -
29 99112-634-0450 99112-634-0450 / JET, POWER (45) (45, 46)

- -
