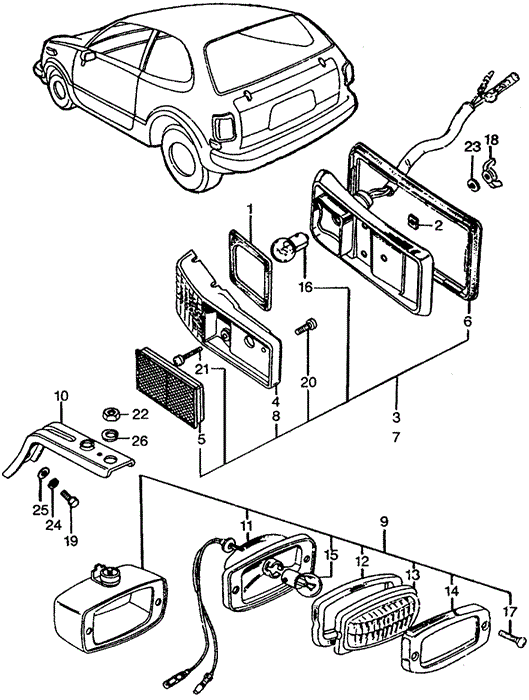

LIGHT, R. RR. SIDE TURN SIGNAL in ELECTRICAL / EXHAUST / HEATER / FUEL/REAR SIDE MARKER - BACK-UP LIGHT for 1975 Honda CIVIC 1200 HATCHBACK

LIGHT, R. RR. SIDE TURN SIGNAL in ELECTRICAL / EXHAUST / HEATER / FUEL/REAR SIDE MARKER - BACK-UP LIGHT for 1975 Honda CIVIC 1200 HATCHBACK #1
21
  • SCREW, PAN (4X23)
18
  • WINGNUT (4MM)
19
  • BOLT, HEX. (6X12) - $0.54
9
  • LIGHT ASSY., BACK-UP
6
  • GASKET, RR. TURN SIGNAL HOUSING
25
  • WASHER, SPRING (6MM) - $0.36
5
  • REFLECTOR, R. RR.
12
  • GASKET, BACK-UP LIGHT
13
  • LENS, BACK-UP LIGHT
14
  • RIM, BACK-UP LIGHT
3
  • LIGHT, R. RR. SIDE TURN SIGNAL
23
  • WASHER, PLAIN (4MM) - $0.38
15
  • BULB (12V 32CP) - $1.15
8
  • LENS, L.
11
  • HOUSING, BACK-UP LIGHT
1
  • GASKET, LENS
16
  • BULB (12V8W) - $1.39
22
  • NUT, HEX. (10MM) - $0.59
10
  • BRACKET, BACK-UP LIGHT
2
  • NUT, SQUARE (4MM)
26
  • WASHER, SPRING (10MM) - $0.46
7
  • LIGHT, L. RR. SIDE TURN SIGNAL
17
  • SCREW, OVAL (4X16)
4
  • LENS, R.
20
  • SCREW, TAPPING (4X6)
24
  • WASHER, PLAIN (6MM) - $0.25
No. Part # Part # / Description Qty Req. List Price Price
1 33802-634-671 33802-634-671 / GASKET, LENS

2 - -
2 33805-634-671 33805-634-671 / NUT, SQUARE (4MM)

4 - -
3 33900-634-671 33900-634-671 / LIGHT, R. RR. SIDE TURN SIGNAL

1 - -
4 33901-634-671 33901-634-671 / LENS, R.

1 - -
5 33903-634-671 33903-634-671 / REFLECTOR, R. RR.

2 - -
6 33904-634-671 33904-634-671 / GASKET, RR. TURN SIGNAL HOUSING

2 - -
7 33950-634-671 33950-634-671 / LIGHT, L. RR. SIDE TURN SIGNAL

1 - -
8 33951-634-671 33951-634-671 / LENS, L.

1 - -
9 34155-634-673 34155-634-673 / LIGHT ASSY., BACK-UP

2 - -
10 34156-634-662 34156-634-662 / BRACKET, BACK-UP LIGHT

2 - -
11 34160-621-013 34160-621-013 / HOUSING, BACK-UP LIGHT

2 - -
12 34161-500-811 34161-500-811 / GASKET, BACK-UP LIGHT

2 - -
13 34162-634-671 34162-634-671 / LENS, BACK-UP LIGHT

2 - -
14 34163-634-671 34163-634-671 / RIM, BACK-UP LIGHT

2 - -
15 34903-SB6-671 34903-SB6-671 / BULB (12V 32CP)

2 $1.60 $1.15
16 34909-505-003 34909-505-003 / BULB (12V8W)

2 $1.93 $1.39
17 90143-634-000 90143-634-000 / SCREW, OVAL (4X16)

4 - -
18 90371-611-910 90371-611-910 / WINGNUT (4MM)

4 - -
19 92101-06012-0H 92101-06012-0H / BOLT, HEX. (6X12)

4 $0.75 $0.54
20 93901-24010 93901-24010 / SCREW, TAPPING (4X6)

2 - -
21 93500-04023-4J 93500-04023-4J / SCREW, PAN (4X23)

4 - -
22 94001-10080-0S 94001-10080-0S / NUT, HEX. (10MM)

2 $0.82 $0.59
23 94101-04800 94101-04800 / WASHER, PLAIN (4MM)

4 $0.53 $0.38
24 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

4 $0.35 $0.25
25 94111-06000 94111-06000 / WASHER, SPRING (6MM)

4 $0.50 $0.36
26 94111-10800 94111-10800 / WASHER, SPRING (10MM)

2 $0.63 $0.46
