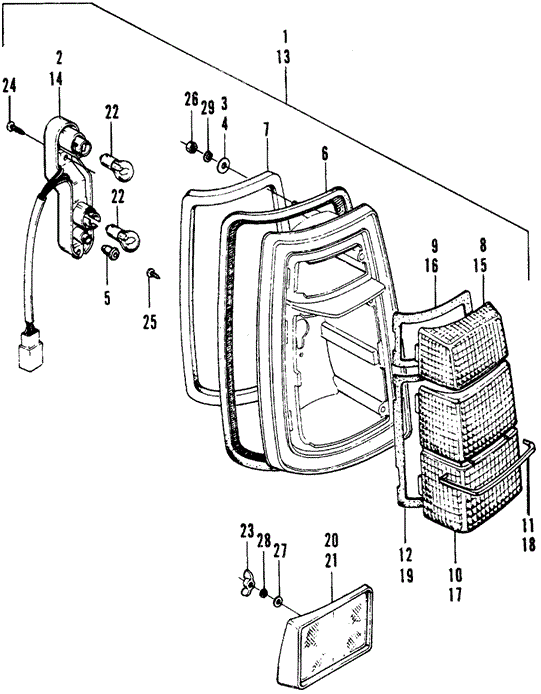

TAILLIGHT ASSY., R. in ELECTRICAL / EXHAUST / HEATER / FUEL/REAR COMBINATION LIGHT for 1975 Honda CIVIC 1200 HATCHBACK

TAILLIGHT ASSY., R. in ELECTRICAL / EXHAUST / HEATER / FUEL/REAR COMBINATION LIGHT for 1975 Honda CIVIC 1200 HATCHBACK #1
22
  • BULB, STOP & TAILLIGHT (12V 27/7W) - $2.10
17
  • LENS, L. STOP & TAILLIGHT
9
  • GASKET, R. TURN SIGNAL LENS
13
  • TAILLIGHT ASSY., L.
15
  • LENS, L. TURN SIGNAL
12
  • GASKET, R. STOP & TAILLIGHT LENS
20
  • REFLECTOR ASSY., R. RR.
25
  • SCREW, TAPPING (3X12) - $0.36
27
  • WASHER, PLAIN (4MM) - $0.38
28
  • WASHER, SPRING (4MM) - $0.38
7
  • GASKET, TAILLIGHT HOUSING
23
  • WINGNUT (4MM)
5
  • PLUG, TAILLIGHT HOLE
11
  • MOLDING, R. TAILLIGHT LENS
21
  • REFLECTOR ASSY., L. RR.
26
  • NUT, HEX. (6MM) - $0.49
24
  • SCREW, TAPPING (4X16) - $0.40
3
  • WASHER
19
  • GASKET, L. STOP & TAILLIGHT LENS
8
  • LENS, R. TURN SIGNAL
18
  • MOLDING, L. TAILLIGHT LENS
4
  • WASHER
29
  • WASHER, SPRING (6MM) - $0.43
2
  • HOUSING, R. TAILLIGHT
  • HOUSING, R. TAILLIGHT
16
  • GASKET, L. TURN SIGNAL LENS
14
  • HOUSING, L. TAILLIGHT
22
  • BULB, STOP & TAILLIGHT (12V 27/7W) - $2.10
10
  • LENS, R. STOP & TAILLIGHT
6
  • GASKET, TAILLIGHT LENS
1
  • TAILLIGHT ASSY., R.
No. Part # Part # / Description Qty Req. List Price Price
1 33500-634-673 33500-634-673 / TAILLIGHT ASSY., R.

1 - -
2 33501-634-672 33501-634-672 / HOUSING, R. TAILLIGHT

1 - -
2 33501-634-671 33501-634-671 / HOUSING, R. TAILLIGHT

1 - -
3 33511-634-003 33511-634-003 / WASHER

2 - -
4 33512-634-003 33512-634-003 / WASHER

2 - -
5 33513-634-671 33513-634-671 / PLUG, TAILLIGHT HOLE

2 - -
6 33515-634-671 33515-634-671 / GASKET, TAILLIGHT LENS

2 - -
7 33516-634-672 33516-634-672 / GASKET, TAILLIGHT HOUSING

2 - -
8 33520-634-671 33520-634-671 / LENS, R. TURN SIGNAL

1 - -
9 33525-634-003 33525-634-003 / GASKET, R. TURN SIGNAL LENS

1 - -
10 33530-634-003 33530-634-003 / LENS, R. STOP & TAILLIGHT

1 - -
11 33531-634-003 33531-634-003 / MOLDING, R. TAILLIGHT LENS

1 - -
12 33535-634-003 33535-634-003 / GASKET, R. STOP & TAILLIGHT LENS

1 - -
13 33550-634-673 33550-634-673 / TAILLIGHT ASSY., L.

1 - -
14 33551-634-672 33551-634-672 / HOUSING, L. TAILLIGHT

1 - -
15 33570-634-671 33570-634-671 / LENS, L. TURN SIGNAL

1 - -
16 33575-634-003 33575-634-003 / GASKET, L. TURN SIGNAL LENS

1 - -
17 33580-634-003 33580-634-003 / LENS, L. STOP & TAILLIGHT

1 - -
18 33581-634-003 33581-634-003 / MOLDING, L. TAILLIGHT LENS

1 - -
19 33585-634-003 33585-634-003 / GASKET, L. STOP & TAILLIGHT LENS

1 - -
20 33800-634-922 33800-634-922 / REFLECTOR ASSY., R. RR.

1 - -
21 33850-634-922 33850-634-922 / REFLECTOR ASSY., L. RR.

1 - -
22 34906-MG9-771 34906-MG9-771 / BULB, STOP & TAILLIGHT (12V 27/7W)

4 $2.92 $2.10
23 90371-611-910 90371-611-910 / WINGNUT (4MM)

2 - -
24 93901-24410 93901-24410 / SCREW, TAPPING (4X16)

4 $0.55 $0.40
25 93901-32380 93901-32380 / SCREW, TAPPING (3X12)

6 $0.50 $0.36
26 94001-06080-0S 94001-06080-0S / NUT, HEX. (6MM)

4 $0.68 $0.49
27 94101-04800 94101-04800 / WASHER, PLAIN (4MM)

2 $0.53 $0.38
28 94111-04800 94111-04800 / WASHER, SPRING (4MM)

2 $0.53 $0.38
29 94111-06800 94111-06800 / WASHER, SPRING (6MM)

4 $0.60 $0.43
