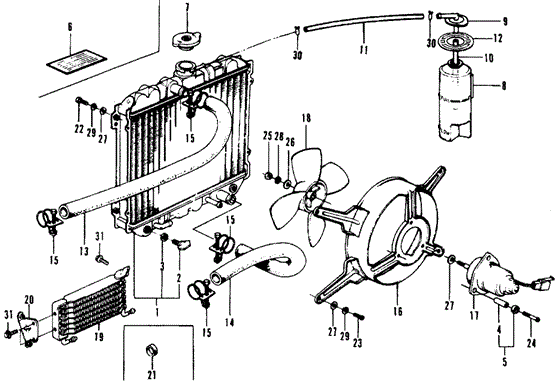

RADIATOR in ELECTRICAL / EXHAUST / HEATER / FUEL/HMT RADIATOR for 1975 Honda CIVIC 1200 HATCHBACK

RADIATOR in ELECTRICAL / EXHAUST / HEATER / FUEL/HMT RADIATOR for 1975 Honda CIVIC 1200 HATCHBACK #1
17
  • MOTOR, FAN
23
  • BOLT, HEX. (6X16) - $0.56
3
  • GASKET, DRAIN (DENSO) - $1.49
  • GASKET, DRAIN - $1.49
11
  • TUBE, RESERVOIR TANK - $10.01
22
  • BOLT, HEX. (6X10)
15
  • CLAMP, WATER HOSE
  • CLAMP, WATER HOSE
27
  • WASHER, PLAIN (6MM) - $0.25
29
  • WASHER, SPRING (6MM) - $0.43
27
  • WASHER, PLAIN (6MM) - $0.25
1
  • RADIATOR
15
  • CLAMP, WATER HOSE
  • CLAMP, WATER HOSE
18
  • FAN, COOLING
28
  • WASHER, SPRING (5MM) - $0.43
30
  • CLIP, TUBE (C11) - $0.65
24
  • SCREW, PAN (4X18) - $0.40
15
  • CLAMP, WATER HOSE
  • CLAMP, WATER HOSE
6
  • LABEL, RADIATOR CAUTION
30
  • CLIP, TUBE (C11) - $0.65
9
  • CAP, RESERVOIR TANK
8
  • TANK, RESERVOIR
10
  • HOSE, RESERVOIR TANK
26
  • WASHER, PLAIN (5MM) - $0.38
13
  • HOSE, WATER (UPPER)
  • HOSE, WATER (UPPER)
27
  • WASHER, PLAIN (6MM) - $0.25
29
  • WASHER, SPRING (6MM) - $0.43
25
  • NUT, HEX. (5MM) - $0.42
2
  • VALVE, DRAIN
12
  • MARK, RESERVE TANK
15
  • CLAMP, WATER HOSE
  • CLAMP, WATER HOSE
16
  • SHROUD
14
  • HOSE, WATER (LOWER)
7
  • CAP, RADIATOR (DENSO) - $18.14
No. Part # Part # / Description Qty Req. List Price Price
1 19010-639-000 19010-639-000 / RADIATOR

1 - -
2 19011-636-013 19011-636-013 / VALVE, DRAIN

1 - -
3 19012-ZB5-003 19012-ZB5-003 / GASKET, DRAIN (DENSO)

1 $2.07 $1.49
3 19012-ZB5-003 19012-ZB5-003 / GASKET, DRAIN

1 $2.07 $1.49
6 19043-676-640 19043-676-640 / LABEL, RADIATOR CAUTION

1 - -
7 19045-692-003 19045-692-003 / CAP, RADIATOR (DENSO)

1 $25.20 $18.14
8 19101-657-000 19101-657-000 / TANK, RESERVOIR

1 - -
9 19102-611-000 19102-611-000 / CAP, RESERVOIR TANK

1 - -
10 19103-611-000 19103-611-000 / HOSE, RESERVOIR TANK

1 - -
11 19104-634-000 19104-634-000 / TUBE, RESERVOIR TANK

1 $13.90 $10.01
12 19105-634-010 19105-634-010 / MARK, RESERVE TANK

1 - -
13 19501-634-030 19501-634-030 / HOSE, WATER (UPPER)

1 - -
13 19501-634-030 19501-634-030 / HOSE, WATER (UPPER)

1 - -
14 19502-639-010 19502-639-010 / HOSE, WATER (LOWER)

1 - -
15 19511-634-003 19511-634-003 / CLAMP, WATER HOSE

4 - -
15 19511-634-305 19511-634-305 / CLAMP, WATER HOSE

4 - -
16 38615-634-812 38615-634-812 / SHROUD

1 - -
17 19030-679-003 19030-679-003 / MOTOR, FAN

1 - -
18 38617-634-811 38617-634-811 / FAN, COOLING

1 - -
22 92101-06010-0H 92101-06010-0H / BOLT, HEX. (6X10)

4 - -
23 92101-06016-0H 92101-06016-0H / BOLT, HEX. (6X16)

4 $0.78 $0.56
24 93500-04018-0H 93500-04018-0H / SCREW, PAN (4X18)

3 $0.55 $0.40
25 94001-05080-0S 94001-05080-0S / NUT, HEX. (5MM)

1 $0.58 $0.42
26 94101-05800 94101-05800 / WASHER, PLAIN (5MM)

1 $0.53 $0.38
27 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

9 $0.35 $0.25
28 94111-05800 94111-05800 / WASHER, SPRING (5MM)

1 $0.60 $0.43
29 94111-06800 94111-06800 / WASHER, SPRING (6MM)

8 $0.60 $0.43
30 95002-70000 95002-70000 / CLIP, TUBE (C11)

2 $0.90 $0.65
