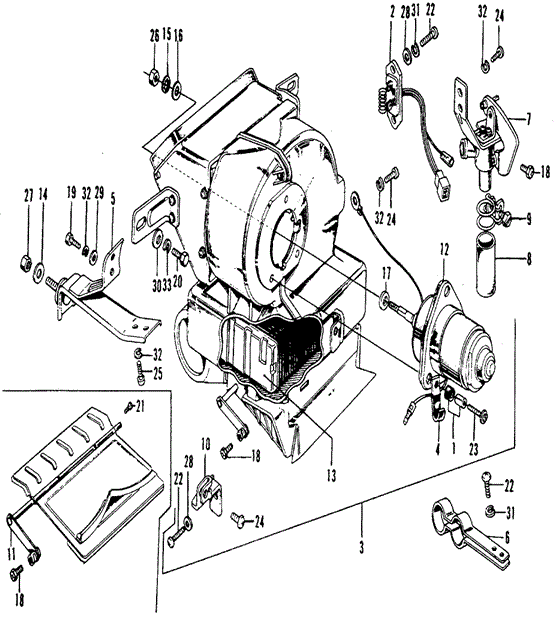

HEATER ASSY. in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER (1) for 1975 Honda CIVIC 1200 HATCHBACK

HEATER ASSY. in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER (1) for 1975 Honda CIVIC 1200 HATCHBACK #1
18
  • BOLT, HEX. (4x16)
25
  • SCREW, PAN (5X20) - $0.40
2
  • REGISTER ASSY.
24
  • SCREW, PAN (5X12) - $0.40
30
  • WASHER, PLAIN (6MM) - $0.25
6
  • CLAMP, WATER HOSE
32
  • WASHER, SPRING (5MM) - $0.43
18
  • BOLT, HEX. (4x16)
32
  • WASHER, SPRING (5MM) - $0.43
26
  • NUT, HEX. (5MM) - $0.42
28
  • WASHER, PLAIN (4MM) - $0.38
17
  • WASHER, PLAIN (7MM)
24
  • SCREW, PAN (5X12) - $0.40
29
  • WASHER, PLAIN (5MM) - $0.38
14
  • WASHER
23
  • SCREW, PAN (4X20) - $0.40
31
  • WASHER, SPRING (4MM) - $0.38
33
  • WASHER, SPRING (6MM) - $0.43
31
  • WASHER, SPRING (4MM) - $0.38
22
  • SCREW, PAN (4X16) - $0.36
3
  • HEATER ASSY.
11
  • LINK, HOT AIR CABLE
22
  • SCREW, PAN (4X16) - $0.36
13
  • EXCHANGER, HEAT
24
  • SCREW, PAN (5X12) - $0.40
20
  • BOLT, HEX. (6X12) - $0.54
9
  • CLAMP, HOSE
28
  • WASHER, PLAIN (4MM) - $0.38
5
  • BRACKET, HEATER (LOWER)
32
  • WASHER, SPRING (5MM) - $0.43
27
  • NUT, HEX. (8MM) - $0.43
21
  • SCREW, PAN (3X6) - $0.36
8
  • HOSE, WATER
4
  • CLAMP, HEATER CORD
18
  • BOLT, HEX. (4x16)
7
  • VALVE, WATER
19
  • BOLT, HEX. (5X12) - $0.41
16
  • WASHER, PLAIN (5MM)
15
  • WASHER, SPECIAL (5MM)
12
  • MOTOR ASSY., HEATER
32
  • WASHER, SPRING (5MM) - $0.43
10
  • CLAMP, HOT AIR CABLE
22
  • SCREW, PAN (4X16) - $0.36
No. Part # Part # / Description Qty Req. List Price Price
2 39107-634-670 39107-634-670 / REGISTER ASSY.

1 - -
3 39210-634-672 39210-634-672 / HEATER ASSY.

1 - -
4 39213-634-000 39213-634-000 / CLAMP, HEATER CORD

1 - -
5 39214-634-670 39214-634-670 / BRACKET, HEATER (LOWER)

1 - -
6 39215-634-671 39215-634-671 / CLAMP, WATER HOSE

1 - -
7 39217-634-671 39217-634-671 / VALVE, WATER

1 - -
8 39218-634-670 39218-634-670 / HOSE, WATER

1 - -
9 39219-634-670 39219-634-670 / CLAMP, HOSE

1 - -
10 39227-634-671 39227-634-671 / CLAMP, HOT AIR CABLE

1 - -
11 39228-634-671 39228-634-671 / LINK, HOT AIR CABLE

1 - -
12 39230-634-671 39230-634-671 / MOTOR ASSY., HEATER

1 - -
13 39240-634-670 39240-634-670 / EXCHANGER, HEAT

1 - -
14 90501-594-000 90501-594-000 / WASHER

1 - -
15 90503-634-000 90503-634-000 / WASHER, SPECIAL (5MM)

1 - -
16 90504-634-000 90504-634-000 / WASHER, PLAIN (5MM)

1 - -
17 90505-634-000 90505-634-000 / WASHER, PLAIN (7MM)

1 - -
18 92000-04016-0A 92000-04016-0A / BOLT, HEX. (4x16)

3 - -
19 92101-05012-0H 92101-05012-0H / BOLT, HEX. (5X12)

4 $0.57 $0.41
20 92101-06012-0H 92101-06012-0H / BOLT, HEX. (6X12)

2 $0.75 $0.54
21 93500-03006-0H 93500-03006-0H / SCREW, PAN (3X6)

2 $0.50 $0.36
22 93500-04016-0H 93500-04016-0H / SCREW, PAN (4X16)

2 $0.50 $0.36
23 93500-04020-0H 93500-04020-0H / SCREW, PAN (4X20)

3 $0.55 $0.40
24 93500-05012-0H 93500-05012-0H / SCREW, PAN (5X12)

4 $0.55 $0.40
25 93500-05020-0H 93500-05020-0H / SCREW, PAN (5X20)

4 $0.55 $0.40
26 94001-05080-0S 94001-05080-0S / NUT, HEX. (5MM)

1 $0.58 $0.42
27 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

1 $0.60 $0.43
28 94101-04800 94101-04800 / WASHER, PLAIN (4MM)

6 $0.53 $0.38
29 94101-05800 94101-05800 / WASHER, PLAIN (5MM)

2 $0.53 $0.38
30 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

2 $0.35 $0.25
31 94111-04800 94111-04800 / WASHER, SPRING (4MM)

2 $0.53 $0.38
32 94111-05800 94111-05800 / WASHER, SPRING (5MM)

6 $0.60 $0.43
33 94111-06800 94111-06800 / WASHER, SPRING (6MM)

2 $0.60 $0.43
