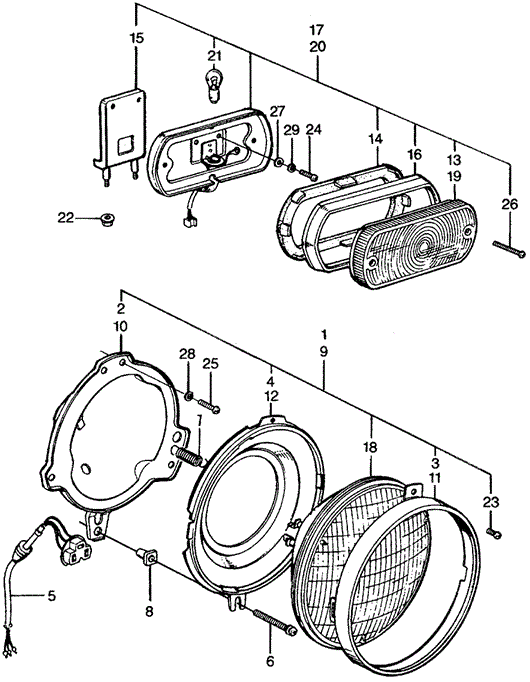

HEADLIGHT ASSY., L. in ELECTRICAL / EXHAUST / HEATER / FUEL/HEADLIGHT - FRONT COMBINATION LIGHT ('75-'76) for 1975 Honda CIVIC 1200 HATCHBACK

HEADLIGHT ASSY., L. in ELECTRICAL / EXHAUST / HEATER / FUEL/HEADLIGHT - FRONT COMBINATION LIGHT ('75-'76) for 1975 Honda CIVIC 1200 HATCHBACK #1
4
  • RING, R. SETTING
8
  • NUT, NYLON CAP
20
  • LIGHT ASSY., L. FR. COMBINATION
28
  • WASHER, SPRING (5MM) - $0.43
24
  • SCREW, PAN (5X12) - $0.40
29
  • WASHER, SPRING (5MM) - $0.43
16
  • RIM, COMBINATION LIGHT
17
  • LIGHT ASSY., R. FR. COMBINATION
22
  • NUT, COMBINATION BRACKET
6
  • SCREW, HEADLIGHT ADJUSTING
9
  • HEADLIGHT ASSY., L.
26
  • SCREW, PAN (5X30)
21
  • BULB, STOP & TAILLIGHT (12V 27/7W) - $2.10
23
  • SCREW, PAN (4X8)
10
  • CASE, L. HEADLIGHT
14
  • GASKET, FR. COMBINATION LIGHT
19
  • LENS, R. FR. COMBINATION LIGHT
5
  • SOCKET ASSY., HEADLIGHT
1
  • HEADLIGHT ASSY., R.
18
  • UNIT, SEALED BEAM (STANLEY) - $7.38
15
  • BRACKET, R. COMBINATION LIGHT
3
  • RING, R. RETAINER
13
  • LENS, R. FR. COMBINATION LIGHT
11
  • RING, L. RETAINER
7
  • SPRING, ADJUSTING
25
  • SCREW, PAN (5X16) - $0.40
12
  • RING, L. SETTING
2
  • CASE, R. HEADLIGHT
27
  • WASHER, PLAIN (5MM) - $0.38
No. Part # Part # / Description Qty Req. List Price Price
1 33100-634-667 33100-634-667 / HEADLIGHT ASSY., R.

1 - -
2 33101-634-661 33101-634-661 / CASE, R. HEADLIGHT

1 - -
3 33102-634-671 33102-634-671 / RING, R. RETAINER

1 - -
4 33103-634-671 33103-634-671 / RING, R. SETTING

1 - -
5 33114-634-671 33114-634-671 / SOCKET ASSY., HEADLIGHT

2 - -
6 33143-634-671 33143-634-671 / SCREW, HEADLIGHT ADJUSTING

4 - -
7 33144-634-671 33144-634-671 / SPRING, ADJUSTING

2 - -
8 33145-568-670 33145-568-670 / NUT, NYLON CAP

4 - -
9 33150-634-667 33150-634-667 / HEADLIGHT ASSY., L.

1 - -
10 33151-634-661 33151-634-661 / CASE, L. HEADLIGHT

1 - -
11 33152-634-671 33152-634-671 / RING, L. RETAINER

1 - -
12 33153-634-671 33153-634-671 / RING, L. SETTING

1 - -
19 33302-568-003 33302-568-003 / LENS, R. FR. COMBINATION LIGHT

1 - -
14 33303-568-003 33303-568-003 / GASKET, FR. COMBINATION LIGHT

2 - -
15 33304-634-660 33304-634-660 / BRACKET, R. COMBINATION LIGHT

2 - -
16 33305-568-003 33305-568-003 / RIM, COMBINATION LIGHT

2 - -
17 33310-634-660 33310-634-660 / LIGHT ASSY., R. FR. COMBINATION

1 - -
18 33321-568-671AH 33321-568-671AH / UNIT, SEALED BEAM (STANLEY)

2 $10.25 $7.38
20 33360-634-660 33360-634-660 / LIGHT ASSY., L. FR. COMBINATION

1 - -
21 34906-MG9-771 34906-MG9-771 / BULB, STOP & TAILLIGHT (12V 27/7W)

2 $2.92 $2.10
22 90145-634-670 90145-634-670 / NUT, COMBINATION BRACKET

4 - -
23 93500-04008-3B 93500-04008-3B / SCREW, PAN (4X8)

4 - -
24 93500-05012-0H 93500-05012-0H / SCREW, PAN (5X12)

4 $0.55 $0.40
25 93500-05016-0A 93500-05016-0A / SCREW, PAN (5X16)

6 $0.55 $0.40
26 93500-05030-0B 93500-05030-0B / SCREW, PAN (5X30)

4 - -
27 94101-05800 94101-05800 / WASHER, PLAIN (5MM)

4 $0.53 $0.38
28 94111-05000 94111-05000 / WASHER, SPRING (5MM)

6 $0.60 $0.43
29 94111-05800 94111-05800 / WASHER, SPRING (5MM)

4 $0.60 $0.43
