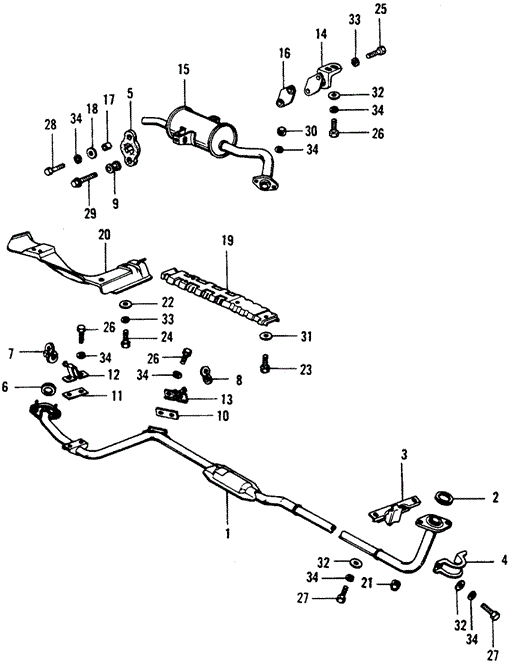

PIPE, EX. in ELECTRICAL / EXHAUST / HEATER / FUEL/EXHAUST PIPE - MUFFLER ('75-'76) for 1975 Honda CIVIC 1200 HATCHBACK

PIPE, EX. in ELECTRICAL / EXHAUST / HEATER / FUEL/EXHAUST PIPE - MUFFLER ('75-'76) for 1975 Honda CIVIC 1200 HATCHBACK #1
32
  • WASHER, PLAIN (8MM) - $0.79
34
  • WASHER, SPRING (8MM) - $0.38
4
  • RETAINER, EX. PIPE
26
  • BOLT, HEX. (8X16) - $0.60
19
  • PLATE, HEAT SHUTTER BAFFLE
32
  • WASHER, PLAIN (8MM) - $0.79
2
  • GASKET, EX. PIPE - $4.34
  • GASKET, EX. PIPE - $4.98
  • GASKET, EX. PIPE
31
  • WASHER, PLAIN (6MM) - $0.25
20
  • PLATE, TANK HEAT SHUTTER BAFFLE
10
  • INSULATOR A, EX. PIPE
32
  • WASHER, PLAIN (8MM) - $0.79
33
  • WASHER, SPRING (6MM) - $0.43
17
  • COLLAR, MUFFLER MOUNTING
27
  • BOLT, HEX. (8X20) - $0.64
22
  • WASHER, FLAT (20MM)
13
  • BRACKET D, EX. PIPE MOUNTING
34
  • WASHER, SPRING (8MM) - $0.38
14
  • MOUNT, MUFFLER
27
  • BOLT, HEX. (8X20) - $0.64
9
  • RETAINER, EX. PIPE
7
  • RUBBER, MUFFLER MOUNTING
28
  • BOLT, HEX. (8X32)
3
  • BRACKET, EX. PIPE
34
  • WASHER, SPRING (8MM) - $0.38
23
  • BOLT, HEX. (6X10) - $0.55
30
  • NUT, HEX. (8MM) - $0.43
34
  • WASHER, SPRING (8MM) - $0.38
18
  • WASHER, EXTENSION END
33
  • WASHER, SPRING (6MM) - $0.43
26
  • BOLT, HEX. (8X16) - $0.60
34
  • WASHER, SPRING (8MM) - $0.38
16
  • INSULATOR, MUFFLER SETTING - $9.74
11
  • INSULATOR A, EX. PIPE
34
  • WASHER, SPRING (8MM) - $0.38
15
  • MUFFLER
26
  • BOLT, HEX. (8X16) - $0.60
25
  • BOLT, HEX. (6X20) - $0.50
  • BOLT-WASHER (6X20) - $0.64
  • BOLT-WASHER (6X20) - $0.64
5
  • RUBBER D, EX. MOUNTING
8
  • MOUNT, EX. PIPE
21
  • NUT, SELF-LOCK (10MM) - $2.36
29
  • BOLT, HEX. (8X40)
1
  • PIPE, EX.
12
  • BRACKET C, EX. PIPE MOUNTING
24
  • BOLT, HEX. (6X12) - $0.56
  • BOLT, HEX. (6X12) - $0.56
34
  • WASHER, SPRING (8MM) - $0.38
6
  • GASKET, EX. PIPE - $4.98
No. Part # Part # / Description Qty Req. List Price Price
1 18210-634-661 18210-634-661 / PIPE, EX.

1 - -
2 18212-634-010 18212-634-010 / GASKET, EX. PIPE

1 $6.03 $4.34
6 18216-634-000 18216-634-000 / GASKET, EX. PIPE

1 $6.92 $4.98
2 18212-634-S10 18212-634-S10 / GASKET, EX. PIPE

1 - -
3 18213-634-660 18213-634-660 / BRACKET, EX. PIPE

1 - -
4 18214-634-660 18214-634-660 / RETAINER, EX. PIPE

1 - -
5 18215-659-010 18215-659-010 / RUBBER D, EX. MOUNTING

1 - -
7 18234-634-660 18234-634-660 / RUBBER, MUFFLER MOUNTING

1 - -
8 18234-634-940 18234-634-940 / MOUNT, EX. PIPE

1 - -
9 18236-659-020 18236-659-020 / RETAINER, EX. PIPE

1 - -
10 18237-634-660 18237-634-660 / INSULATOR A, EX. PIPE

1 - -
11 18237-659-003 18237-659-003 / INSULATOR A, EX. PIPE

1 - -
12 18248-634-660 18248-634-660 / BRACKET C, EX. PIPE MOUNTING

1 - -
13 18249-634-660 18249-634-660 / BRACKET D, EX. PIPE MOUNTING

1 - -
14 18305-659-000 18305-659-000 / MOUNT, MUFFLER

1 - -
15 18307-634-662 18307-634-662 / MUFFLER

1 - -
16 18342-659-000 18342-659-000 / INSULATOR, MUFFLER SETTING

1 $13.53 $9.74
17 18351-659-020 18351-659-020 / COLLAR, MUFFLER MOUNTING

1 - -
18 54314-611-000 54314-611-000 / WASHER, EXTENSION END

1 - -
19 70216-634-670 70216-634-670 / PLATE, HEAT SHUTTER BAFFLE

1 - -
20 70266-634-670 70266-634-670 / PLATE, TANK HEAT SHUTTER BAFFLE

1 - -
21 90303-692-003 90303-692-003 / NUT, SELF-LOCK (10MM)

2 $3.28 $2.36
22 91412-538-000 91412-538-000 / WASHER, FLAT (20MM)

4 - -
23 92101-06010-0A 92101-06010-0A / BOLT, HEX. (6X10)

3 $0.77 $0.55
24 92101-06012 92101-06012 / BOLT, HEX. (6X12)

4 $0.78 $0.56
24 92101-06012-0A 92101-06012-0A / BOLT, HEX. (6X12)

4 $0.78 $0.56
25 92101-06020-0A 92101-06020-0A / BOLT, HEX. (6X20)

2 $0.70 $0.50
25 93404-06020-08 93404-06020-08 / BOLT-WASHER (6X20)

2 $0.88 $0.64
25 93404-06020-08 93404-06020-08 / BOLT-WASHER (6X20)

2 $0.88 $0.64
26 92101-08016-0H 92101-08016-0H / BOLT, HEX. (8X16)

6 $0.83 $0.60
27 92101-08020-0H 92101-08020-0H / BOLT, HEX. (8X20)

4 $0.88 $0.64
28 92000-08032-0H 92000-08032-0H / BOLT, HEX. (8X32)

1 - -
29 92000-08040-0H 92000-08040-0H / BOLT, HEX. (8X40)

1 - -
30 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

2 $0.60 $0.43
31 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

3 $0.35 $0.25
32 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

6 $1.10 $0.79
33 94111-06800 94111-06800 / WASHER, SPRING (6MM)

6 $0.60 $0.43
34 94111-08800 94111-08800 / WASHER, SPRING (8MM)

13 $0.53 $0.38
