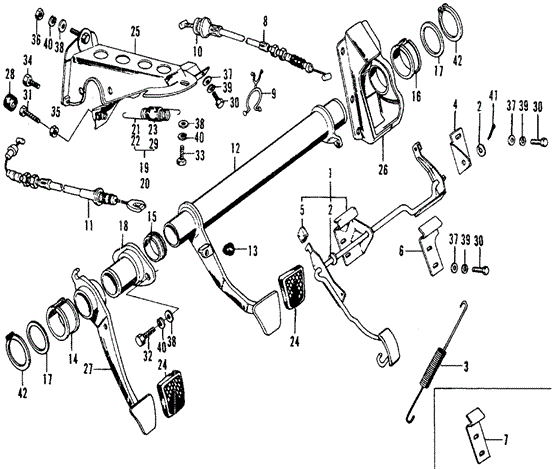

BRACKET, PEDAL in CHASSIS/MT PEDAL for 1975 Honda CIVIC 1200 HATCHBACK

BRACKET, PEDAL in CHASSIS/MT PEDAL for 1975 Honda CIVIC 1200 HATCHBACK #1
1
  • PEDAL, ACCELERATOR
24
  • COVER, PEDAL
2
  • WASHER, ACCELERATOR PEDAL - $1.50
5
  • STOPPER, ACCELERATOR PEDAL
37
  • WASHER, PLAIN (6MM) - $0.25
25
  • BRACKET, PEDAL
42
  • CIRCLIP, OUTER (32MM) - $0.76
2
  • WASHER, ACCELERATOR PEDAL - $1.50
34
  • BOLT, HEX. (8X20) - $0.64
33
  • BOLT, HEX. (8X16) - $0.60
39
  • WASHER, SPRING (6MM) - $0.43
38
  • WASHER, PLAIN (8MM) - $0.79
28
  • PAD, CLUTCH PEDAL
3
  • SPRING, ACCELERATOR PEDAL
19
  • SPRING ASSY., PEDAL RETURN
28
  • PAD, CLUTCH PEDAL
13
  • PAD, PEDAL STOPPER - $1.75
  • PAD, PEDAL STOPPER - $1.75
21
  • SPRING, PEDAL RETURN
30
  • BOLT, HEX. (6X16) - $0.56
37
  • WASHER, PLAIN (6MM) - $0.25
30
  • BOLT, HEX. (6X16) - $0.56
29
  • COVER, RETURN SPRING
17
  • WASHER, PEDAL
41
  • PIN, SPLIT (2.0X35) - $0.54
9
  • CLIP, THROTTLE WIRE
8
  • CABLE ASSY., THROTTLE
  • CABLE ASSY., THROTTLE
42
  • CIRCLIP, OUTER (32MM) - $0.76
30
  • BOLT, HEX. (6X16) - $0.56
11
  • CABLE ASSY., CLUTCH
36
  • NUT, HEX. (8MM) - $0.43
16
  • BUSH, MASTER CYLINDER BRACKET
23
  • COVER, RETURN SPRING
12
  • PEDAL, BRAKE
38
  • WASHER, PLAIN (8MM) - $0.79
18
  • HOLDER, CLUTCH PEDAL
32
  • BOLT, HEX. (8X12) - $0.47
40
  • WASHER, SPRING (8MM) - $0.38
15
  • BUSH, PEDAL HOLDER
14
  • BUSH B, PEDAL
27
  • PEDAL, CLUTCH
35
  • NUT, HEX. (6MM) - $0.20
  • NUT, HEX. (6MM) - $0.20
40
  • WASHER, SPRING (8MM) - $0.38
39
  • WASHER, SPRING (6MM) - $0.43
17
  • WASHER, PEDAL
20
  • SPRING, PEDAL RETURN
26
  • BRACKET, MASTER CYLINDER
10
  • SEAL, THROTTLE CABLE
40
  • WASHER, SPRING (8MM) - $0.38
37
  • WASHER, PLAIN (6MM) - $0.25
31
  • BOLT, HEX. (6X22) - $0.61
38
  • WASHER, PLAIN (8MM) - $0.79
39
  • WASHER, SPRING (6MM) - $0.43
22
  • SPRING, PEDAL RETURN
No. Part # Part # / Description Qty Req. List Price Price
1 17810-634-672 17810-634-672 / PEDAL, ACCELERATOR

1 - -
2 17812-SA7-010 17812-SA7-010 / WASHER, ACCELERATOR PEDAL

2 $2.08 $1.50
3 17814-634-000 17814-634-000 / SPRING, ACCELERATOR PEDAL

1 - -
5 17832-611-000 17832-611-000 / STOPPER, ACCELERATOR PEDAL

1 - -
8 17910-634-673 17910-634-673 / CABLE ASSY., THROTTLE

1 - -
8 17910-634-673 17910-634-673 / CABLE ASSY., THROTTLE

1 - -
9 17916-634-670 17916-634-670 / CLIP, THROTTLE WIRE

1 - -
10 17921-538-010 17921-538-010 / SEAL, THROTTLE CABLE

1 - -
11 22910-634-673 22910-634-673 / CABLE ASSY., CLUTCH

1 - -
12 46500-634-672 46500-634-672 / PEDAL, BRAKE

1 - -
13 46505-SA5-010 46505-SA5-010 / PAD, PEDAL STOPPER

1 $2.43 $1.75
13 46505-SA5-000 46505-SA5-000 / PAD, PEDAL STOPPER

1 $2.43 $1.75
14 46505-634-670 46505-634-670 / BUSH B, PEDAL

1 - -
15 46508-634-670 46508-634-670 / BUSH, PEDAL HOLDER

1 - -
16 46509-634-670 46509-634-670 / BUSH, MASTER CYLINDER BRACKET

1 - -
17 46513-634-670 46513-634-670 / WASHER, PEDAL

2 - -
18 46515-634-670 46515-634-670 / HOLDER, CLUTCH PEDAL

1 - -
19 46530-SA0-900 46530-SA0-900 / SPRING ASSY., PEDAL RETURN

1 - -
20 46530-634-671 46530-634-671 / SPRING, PEDAL RETURN

1 - -
21 46531-634-000 46531-634-000 / SPRING, PEDAL RETURN

1 - -
22 46531-634-671 46531-634-671 / SPRING, PEDAL RETURN

1 - -
29 46532-634-000 46532-634-000 / COVER, RETURN SPRING

1 - -
24 46545-SA7-000 46545-SA7-000 / COVER, PEDAL

2 - -
25 46590-634-671 46590-634-671 / BRACKET, PEDAL

1 - -
26 46595-634-671 46595-634-671 / BRACKET, MASTER CYLINDER

1 - -
27 46900-634-670 46900-634-670 / PEDAL, CLUTCH

1 - -
28 46904-579-300 46904-579-300 / PAD, CLUTCH PEDAL

1 - -
30 92101-06016-0H 92101-06016-0H / BOLT, HEX. (6X16)

7 $0.78 $0.56
31 92101-06022-0A 92101-06022-0A / BOLT, HEX. (6X22)

1 $0.85 $0.61
32 92101-08012-0H 92101-08012-0H / BOLT, HEX. (8X12)

2 $0.78 $0.47
33 92101-08016-0H 92101-08016-0H / BOLT, HEX. (8X16)

1 $0.83 $0.60
34 92101-08020-0A 92101-08020-0A / BOLT, HEX. (8X20)

3 $0.88 $0.64
35 94001-06200-0S 94001-06200-0S / NUT, HEX. (6MM)

1 $0.28 $0.20
35 94001-06200-0S 94001-06200-0S / NUT, HEX. (6MM)

1 $0.28 $0.20
36 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

7 $0.60 $0.43
37 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

4 $0.35 $0.25
38 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

13 $1.10 $0.79
39 94111-06800 94111-06800 / WASHER, SPRING (6MM)

4 $0.60 $0.43
40 94111-08800 94111-08800 / WASHER, SPRING (8MM)

12 $0.53 $0.38
41 94201-20350 94201-20350 / PIN, SPLIT (2.0X35)

1 $0.75 $0.54
42 94510-32000 94510-32000 / CIRCLIP, OUTER (32MM)

2 $1.05 $0.76
